Engine and Engine AggregatesSpecial Service Tools
|
Special Service Tools
|

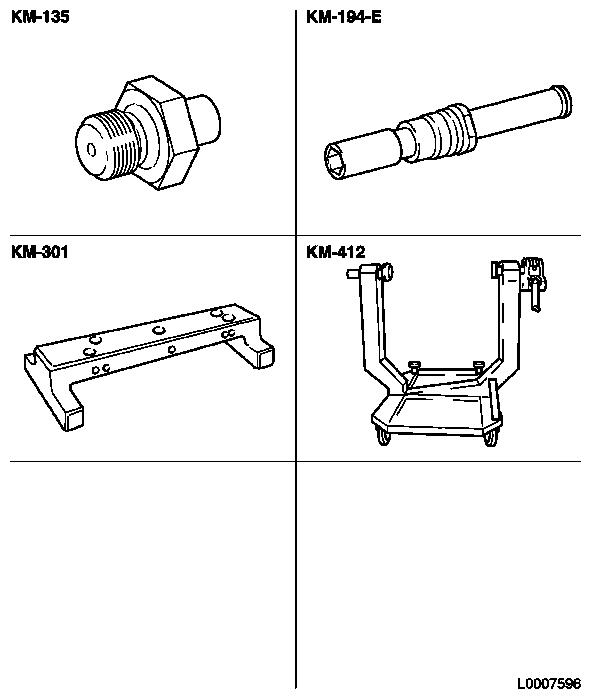

KM-135
|
Adapter
|
|
To measure engine oil pressure in conjunction with KM-498-B
|
|
KM-194-E
|
Spark Plug Key
|
|
To remove/install spark plug
|
|
KM-301
|
Gauge Bar
|
|
To check piston projection
|
|
KM-412
|
Engine Overhaul Stand
|
|
To hold the removed engine
|
|
|
|

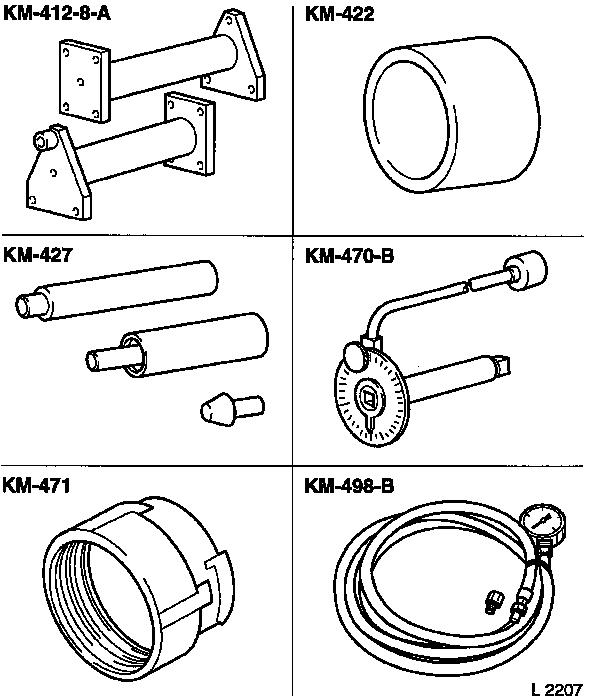

KM-412-8-A
|
Adapter
|
|
To hold engine in conjunction with KM-412
|
|
KM-422
|
Installer
|
|
To press seal ring in camshaft
|
|
KM-427
|
Remover / Installer
|
|
To install guide pins into engine block
|
|
KM-470-B
|
Angular Torque Wrench
|
|
To tighten cylinder head bolts
|
|
KM-471
|
Adapter
|
|
To check pressurised cooling system in conjunction with cooling
system tester
|
|
KM-498-B
|
Oil Pressure Manometer
|
|
To check engine oil pressure in conjunction with KM-135
|
|
|
|

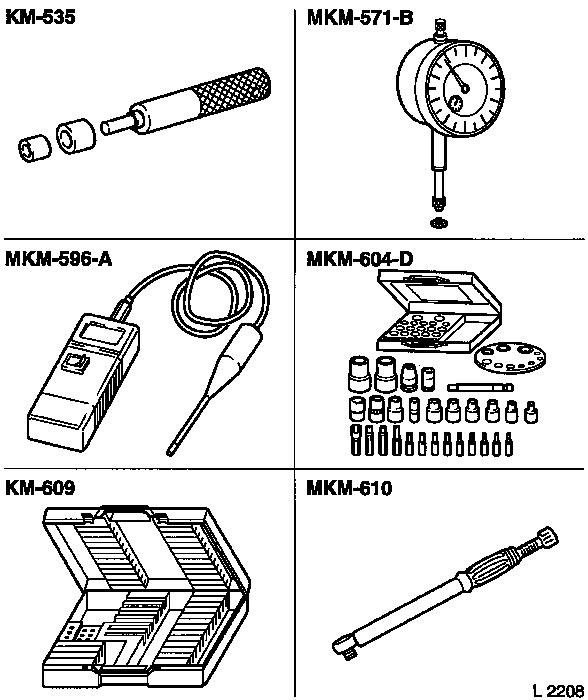

KM-535
|
Installer
|
|
To install crankshaft seal ring in conjunction with KM-635
|
|
MKM-571-B
|
Dial Gauge
|
|
To check various components
|
|
MKM-596-A
|
Temperature Gauge
|
|
To measure oil temperature
|
|
MKM-604-D
|
Torx Bit and Socket Set
|
|
To remove/install Torx bolts
|
|
KM-609
|
Electronic Kit I
|
|
To diagnose electrical and electronic systems
|
|
MKM-610
|
Torque Wrench, 1/2"
|
|
Range 30 – 130 Nm / 22 – 96 lbf. ft.
|
|
|
|
MKM-611
|
Torque Wrench, 3/8"
|
|
Range 10 – 60 Nm / 7 – 44 lbf. ft.
|
|
KM-635
|
Installer
|
|
To install rear crankshaft seal ring in conjunction with
KM-535
|
|

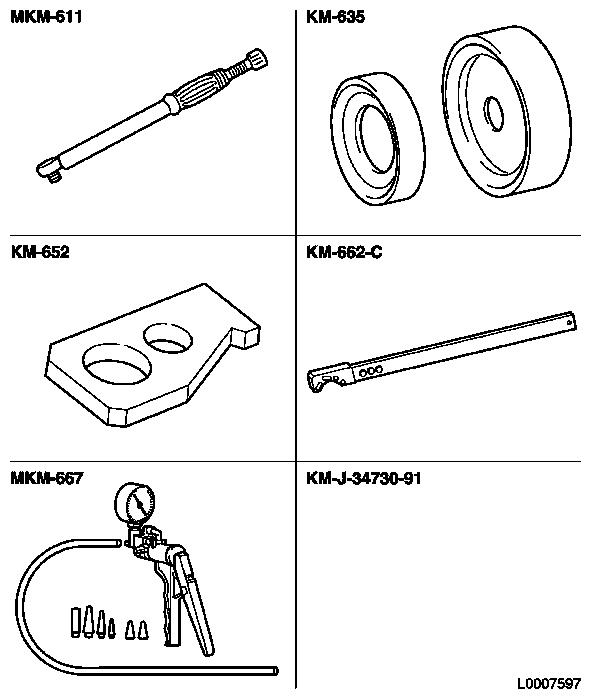

KM-652
|
Flywheel Locking Device
|
|
To lock flywheel or drive disc
|
|
KM-662-C
|
Holding Wrench
|
|
To hold toothed belt drive gear when removing and installing
fastening bolt
|
|

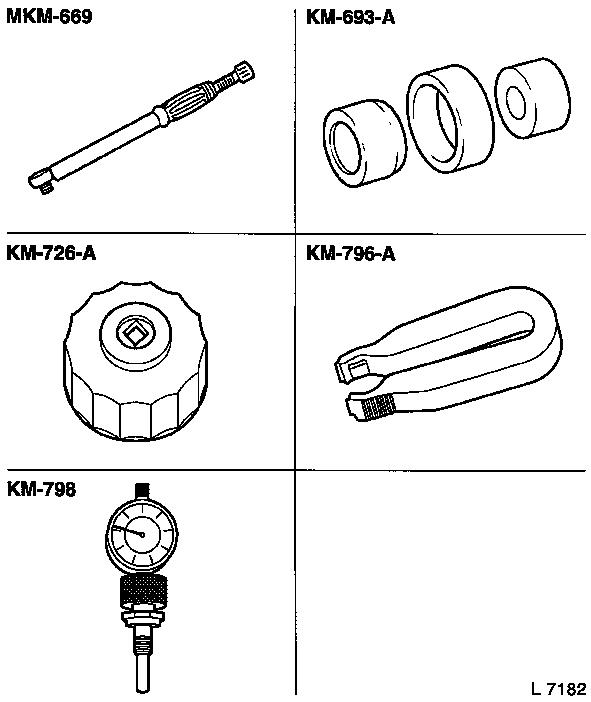

MKM-667
|
Pressure and Vacuum Pump
|
|
To check vacuum units for leaks
|
|
|
|
MKM-669
|
Torque Wrench, 1/2"
|
|
Range 50 – 300 Nm / 37 – 221 lbf. ft.
|
|
KM-693-A
|
Assembly Sleeves
|
|
To install crankshaft front seal ring
|
|
KM-726-A
|
Oil Filter Wrench
|
|
To remove/install the oil filter
|
|
KM-796-A
|
Remover
|
|
To open quick fittings for fuel lines
|
|
KM-798
|
Dial Gauge
|
|
To measure tooth backlash of balancer shaft unit
|
|
|
|

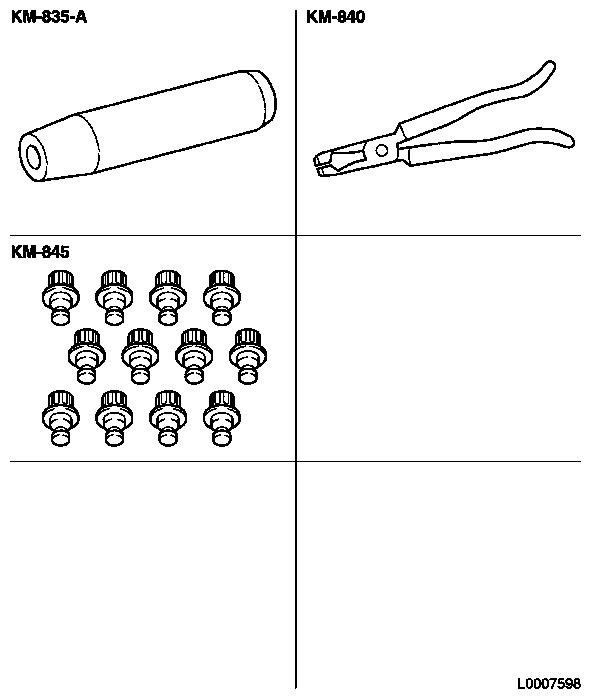

KM-835-A
|
Installer
|
|
To install the valve stem seal
|
|
KM-840
|
Remover
|
|
To remove valve stem seals
|
|
KM-845
|
Suction Device
|
|
To remove the hydraulic valve lifters
|
|
|
|

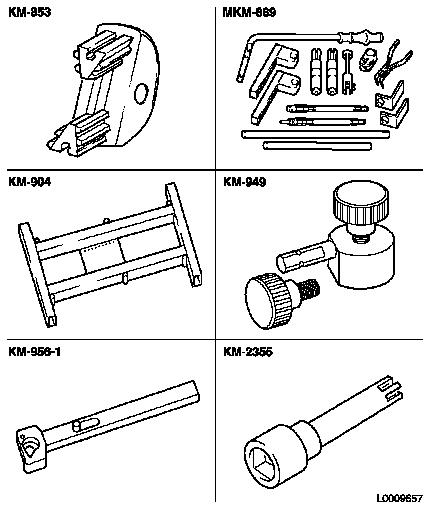

KM-853
|
Locking Tool
|
|
To lock the camshaft pulleys
|
|
MKM-889
|
Automatic Valve Spring Lever
|
|
To remove/install the valve stem seals (cylinder head
installed)
|
|
KM-904
|
Base Frame
|
|
To remove and install various vehicle components with additional
adapters
|
|
KM-949
|
Measurement Sensor
|
|
To measure in conjunction with KM-798
|
|
KM-956-1
|
Supporting strap
|
|
To hold the camshaft pulleys for the removal/tightening of the
fastening bolts in conjunction with KM-6347
|
|
KM-2355
|
Socket Wrench T55
|
|
To loosen/tighten cylinder head bolts
|
|
|
|

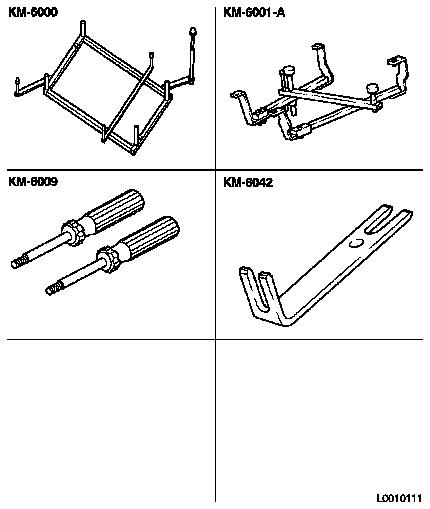

KM-6000
|
Centring Tool
|
|
To remove and install front axle in conjunction with KM-904
|
|
KM-6001-A
|
Engine Mount
|
|
To align engine to body in conjunction with KM-6173
|
|
KM-6009
|
Remover/Installer
|
|
To remove/install ignition module
|
|
KM-6042
|
Remover
|
|
To remove cables on transmission from shift lever assembly
(F23)
|
|
|
|

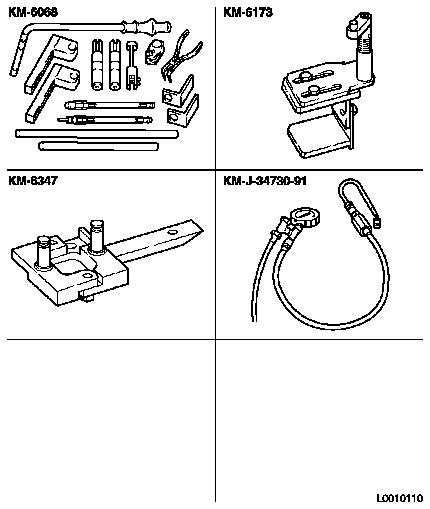

KM-6068
|
Automatic Valve Spring Lever
|
|
To remove/install the valve stem seals (cylinder head
installed)
|
|
KM-6173
|
Engine Mount
|
|
To support engine on front axle body in conjunction with
KM-6001-A
|
|
KM-6347
|
Support
|
|
To hold the camshaft pulleys for the removal/tightening of the
fastening bolts in conjunction with KM-956-1
|
|
KM-J-34730-91
|
Pressure Tester
|
|
To check fuel pressure
|
|
|
|
|
