Rear Axle and Rear Wheel Suspension (Axle offset): Repair Instructions

Make

Vauxhall

Model

Astra H

Section

Repair Instructions › Axle offset

Rear Axle and Rear Wheel SuspensionAxle offset

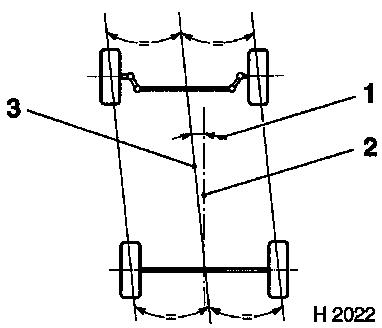

Axle offset Axle offset is a angular misalignment (1) between the axis of symmetry (3) and the geometric driving axis (2). The angle is positive if the axis of symmetry deviates from the geometric driving axis in an anti-clockwise direction. The axle offset is generally given in degrees. If the wheel base is known, length data is also possible.
