Wheel centre plane

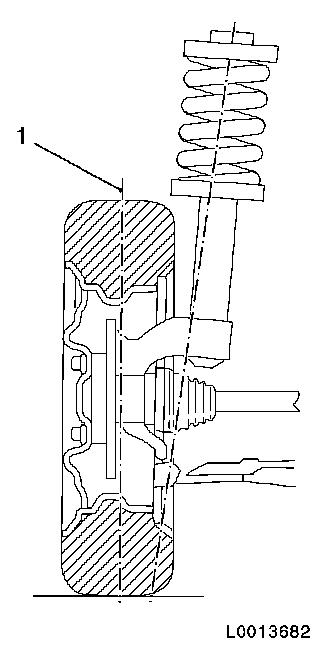

The wheel centre plane (1) is the centre plane of the tyre vertical to the wheel axis of rotation.

 Object Number: 8036358 Size: DEFAULT
