Rear Window Wiper Blade Replacement (Wipers and Washers)

Make

Vauxhall

Model

Astra J

Section

Wipers and Washers › Repair Instructions › Rear Window Wiper Blade Replacement

Body SystemsRear Window Wiper Blade Replacement

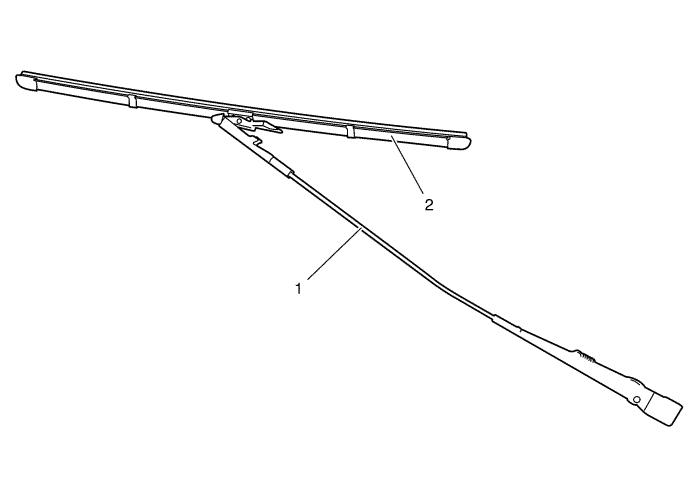

Rear Window Wiper Blade Replacement Callout Component Name Preliminary Procedure Raise the rear window wiper arm to the full up position (service up). 1 Rear Window Wiper Arm 2 Rear Window Wiper Blade Procedure 1. Discard and replace if rubber appears worn or does not wipe the rear window clean. 2. Release the wiper blade straight from the wiper arm.

05 Body & interior
