Astra J

Windshield Wiper Motor Replacement

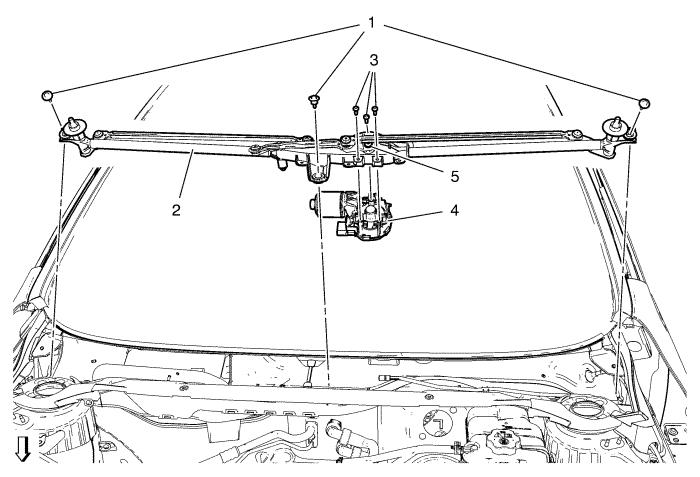

2192056




Callout
Component Name

Preliminary Procedures

1. Remove plenum water deflector - both sides. Refer to . Plenum Water Deflector Replacement - Left Side
2. Remove plenum water deflector - center. Refer to . Plenum Water Deflector Replacement - Center
3. Remove dash upper extension panel opening cover. Refer to . Dash Upper Extension Panel Opening Cover Replacement


1
Windshield Wiper Transmission Bolt (Qty: 3)

Caution: Refer to Fastener Caution .

Tighten
9 N·m (80 lb in)

2
Windshield Wiper Transmission

3
Windshield Wiper Motor Bolt (Qty: 3)

Tighten
10 N·m (89 lb in)

4
Windshield Wiper Motor

5
Windshield Wiper Motor Nut
