Windshield Wiper Arm Replacement (Wipers and Washers)

Make

Vauxhall

Model

Astra J

Section

Wipers and Washers › Repair Instructions › Windshield Wiper Arm Replacement

Body SystemsWindshield Wiper Arm Replacement

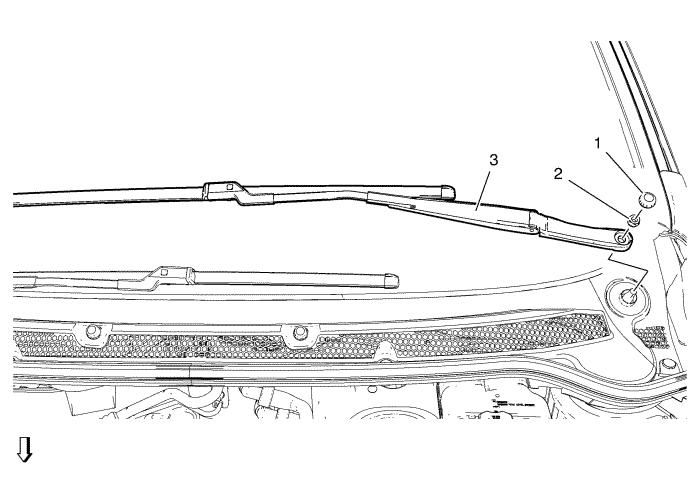

Windshield Wiper Arm Replacement Callout Component Name 1 Windshield Wiper Arm Finish Cap Procedure Use a small flat-bladed tool to remove finish cap. 2 Windshield Wiper Arm Nut Caution: Refer to Fastener Caution . Tighten 28 N·m (21 lb ft) 3 Windshield Wiper Arm Procedure Use the wiper arm BO-49385   puller if the arm fails to release from the wiper motor pivot shaft. Special Tools BO-49385   Wiper Arm Puller For equivalent regional tools, refer to Special Tools .
