Equalizer Beam Center Link Heat Shield Replacement (Rear Suspension)

Make

Vauxhall

Model

Astra J

Section

Rear Suspension › Repair Instructions › Equalizer Beam Center Link Heat Shield Replacement

SuspensionEqualizer Beam Center Link Heat Shield Replacement

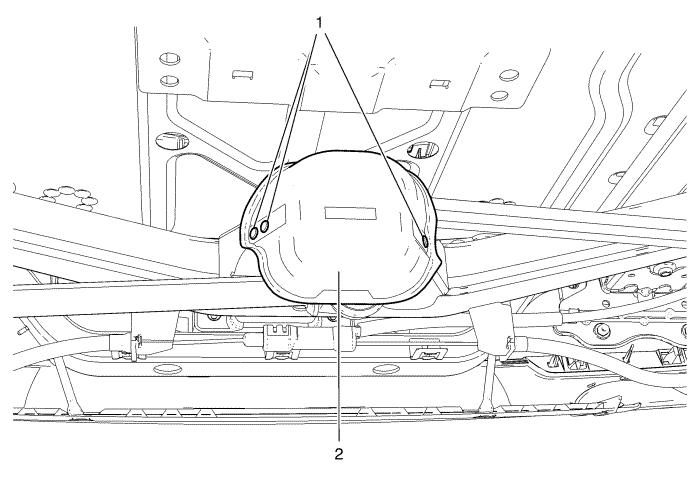

Equalizer Beam Center Link Heat Shield Replacement Callout Component Name Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . 1 Equalizer Beam Center Link Heat Shield Rivet (Qty: 3). Caution: Refer to Fastener Caution . Procedure Drill out the rivets with suitable drill to remove the heat shield. 2 Equalizer Beam Center Link Heat Shield
