Equalizer Beam Support Replacement (Rear Suspension)

Make

Vauxhall

Model

Astra J

Section

Rear Suspension › Repair Instructions › Equalizer Beam Support Replacement

SuspensionEqualizer Beam Support Replacement

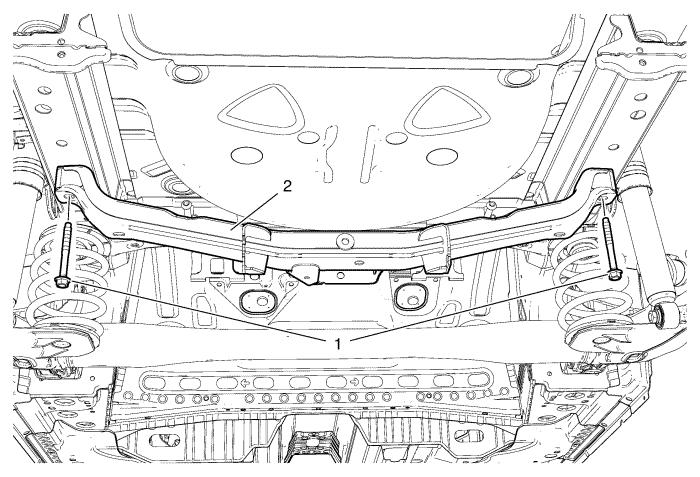

Equalizer Beam Support Replacement Callout Component Name Preliminary Procedures 1. Raise and support the vehicle. Refer to . Lifting and Jacking the Vehicle 2. Remove the tire and wheel assemblies. Refer to . Tire and Wheel Removal and Installation 3. For vehicles with electric parking brake, remove parking brake cable from support. Refer to . Parking Brake Cable Replacement 4. Remove the equalizing beam center link. Refer to . Equalizer Beam Center Link Replacement 1 Equalizer Beam Support Bolts (Qty: 2) Caution: Refer to Fastener Caution . Tighten 100 N·m (74 lb ft) 2 Equalizer Beam Support
