Removing and installing bevel box, vehicles with turbo diesel engine and particulate filter, (Golf 2005 ?, Golf 2009 ?, Passat 2 > < Four-wheel drive - transporting gearbox

Golf Mk6

Checking gear oil
Checking gear oil
Special tools and workshop equipment required

t  Torque wrench -V.A.G 1331-
  W00-0427
t  Socket bit -3357- for oil filler plug with multi-point socket head bolt
Gear oil → Electronic parts catalogue „ETKA“.
–  Remove noise insulation → General body repairs, exterior; Rep. gr.50.
  W00-0303
–  To check gear oil, remove oil plug -arrow-.
Oil level is correct when gearbox is filled to lower edge of filler hole.
–  Screw in plug -arrow- with new seal.
–  Tighten bolt -arrow- to specified torque → Item.
When filling with oil, note the following:
–  Remove oil plug -arrow-.
–  Fill with gear oil to lower edge of filler hole.
–  Screw in plug -arrow- with new seal.
–  Tighten bolt -arrow- to specified torque → Fig..
–  Install noise insulation → General body repairs, exterior; Rep. gr.50.

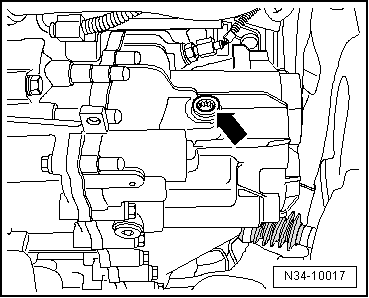

  N34-10017
Various versions of oil filler and drain plugs
I - Oil filler or oil drain plug with multi-point socket head 45 Nm
II - Oil filler or oil drain plug with hexagon socket head 30 Nm
  N34-10041

Removing and installing bevel box, vehicles with turbo diesel engine and particulate filter, (Golf 2005 ?, Golf 2009 ?, Passat 2 > < Four-wheel drive - transporting gearbox
