145 electrical system diagnosisCheck components
CHECK COMPONENTS
N.B.: Here, only the specific components for the AUTOMATIC CONDITIONER are mentioned: those shared with the MANUAL CONDITIONER are to be found in Section 32A.

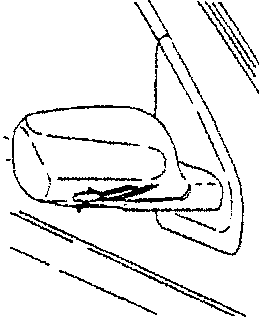

Outside air temperature sensor Q24
| F2 SPECIFICATIONS | |
|---|---|
| Resistance at 25°C (with operating range from -30°C to +50°C) | 10 kOhm |

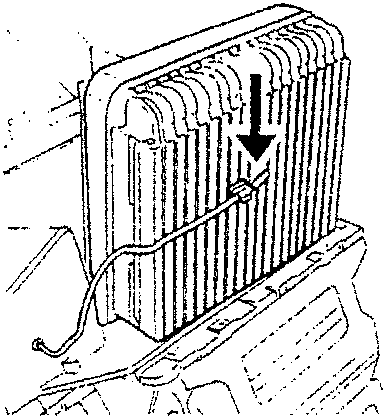

Antifrost sensor Q26
| F4 SPECIFICATIONS | |
|---|---|
| Resistance at 25°C (with operating range from -5°C to +25°C) | 10 kOhm |

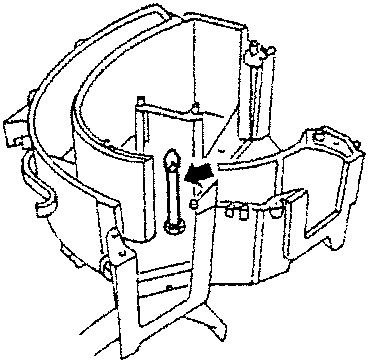

Treated air temperature sensor Q25
| F6 SPECIFICATIONS | |
|---|---|
| Resistance at 25°C (with operating range from 0°C to +80°C) | 10 kOhm |
