145 electrical system diagnosisComponents and Connectors

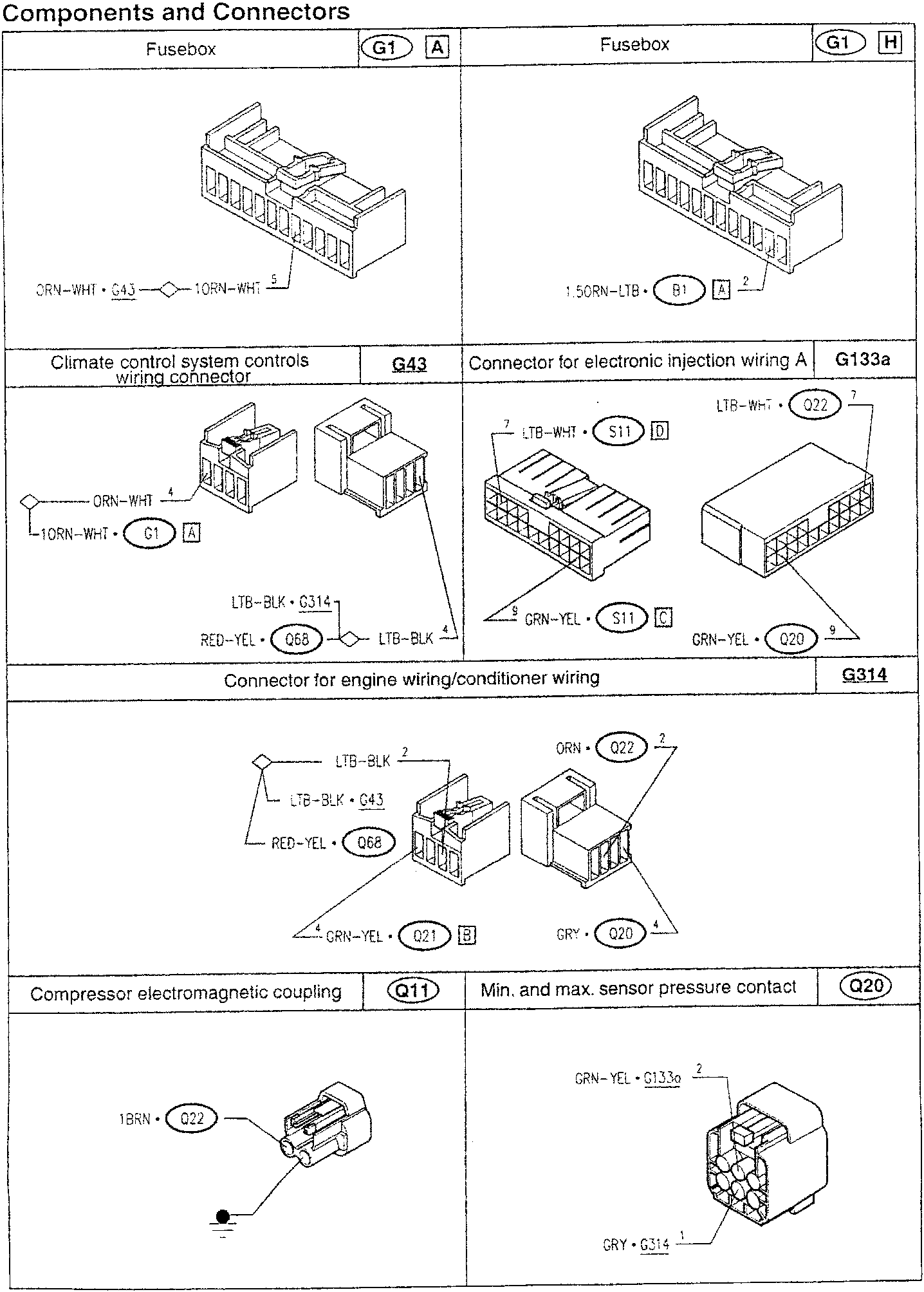

Components and Connectors
| Fusebox | G1 A | Fusebox | G1 H |
|---|---|---|---|
|
|||
| Climate control system controls wiring connector | G43 | Connector for electronic injection wiring A | G133a |
|---|---|---|---|
| Connector for engine wiring/conditioner wiring | G314 |
|---|---|
| Compressor electromagnetic coupling | Q11 | Min. and max. sensor pressure contact | Q20 |
|---|---|---|---|
