Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001)01 · 145 electrical system diagnosis
01 · Diagnostics

Components and Connectors (continued)

Make
Alfa Romeo
Model
145/146 Electrical System Diagnosis Manual, Volume 3
Year
1994–2001
Section
Automatic Air Conditioner › Components and Connectors (continued)
145 electrical system diagnosisComponents and Connectors (continued)

Components and Connectors (continued)

  • RH front door wiring connector – G21
  • Climate control system wiring connector – G43
  • LH engine compartment earth – G53b
  • Earth under LH dashboard – G148b

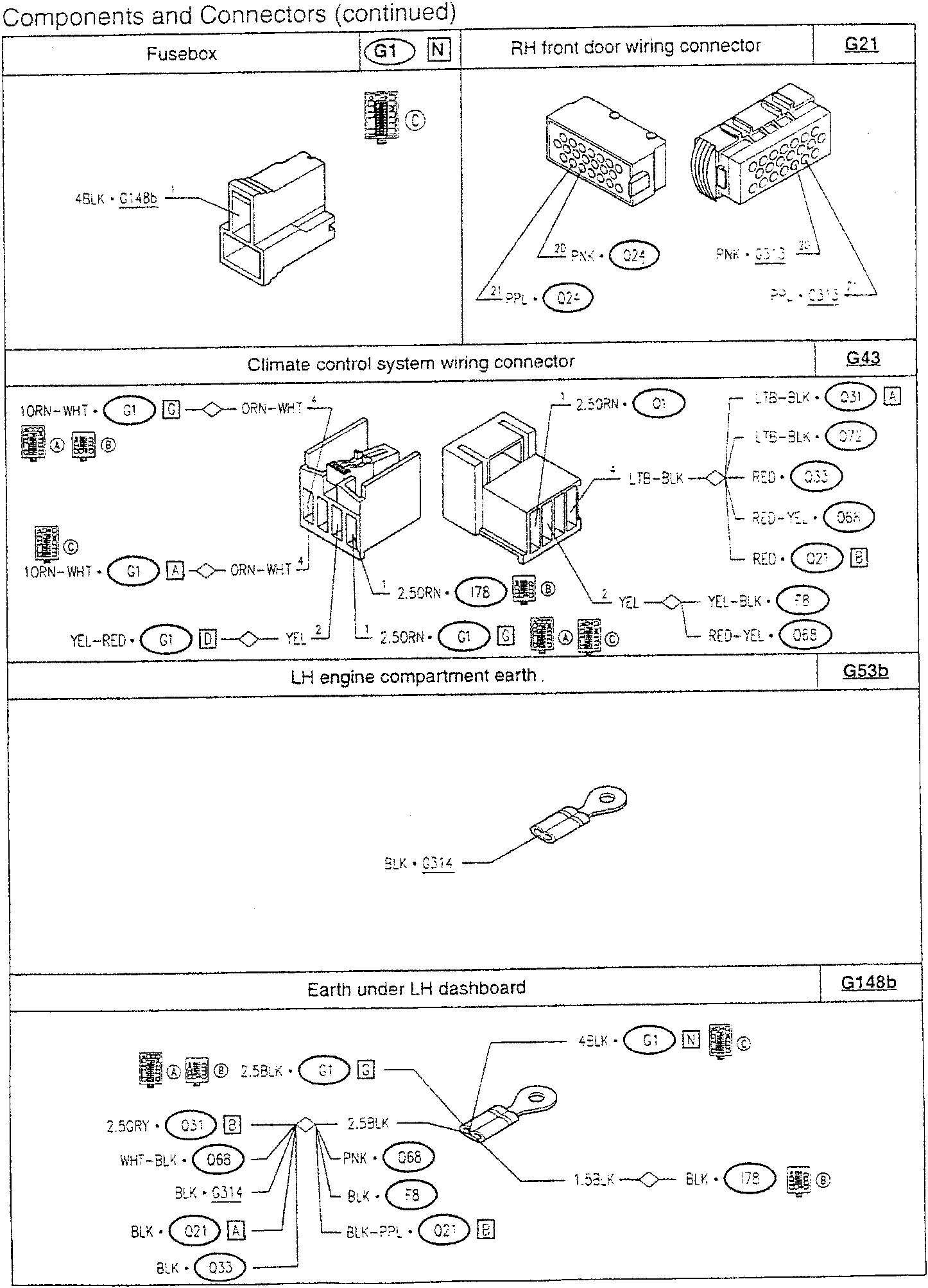

RH front door wiring connector – G21; Climate control system wiring connector – G43; LH engine compartment earth – G53b; Earth under LH dashboard – G148b
