Mixing control actuator Q30
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Automatic Air Conditioner › Mixing control actuator Q30
145 electrical system diagnosisMixing control actuator Q30

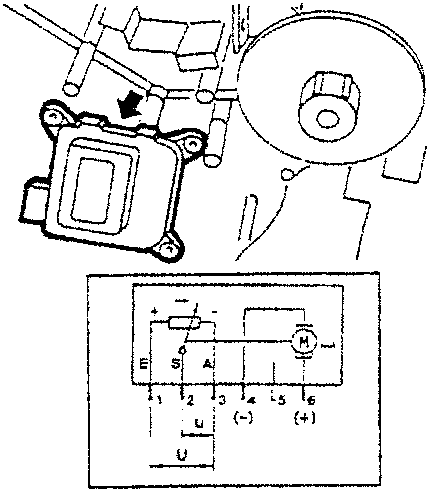

Mixing control actuator Q30
| SPECIFICATIONS | |
|---|---|
| Total angle of rotation between max. heat and max. cool | 62° |
| Ratio u/U for max. heat | 0.707 |
| Ratio u/U for max. cool | 0.26 |

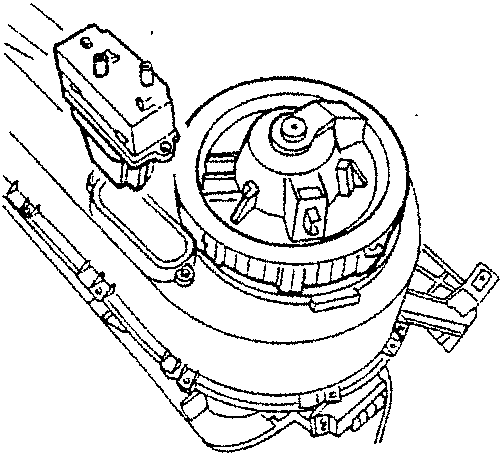

Mixing control actuator Q31
| SPECIFICATIONS | |
|---|---|

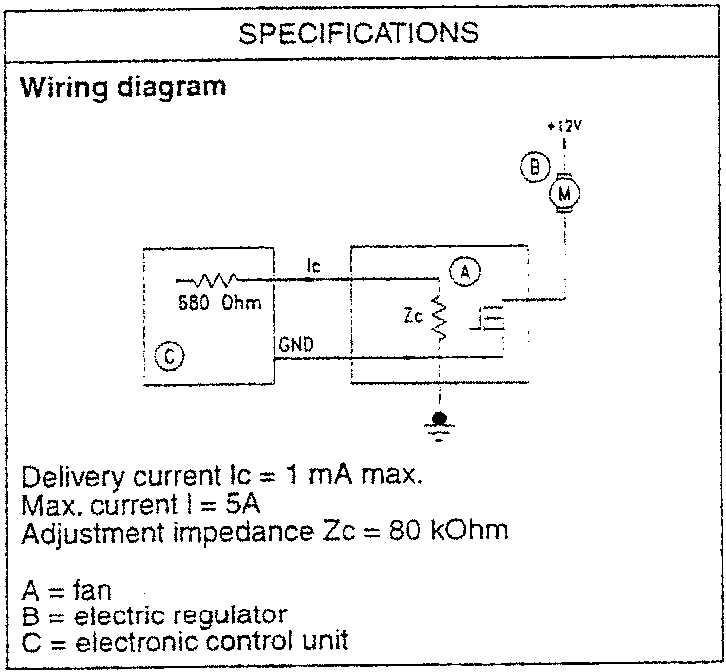

| Wiring diagram | |
Delivery current Ic = 1 mA max.
Max. current I = 5A
Adjustment impedance Zc = 80 kOhm
A = fan
B = electric regulator
C = electronic control unit
