LOCATION OF COMPONENTS (petrol versions)
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Automatic Air Conditioner › LOCATION OF COMPONENTS (petrol versions)
145 electrical system diagnosisLOCATION OF COMPONENTS (petrol versions)

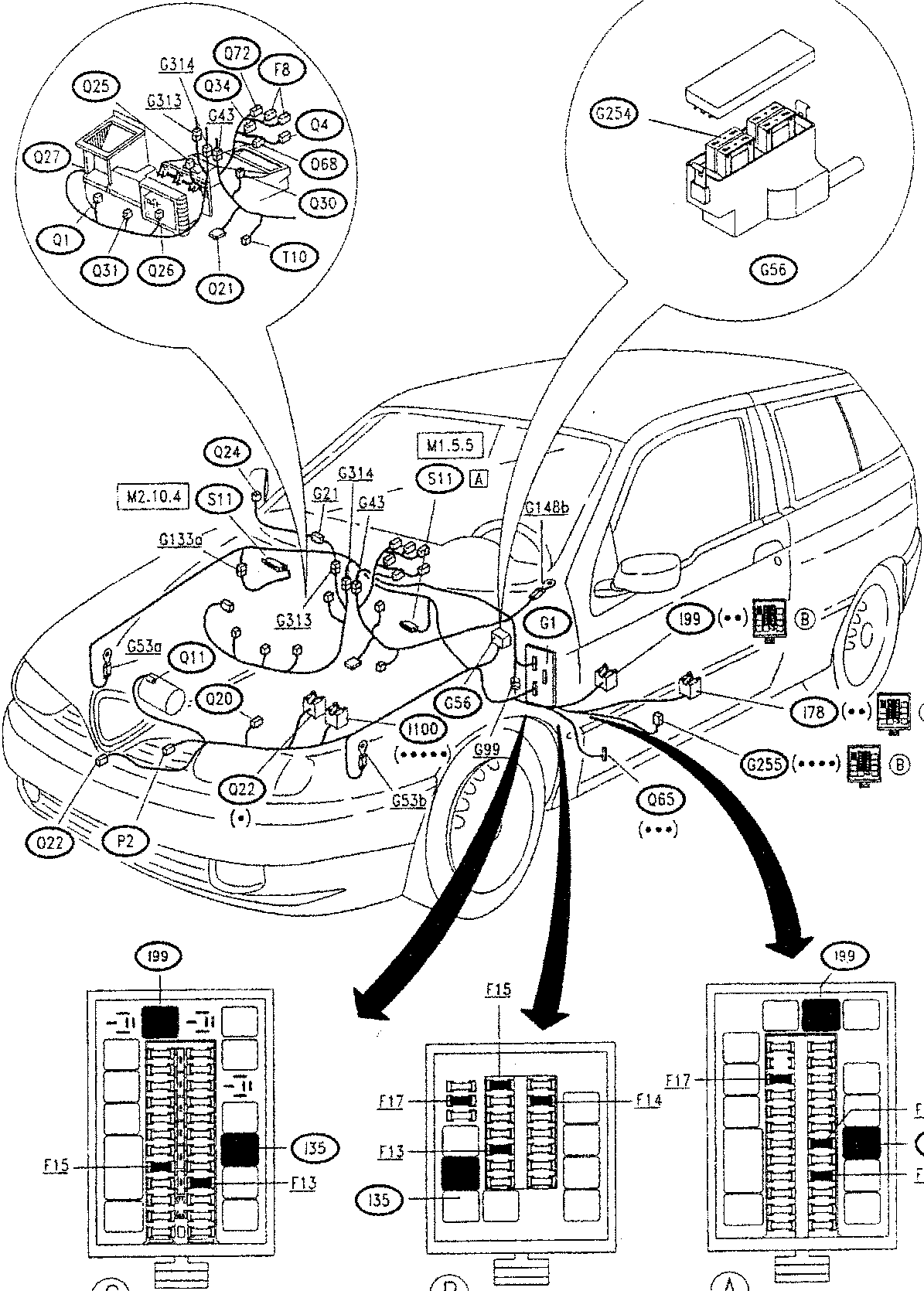

LOCATION OF COMPONENTS (petrol versions) – diagram from the 145 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.
LOCATION OF COMPONENTS (petrol versions)
(•) grey base
(••) yellow base
(•••) red fuseholder
(••••) green fuseholder
(•••••) black base
