145 electrical system diagnosisChecking Components

Checking Components

Branch terminal box G56 (except T.SPARK and JTD)

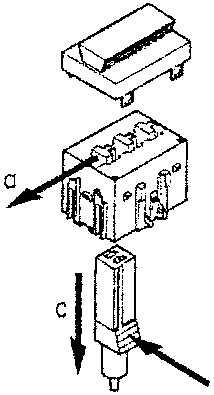

Connector removal steps

Removing a connector

  1. move the "secondary-lock" to the left
  2. press the release catch of the connector to be removed
  3. remove the connector pulling downwards

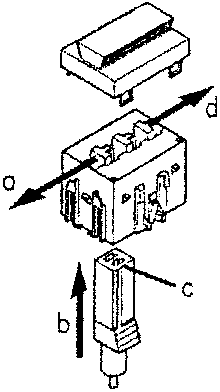

Connector insertion steps

Inserting a connector

  1. position the "secondary-lock" at the left
  2. insert the connector
  3. press the connector until it catches in the tooth
  4. move the "secondary-lock" to the right

General supply fuse G393 (except T.SPARK and JTD)

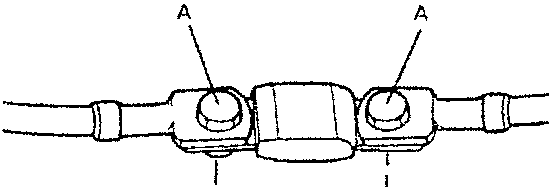

MEGA general supply protection fuse with screws A

"MEGA" general supply protection fuse: (150A).

In the event of replacement tighten the two fastening screws (A), proceeding with care, to a torque of appr. 25 Nm, without forcing the fuse excessively to avoid damaging the copper element.
