COMPONENTS AND CONNECTORS (cont.d)
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Power Supply › COMPONENTS AND CONNECTORS (cont.d)
145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)
COMPONENTS AND CONNECTORS (cont.d)

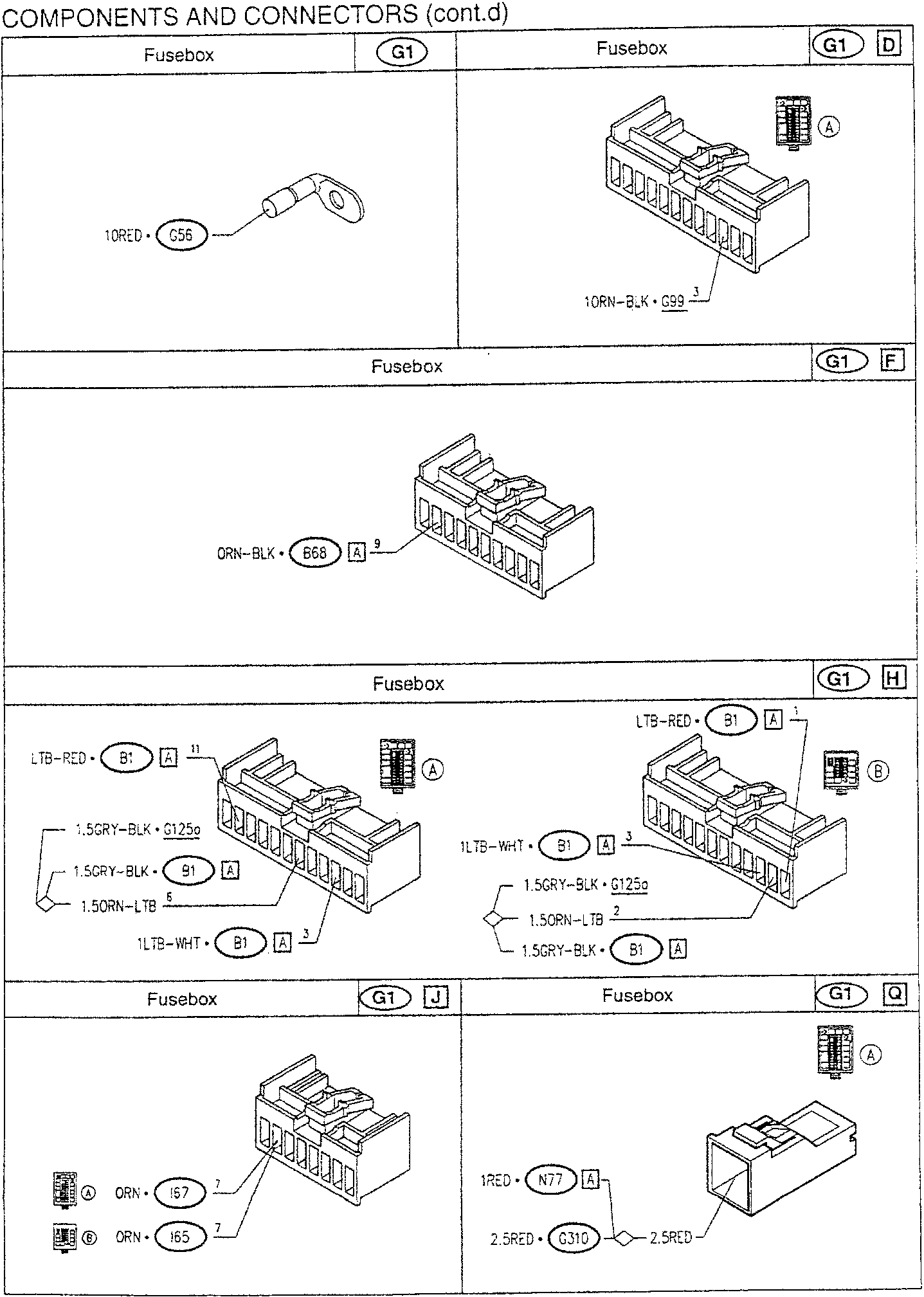

| Fusebox | G1 | Fusebox | G1 D |
|---|---|---|---|
| 10RED • G56 | 10RN-BLK • C993 | A |
| Fusebox | G1 F |
|---|---|
| ORN-BLK • B689 | A |
| Fusebox | G1 H | ||||||
|---|---|---|---|---|---|---|---|
| LTB-RED • B111 | 1.5GRY-BLK • G125o | 1.5GRY-BLK • B13 | 1LTB-WHT • B13 | 1.5GRY-BLK • G125o | 1.5ORN-LTB2 | 1.5GRY-BLK • B13 | LTB-RED • B11 |
| Fusebox | G1 J | Fusebox | G1 Q | |
|---|---|---|---|---|
| ORN • I677 | ORN • I657 | 1RED • N77A | 2.5RED • G310 | 2.5RED |
