COMPONENTS AND CONNECTORS (JTD version)

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Power Supply › COMPONENTS AND CONNECTORS (JTD version)

145 electrical system diagnosisCOMPONENTS AND CONNECTORS (JTD version)

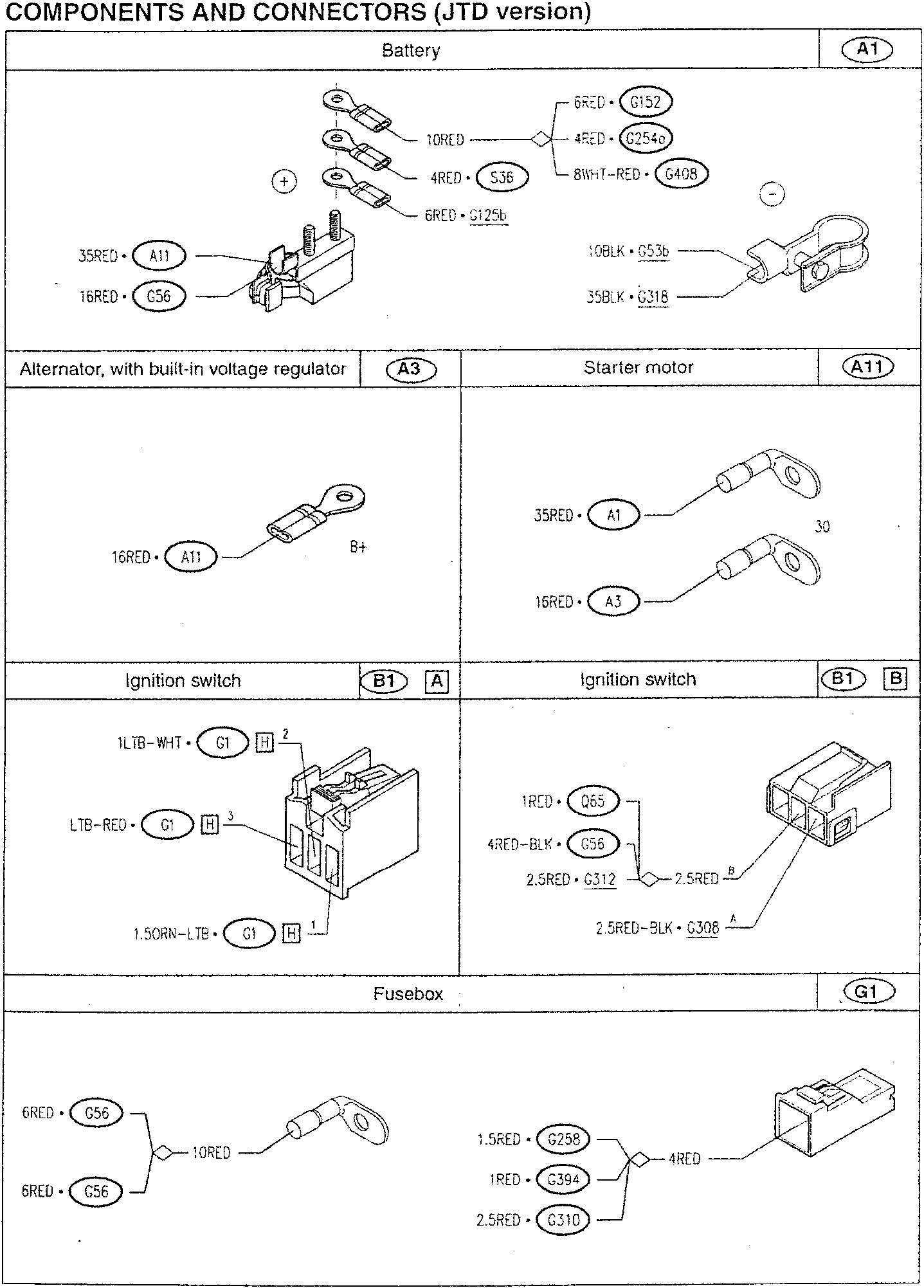

COMPONENTS AND CONNECTORS (JTD version)

Battery		A1
		A1
			6RED • G152	4RED • G254a	8WHT-RED • G408
			10RED	4RED • S36	6RED • G125b

Alternator, with built-in voltage regulator	A3	Starter motor	A11
				16RED • A11	B+	35RED • A1	30	16RED • A3

Ignition switch	B1 A	Ignition switch	B1 B
				1LTB-WHT • G1	H 2	1RED • Q65	4RED-BLK • G56	2.5RED • G312	2.5.RED B	2.5.RED-BLK • G308	A

Fusebox	G1
		G1
			6RED • G56	10RED	1.5RED • G258	4RED	1RED • G394	2.5RED • G310
