COMPONENTS AND CONNECTORS (contd.)

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Power Supply › COMPONENTS AND CONNECTORS (contd.)

145 electrical system diagnosisCOMPONENTS AND CONNECTORS (contd.)

COMPONENTS AND CONNECTORS (contd.)

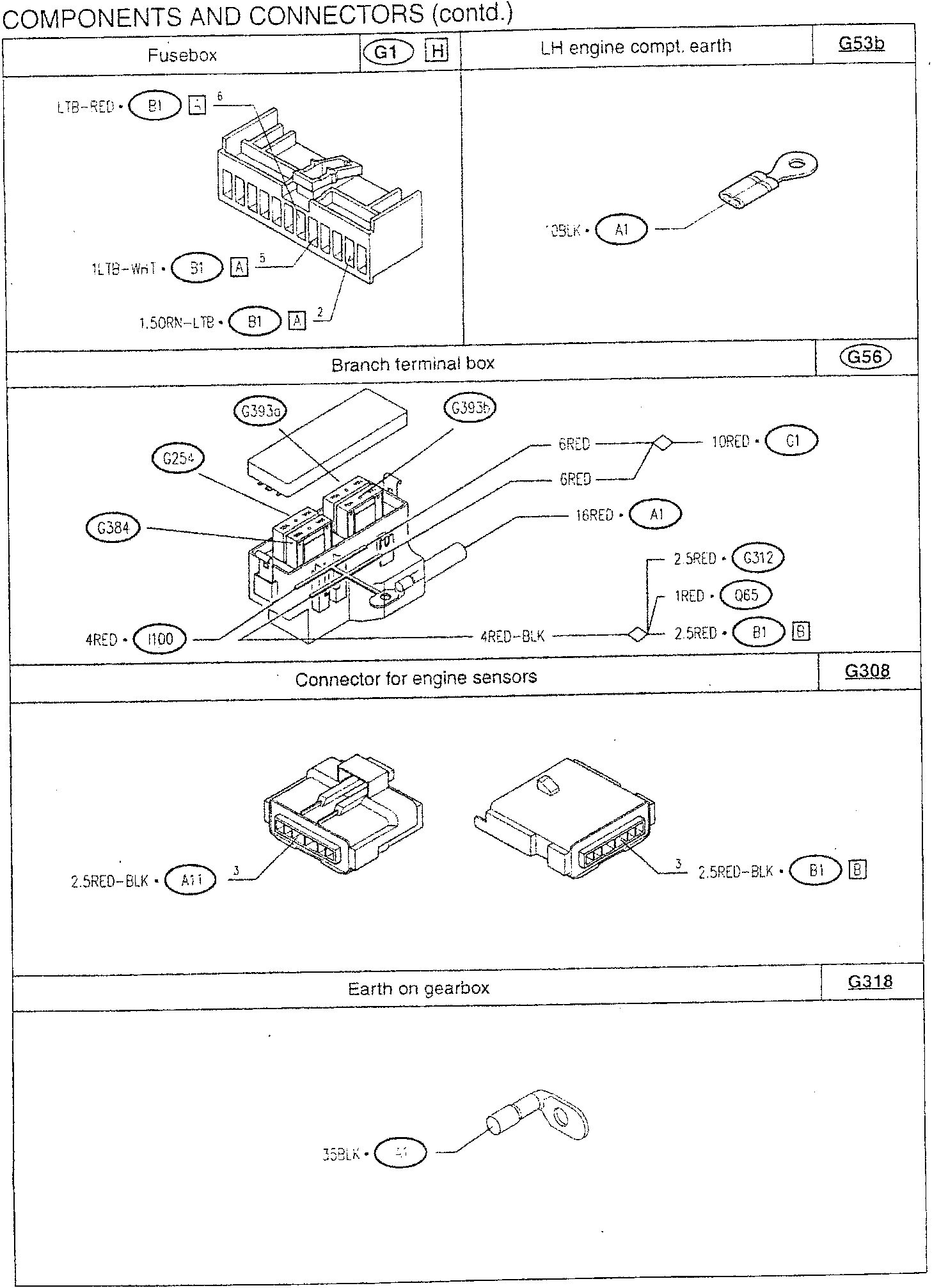

Fusebox	G1 H	LH engine compl. earth	G53b
LTB-RED • B1 6 1LTB-Wht • S1 A 5 1.5ORN-LTB • B1 A 2	G1 H	35BLK • A1	G53b

Branch terminal box	G56
G393a G393b G254 G384 4RED • 1100	G56
		6RED — 10RED • G1 6RED — 16RED • A1 2.5RED • G312 1RED • Q65 2.5RED • B1 B

Connector for engine sensors	G308
2.5RED-BLK • A11 3 2.5RED-BLK • B1 B 3	G308

Earth on gearbox	G318
35BLK • A1	G318
