145 electrical system diagnosisCOMPONENTS AND CONNECTORS (contd.)

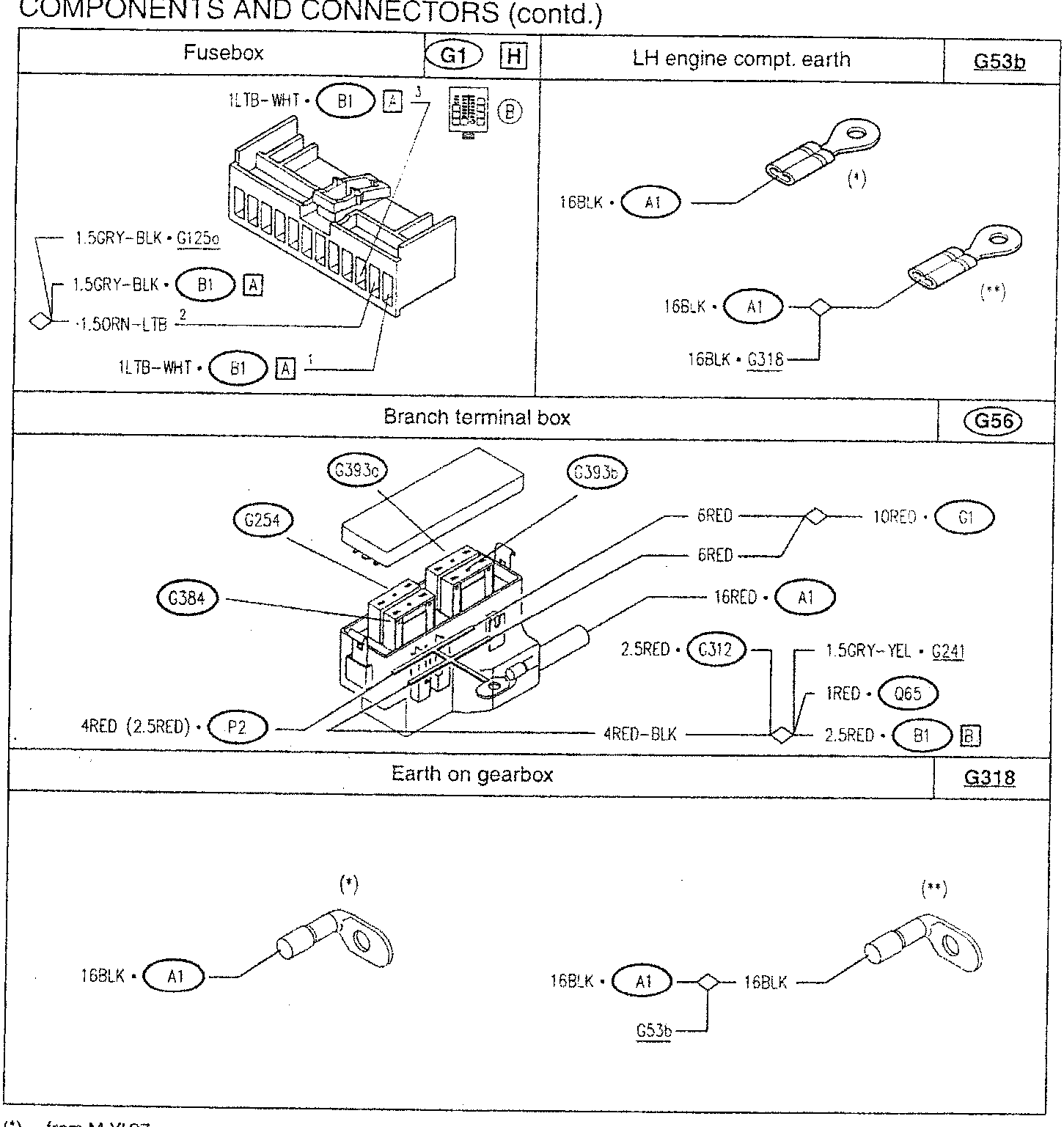

COMPONENTS AND CONNECTORS (contd.)

Fusebox	G1 H	LH engine compt. earth	G53b
	G1 H	LH engine compt. earth	G53b
				1LTB-WHT • B1 A 3	16BLK • A1	16BLK • A1	16BLK • G318
1.5GRY-BLK • G125a	1.5GRY-BLK • B1 A	1.5ORN-LTB 2	1LTB-WHT • B1 A 1

Branch terminal box	G56
	G56
		6RED • G393c	6RED • G393b	10RED • G1	16RED • A1	2.5RED • C312	1.5GRY-YEL • G241	1RED • Q65	2.5RED • B1 B
4RED (2.5RED) • P2	4RED-BLK

Earth on gearbox	G318
	G318
		16BLK • A1	16BLK • A1	16BLK	G53b

(*) from M.Y. '97

(**) from M.Y. '98
