COMPONENTS AND CONNECTORS (contd.)

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Power Supply › COMPONENTS AND CONNECTORS (contd.)

145 electrical system diagnosisCOMPONENTS AND CONNECTORS (contd.)

COMPONENTS AND CONNECTORS (contd.)

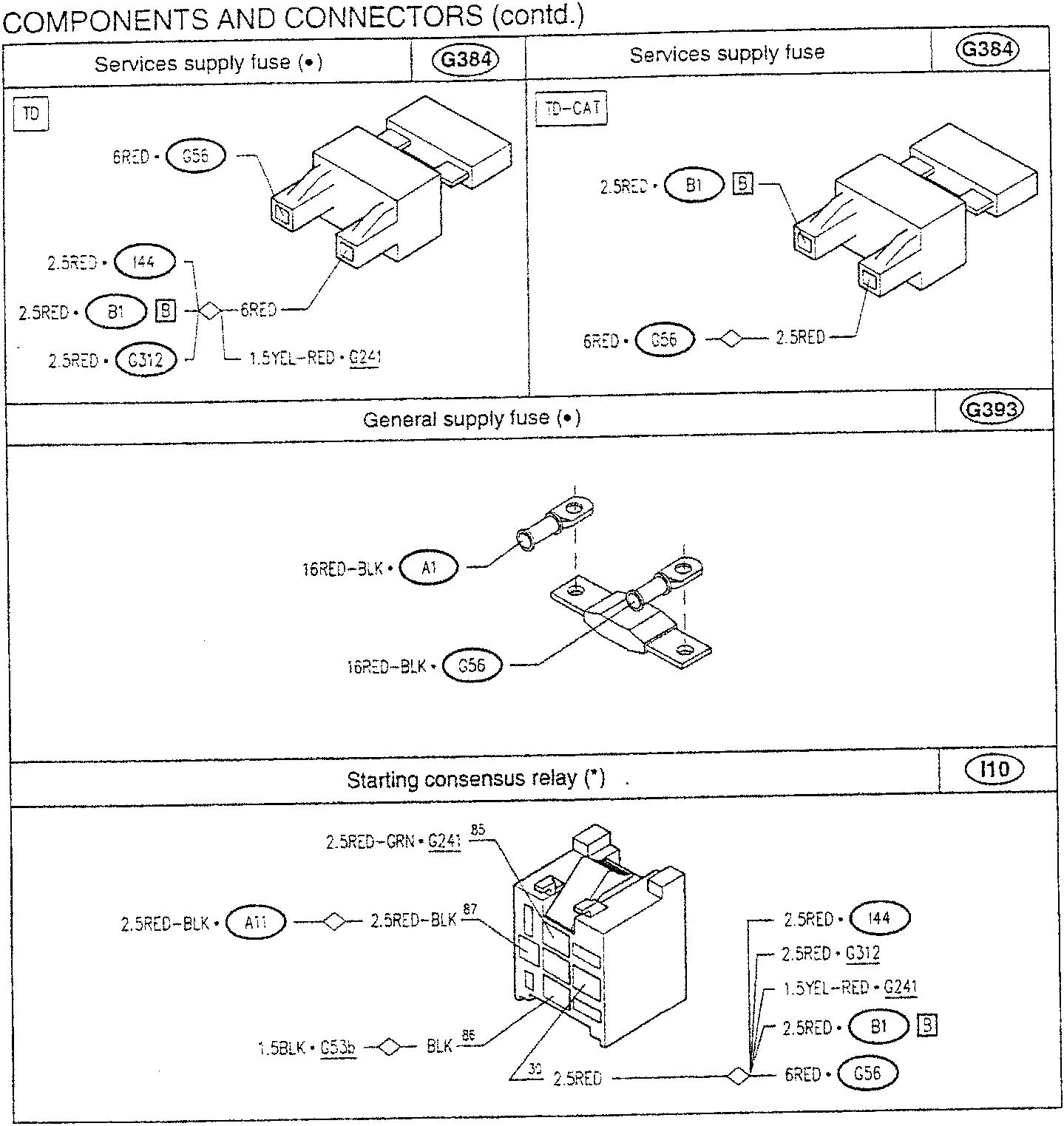

Services supply fuse (•)	G384	Services supply fuse	G384
TD	6RED • G56	TD-CAT	2.5RED • B1 B
				2.5RED • I44	6RED • G56	2.5RED
2.5RED • B1 B	6RED	1.5YEL-RED • G241	6RED • G56	2.5RED
2.5RED • G312

General supply fuse (•)	G393
16RED-BLK • A1	16RED-BLK • G56

Starting consensus relay (*)	I10
2.5RED-GRN • G241 85	2.5RED • I44
2.5RED-BLK • A11	2.5RED • G312
2.5RED-BLK 87	1.5YEL-RED • G241
1.5BLK • G53b	2.5RED • B1 B
BLK 86	6RED • G56
3C 2.5RED

(*) Versions without ALFA ROMEO CODE, but with anti-theft system

(•) Variant from chassis no....

01 Diagnostics
