COMPONENTS AND CONNECTORS (contd.)

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Power Supply › COMPONENTS AND CONNECTORS (contd.)

145 electrical system diagnosisCOMPONENTS AND CONNECTORS (contd.)

COMPONENTS AND CONNECTORS (contd.)

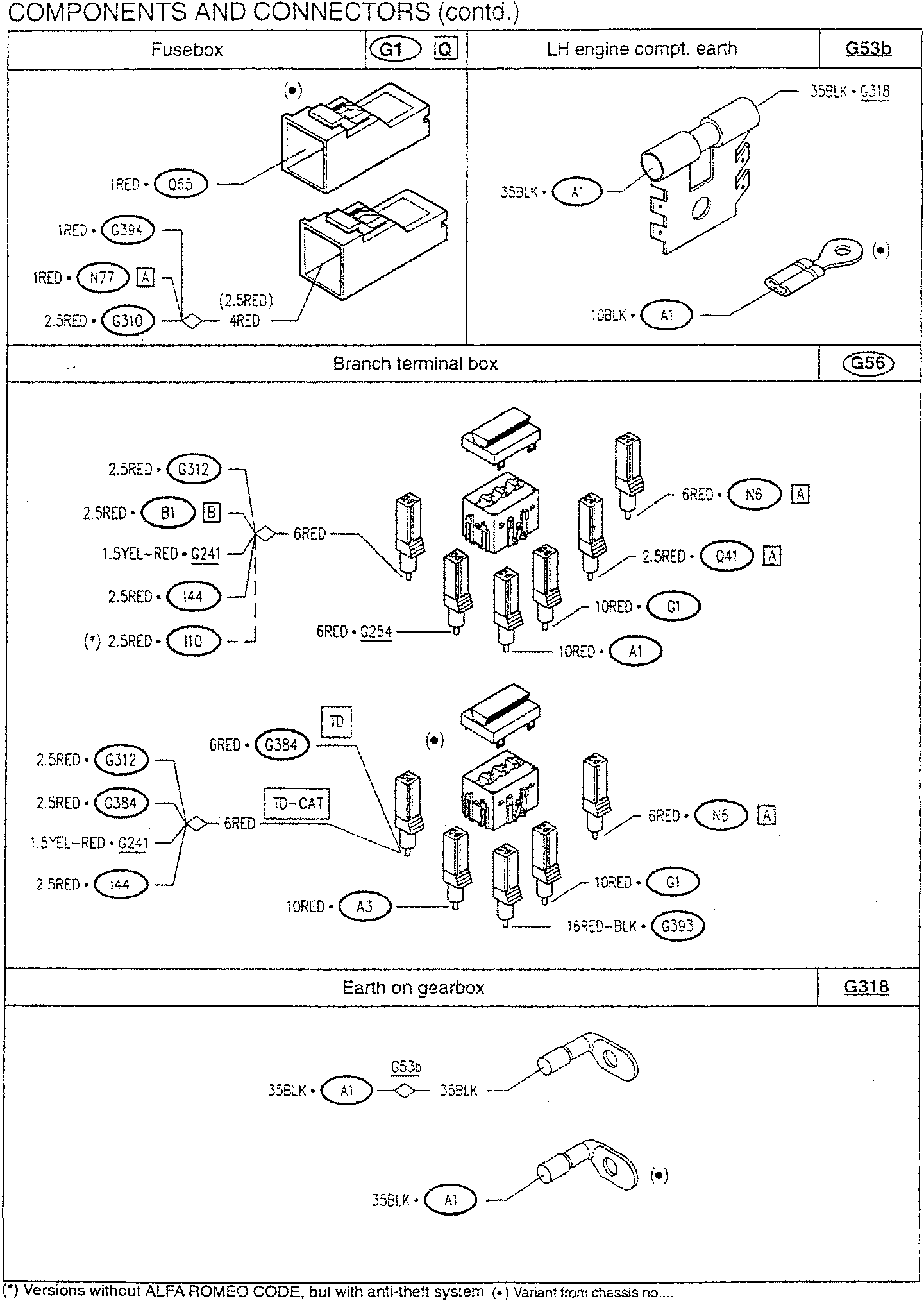

Fusebox	G1 Q	LH engine compt. earth	G53b
				35BLK • G318	10BLK • A1

Branch terminal box

G56
				6RED • G254	16RED-BLK • G393

Earth on gearbox

G318
		35BLK • A1
