146 electrical system diagnosisConnector a

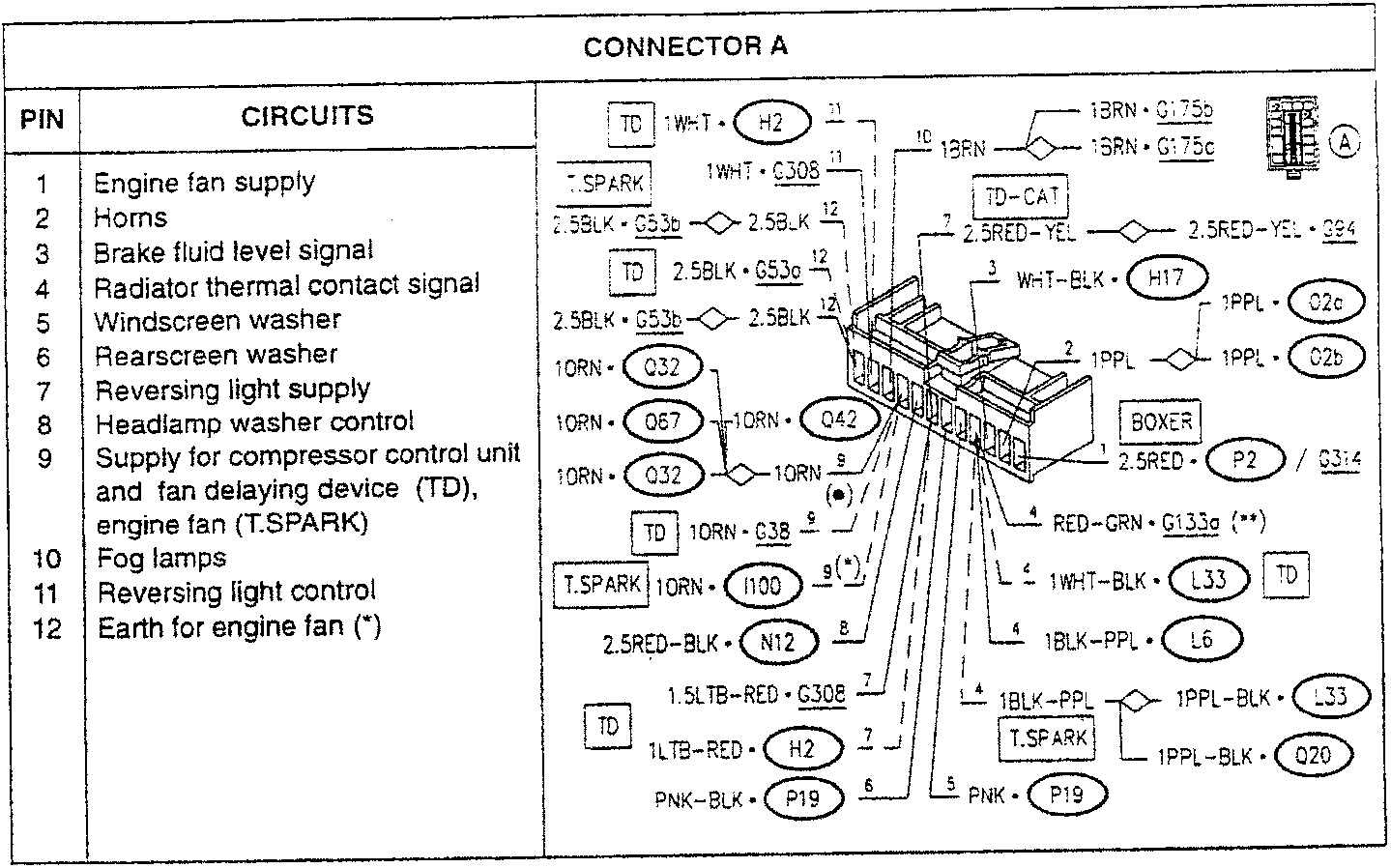

CONNECTOR A

PIN	CIRCUITS
1	Engine fan supply
2	Horns
3	Brake fluid level signal
4	Radiator thermal contact signal
5	Windscreen washer
6	Rear screen washer
7	Reversing light supply
8	Headlamp washer control
9	Supply for compressor control unit and fan delaying device (TD), engine fan (T.SPARK)
10	Fog lamps
11	Reversing light control
12	Earth for engine fan (*)

(•) TD version, from chassis no....

(*) also Boxer from chassis no. 4065018

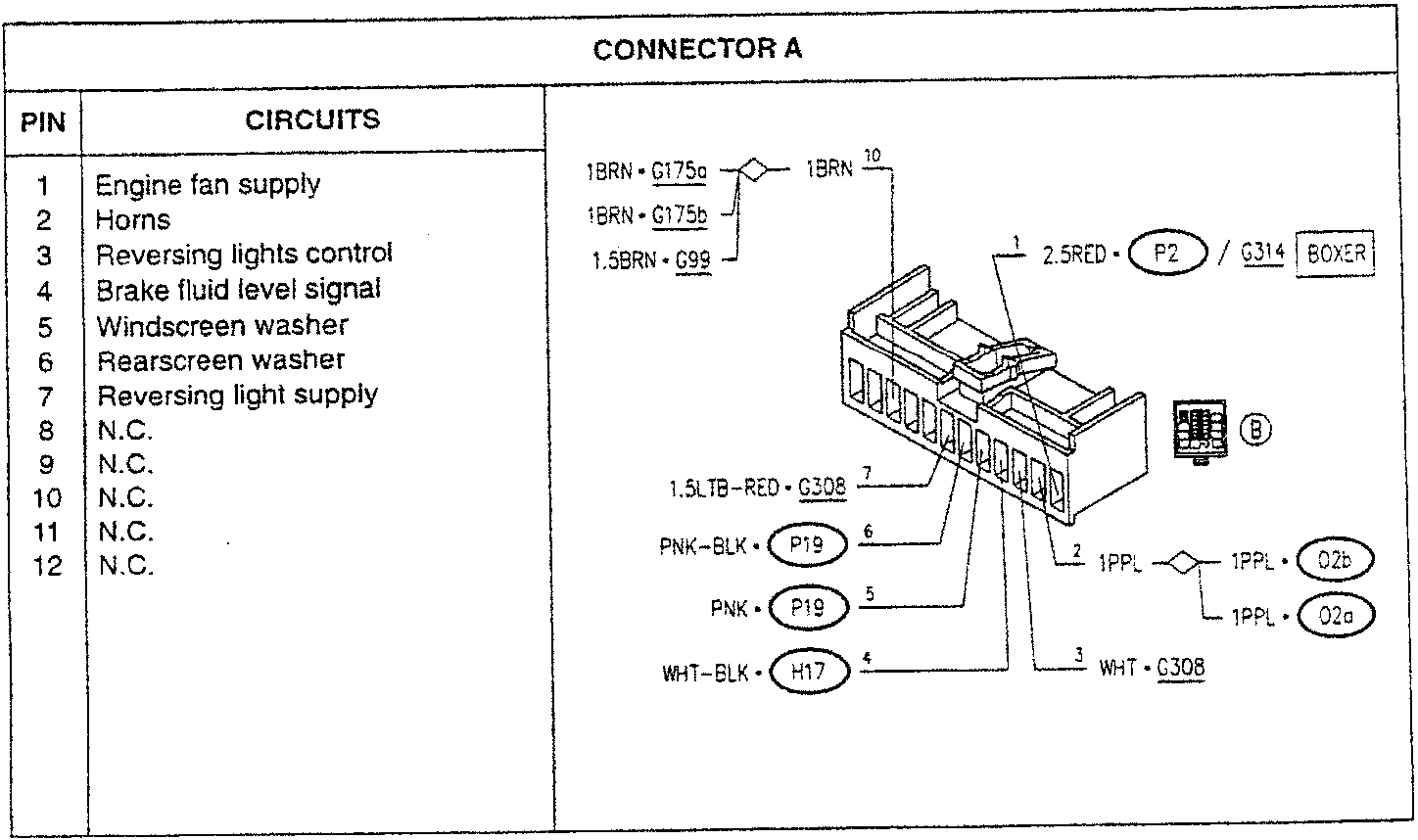

CONNECTOR A

PIN	CIRCUITS
1	Engine fan supply
2	Horns
3	Reversing lights control
4	Brake fluid level signal
5	Windscreen washer
6	Rear screen washer
7	Reversing light supply
8	N.C.
9	N.C.
10	N.C.
11	N.C.
12	N.C.

(•) TD version, from chassis no....

(**) from M.Y. '97
