F1

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Fusebox › F1

146 electrical system diagnosisF1

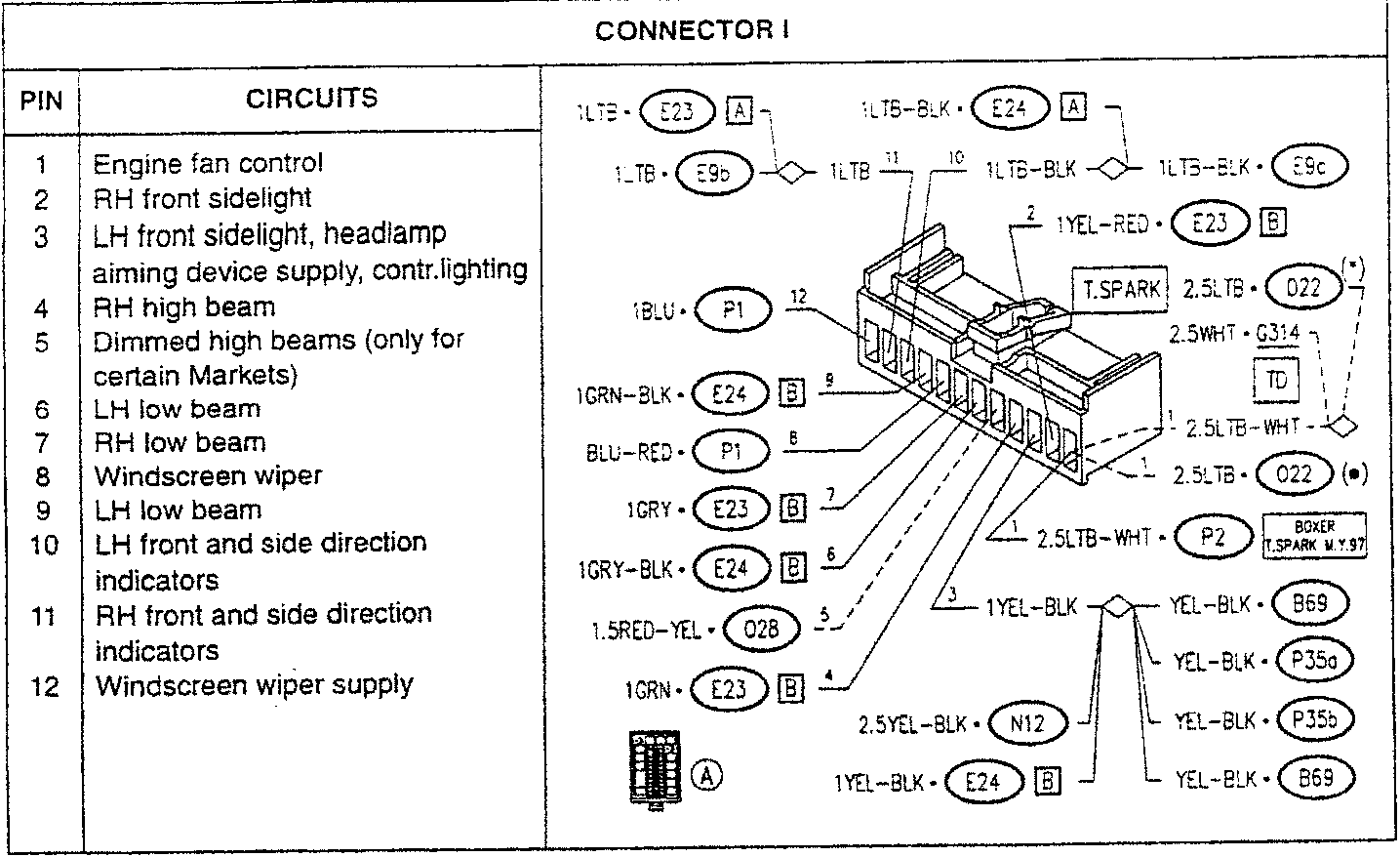

F1

PIN	CIRCUITS
1	Engine fan control
2	RH front sidelight
3	LH front sidelight, headlamp aiming device supply, contr.lighting
4	RH high beam
5	Dimmed high beams (only for certain Markets)
6	LH low beam
7	RH low beam
8	Windscreen wiper
9	LH low beam
10	LH front and side direction indicators
11	RH front and side direction indicators
12	Windscreen wiper supply

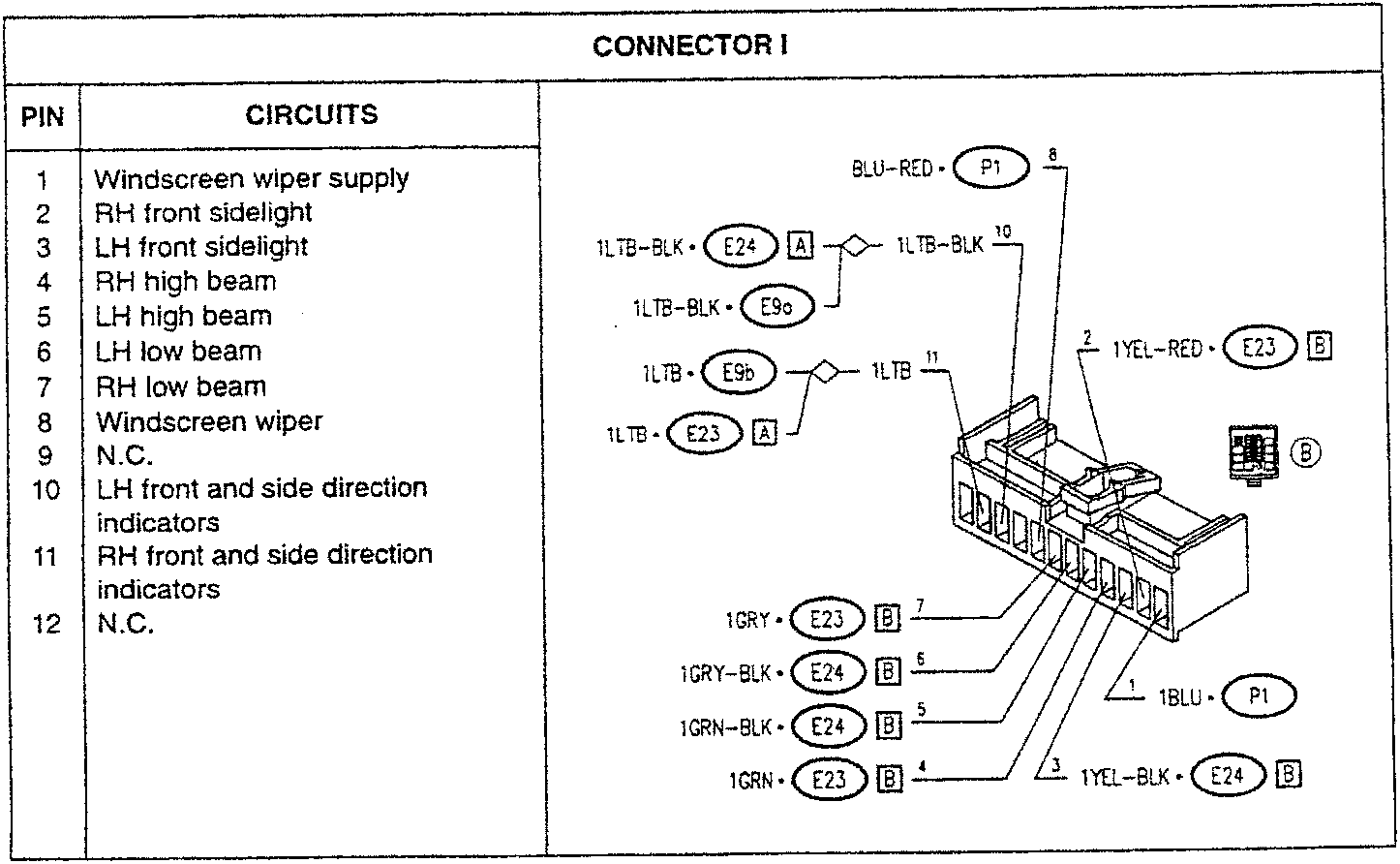

F2

PIN	CIRCUITS
1	Windscreen wiper supply
2	RH front sidelight
3	LH front sidelight
4	RH high beam
5	LH high beam
6	LH low beam
7	RH low beam
8	Windscreen wiper
9	N.C.
10	LH front and side direction indicators
11	RH front and side direction indicators
12	N.C.

(•) TD version, from chassis no....

(* ) also Boxer from chassis no.4065018
