146 electrical system diagnosisFusebox supply

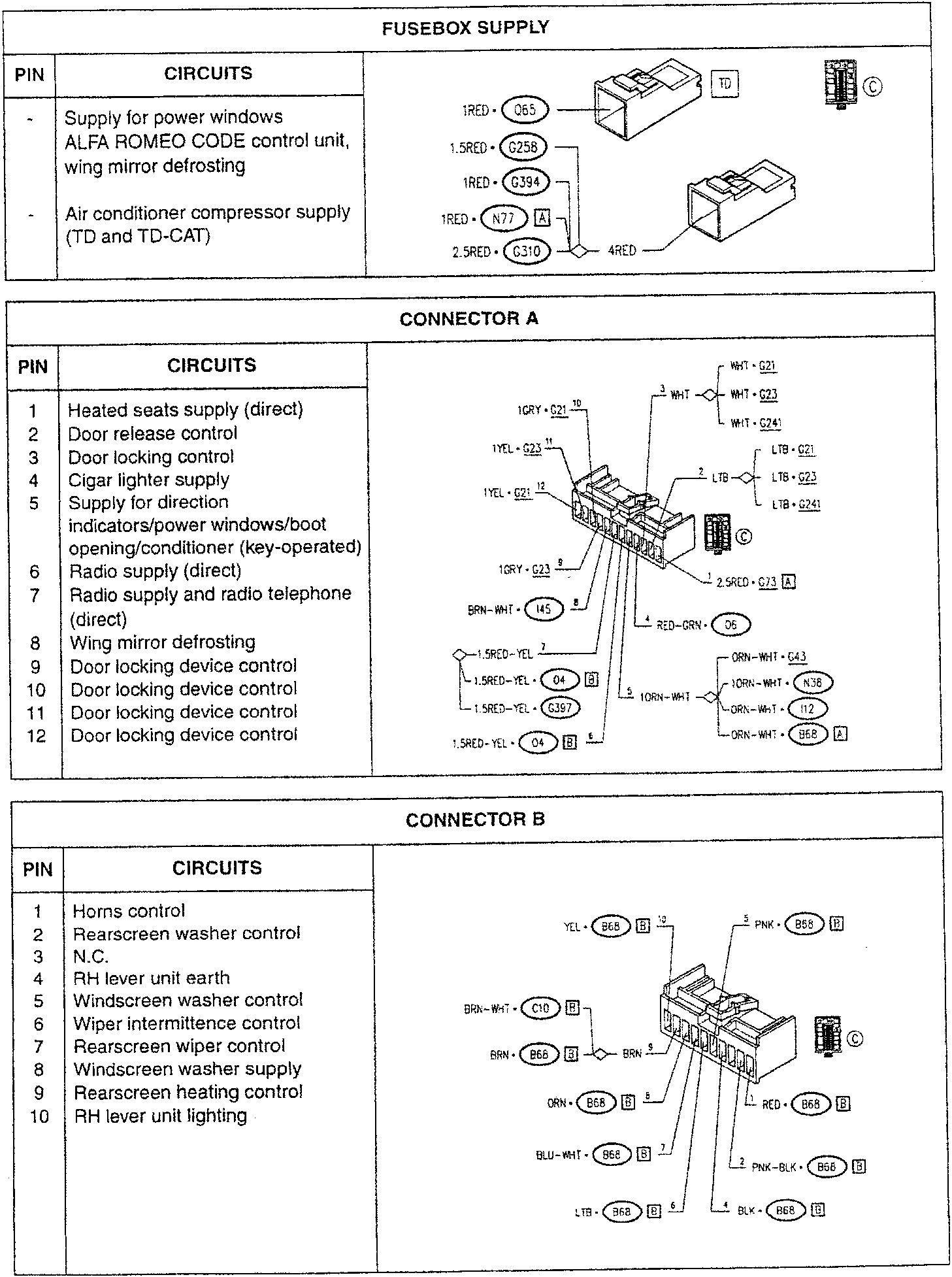

FUSEBOX SUPPLY

PIN CIRCUITS
- Supply for power windows ALFA ROMEO CODE control unit, wing mirror defrosting
- Air conditioner compressor supply (TD and TD-CAT)
Fusebox Supply Diagram with Fuses Q65, G258, G394, N77, G310 and Connectors TD and A

CONNECTOR A

PIN CIRCUITS
1 Heated seats supply (direct)
2 Door release control
3 Door locking control
4 Cigar lighter supply
5 Supply for direction indicators/power windows/boot opening/conditioner (key-operated)
6 Radio supply (direct)
7 Radio supply and radio telephone (direct)
8 Wing mirror defrosting
9 Door locking device control
10 Door locking device control
11 Door locking device control
12 Door locking device control
Connector A Diagram with Wires and Fuses G21, G23, G241, C73, N38, B68, G397, Q4, Q6, G310, N77

CONNECTOR B

PIN CIRCUITS
1 Horns control
2 Rear screen washer control
3 N.C.
4 RH lever unit earth
5 Windscreen washer control
6 Wiper intermittence control
7 Rear screen wiper control
8 Windscreen washer supply
9 Rear screen heating control
10 RH lever unit lighting
Connector B Diagram with Wires and Fuses C10, B68, N38, G397, Q4, Q6, G310, N77
