146 electrical system diagnosisConnector b

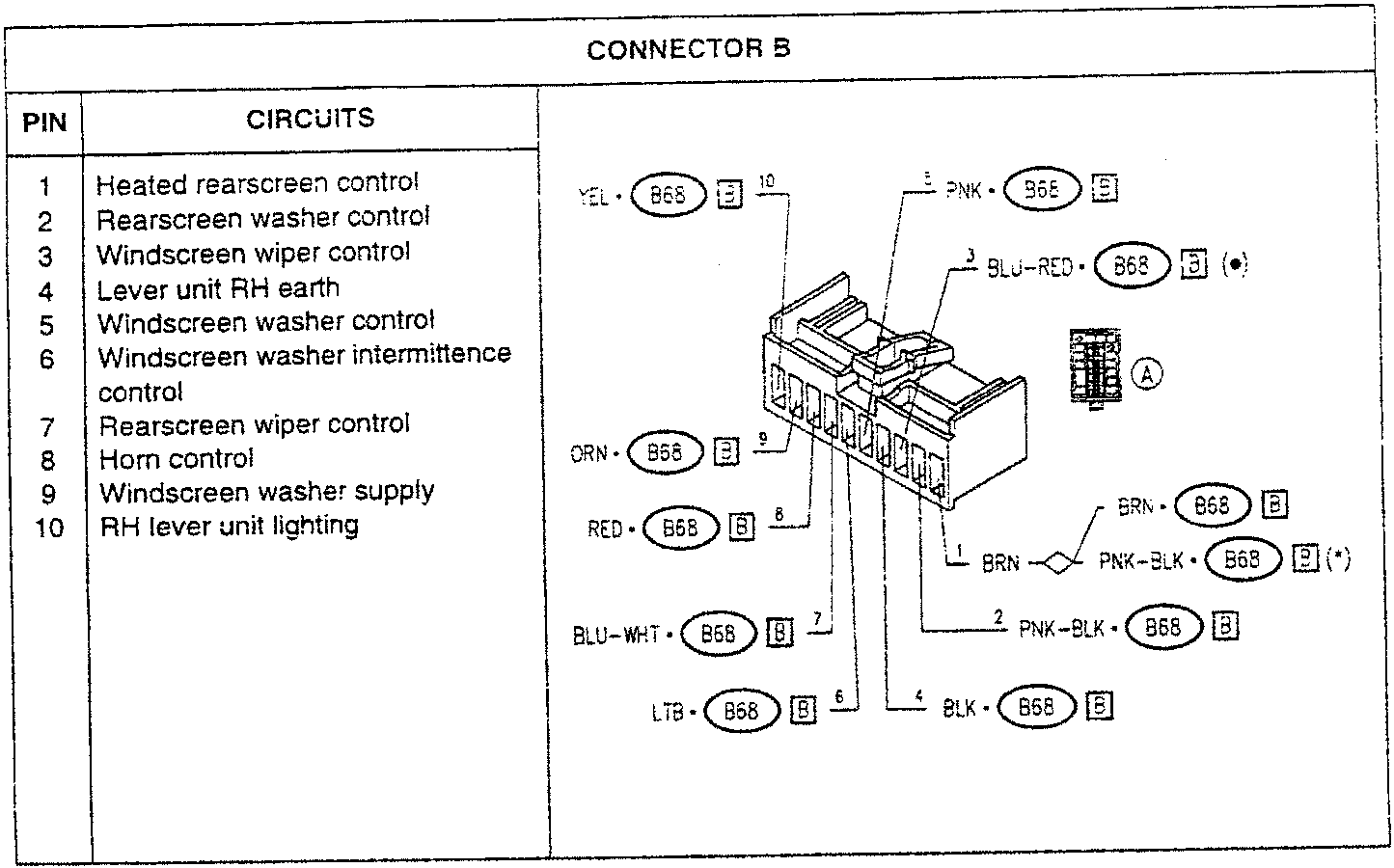

CONNECTOR B

PIN	CIRCUITS
1	Heated rearscreen control
2	Rear screen washer control
3	Windscreen wiper control
4	Lever unit RH earth
5	Windscreen washer control
6	Windscreen washer intermittence control
7	Rear screen wiper control
8	Horn control
9	Windscreen washer supply
10	RH lever unit lighting

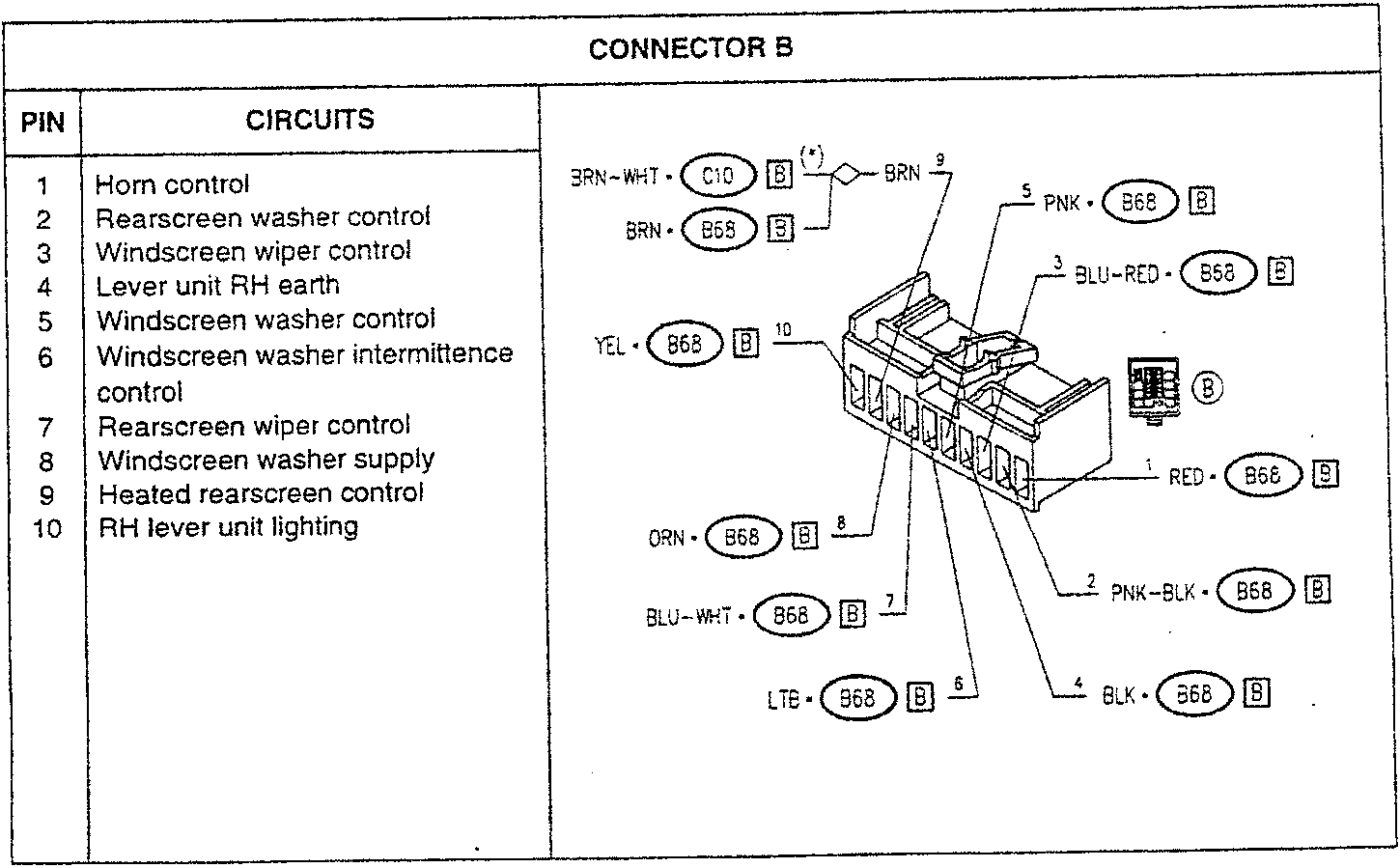

CONNECTOR B

PIN	CIRCUITS
1	Horn control
2	Rear screen washer control
3	Windscreen wiper control
4	Lever unit RH earth
5	Windscreen washer control
6	Windscreen washer intermittence control
7	Rear screen wiper control
8	Windscreen washer supply
9	Heated rearscreen control
10	RH lever unit lighting

(•) only up to M.Y. '96

(*) from M.Y. '97
