Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001)02 · 146 electrical system diagnosis
02 · Diagnostics

Connector i

Make
Alfa Romeo
Model
145/146 Electrical System Diagnosis Manual, Volume 3
Year
1994–2001
Section
Fusebox › Connector i
146 electrical system diagnosisConnector i

CONNECTOR I

PIN CIRCUITS
1Supply for windscreen wiper
2RH front sidelight
3LH front sidelight, headlamp washer timer
4RH main beam
5LH dipped beam
6LH main beam
7RH fog lamp
8LH fog lamp
9RH dipped beam
10Windscreen wiper supply
11RH front and side direction indicators
12LH front and side direction indicators

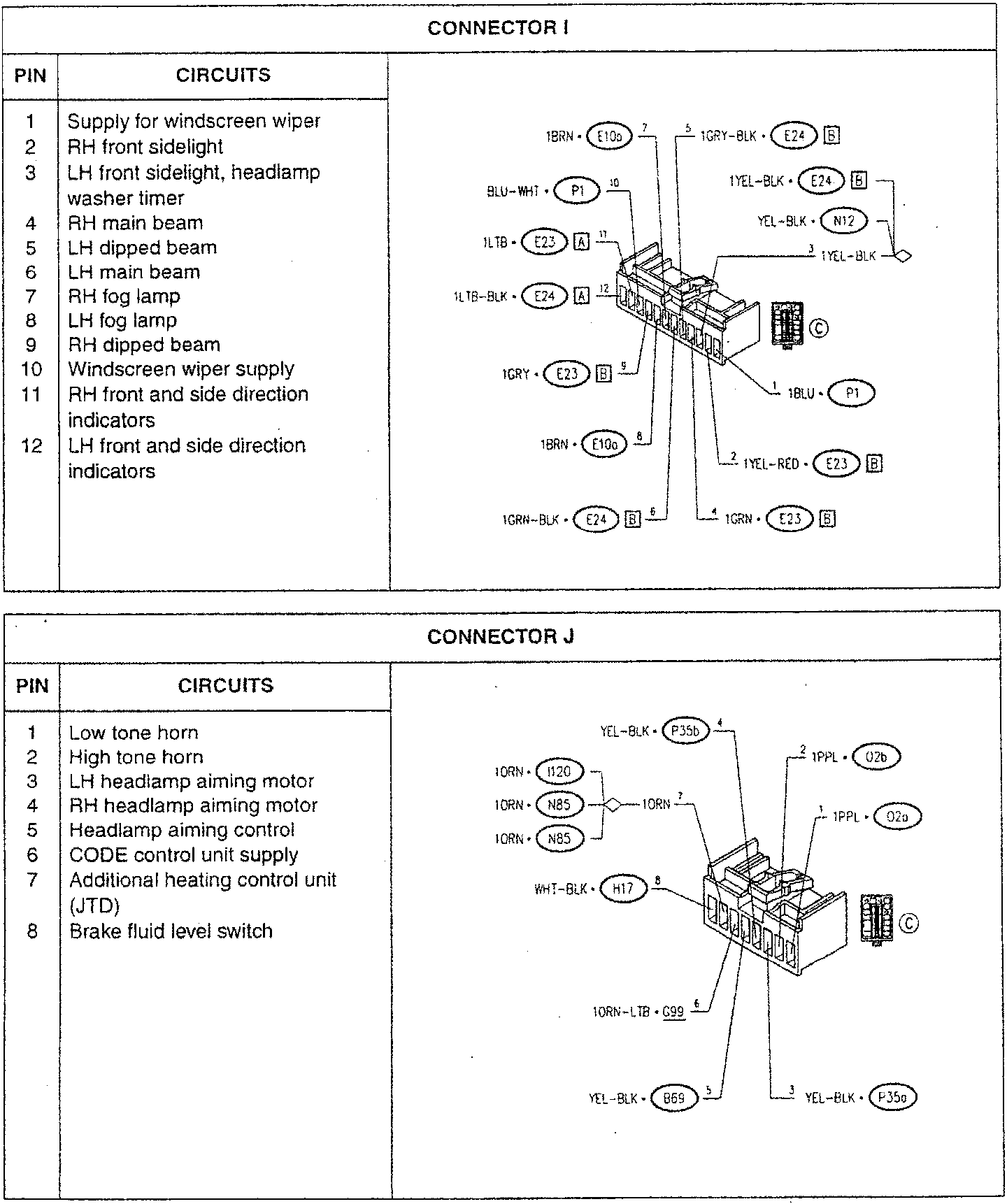

Connector I wiring diagram showing pin connections and wire colors for various circuits including wiper, headlights, fog lamps, and indicators.

CONNECTOR J

PIN CIRCUITS
1Low tone horn
2High tone horn
3LH headlamp aiming motor
4RH headlamp aiming motor
5Headlamp aiming control
6CODE control unit supply
7Additional heating control unit (JTD)
8Brake fluid level switch
Connector J wiring diagram showing pin connections and wire colors for various circuits including horns, headlamp aiming motors, control units, and brake fluid level switch.
