146 electrical system diagnosisConnector l

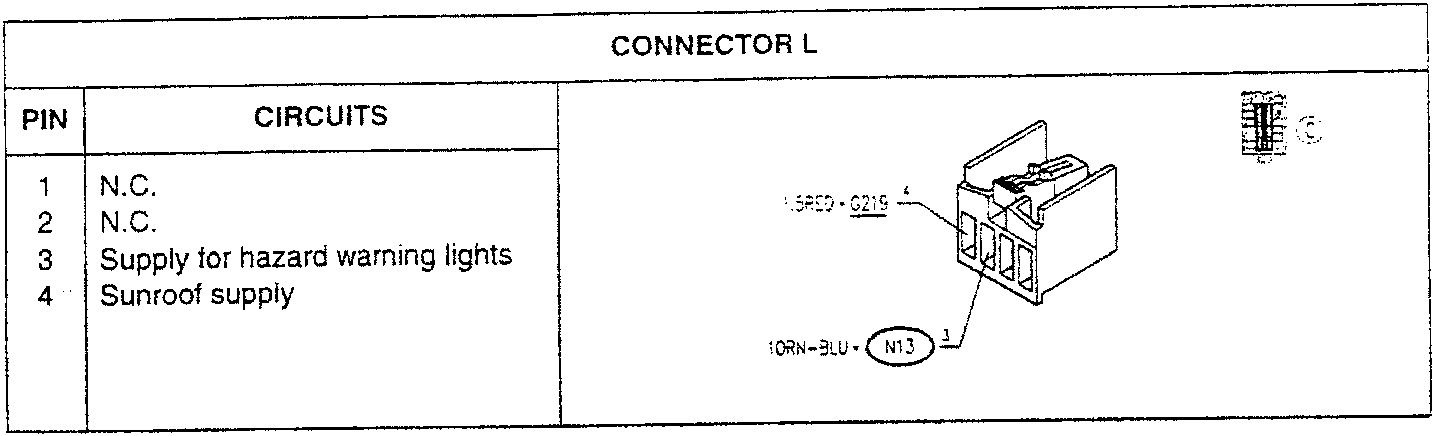

CONNECTOR L

PIN	CIRCUITS
1	N.C.
2	N.C.
3	Supply for hazard warning lights
4	Sunroof supply

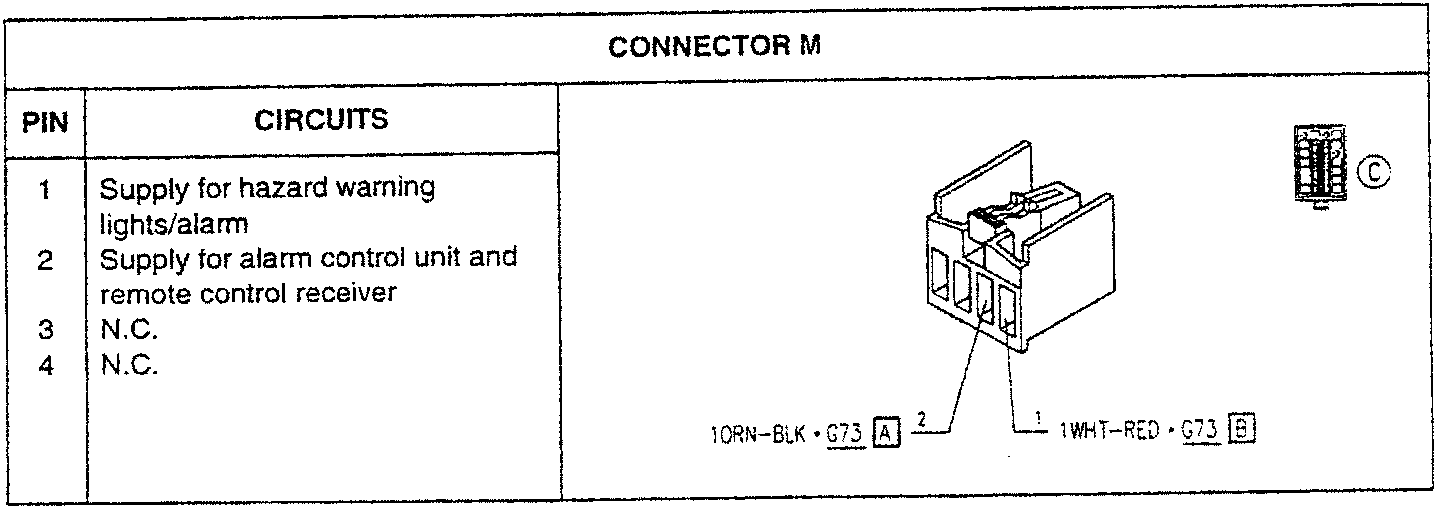

CONNECTOR M

PIN	CIRCUITS
1	Supply for hazard warning lights/alarm
2	Supply for alarm control unit and remote control receiver
3	N.C.
4	N.C.

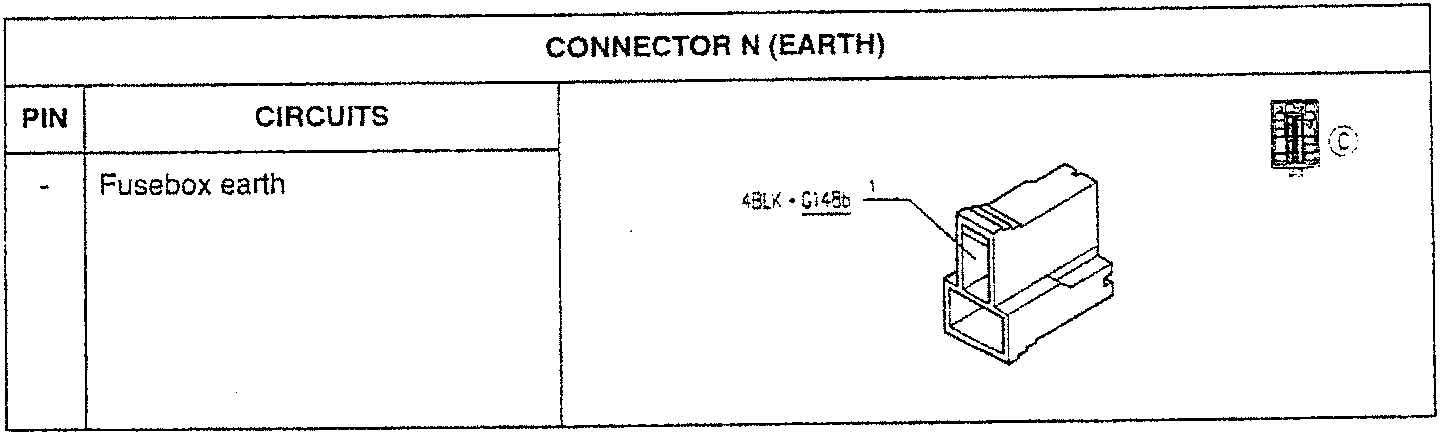

CONNECTOR N (EARTH)

PIN	CIRCUITS
-	Fusebox earth
