146 electrical system diagnosisConnector j

CONNECTOR J

PIN CIRCUITS
1Fog lamp consent
2Rear fog guard consent
3Low beam control
4Low beam consent
5Sidelights control
6Sidelights consent
7Key-operated supply
8Earth

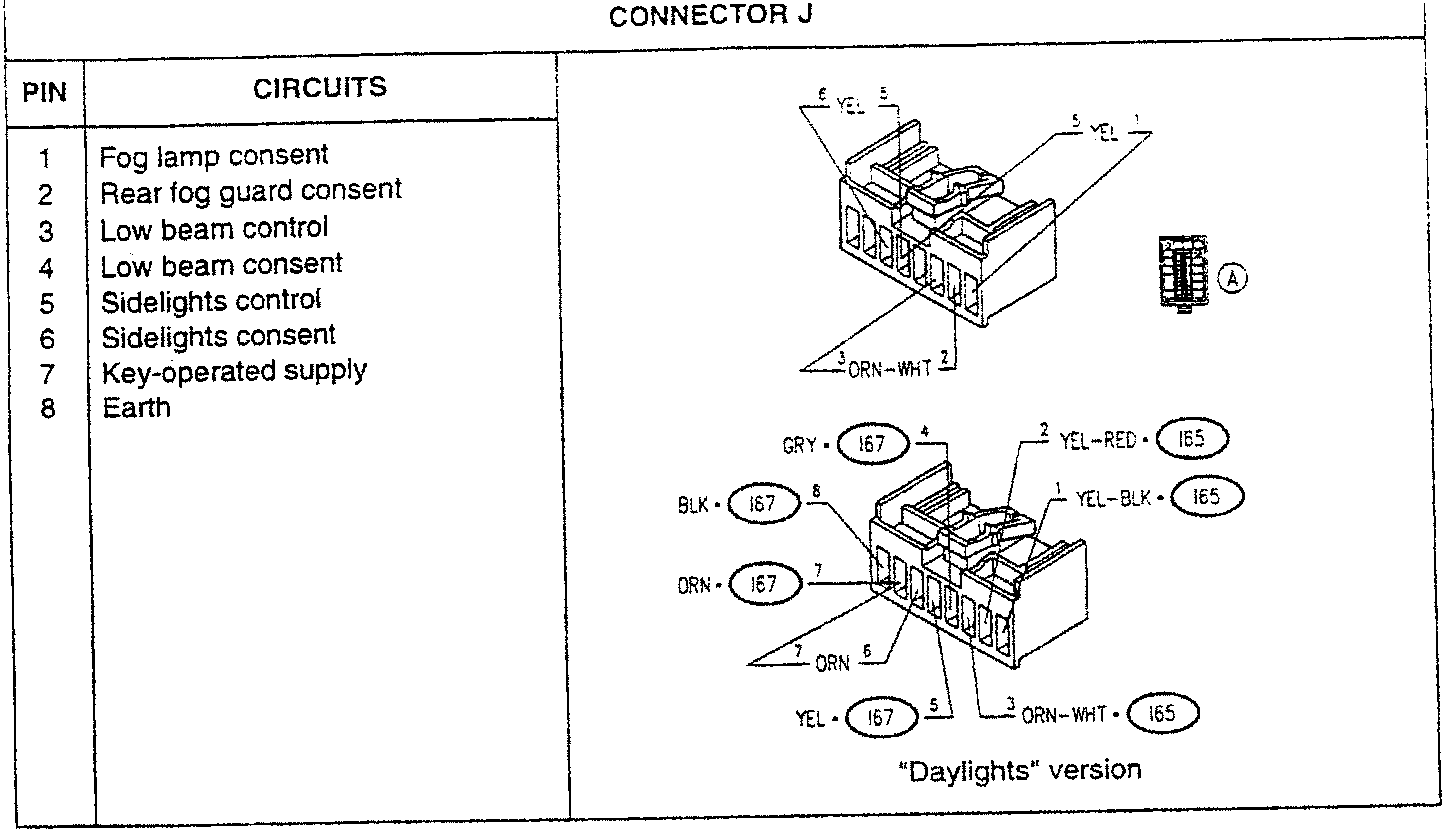

Connector J diagram showing pin assignments and wire colors for 'Daylights' version
"Daylights" version

CONNECTOR J

PIN CIRCUITS
1N.C.
2Rear fog guard consent
3Low beam control
4N.C.
5Sidelights control
6Sidelights consent
7Key-operated supply
8Earth

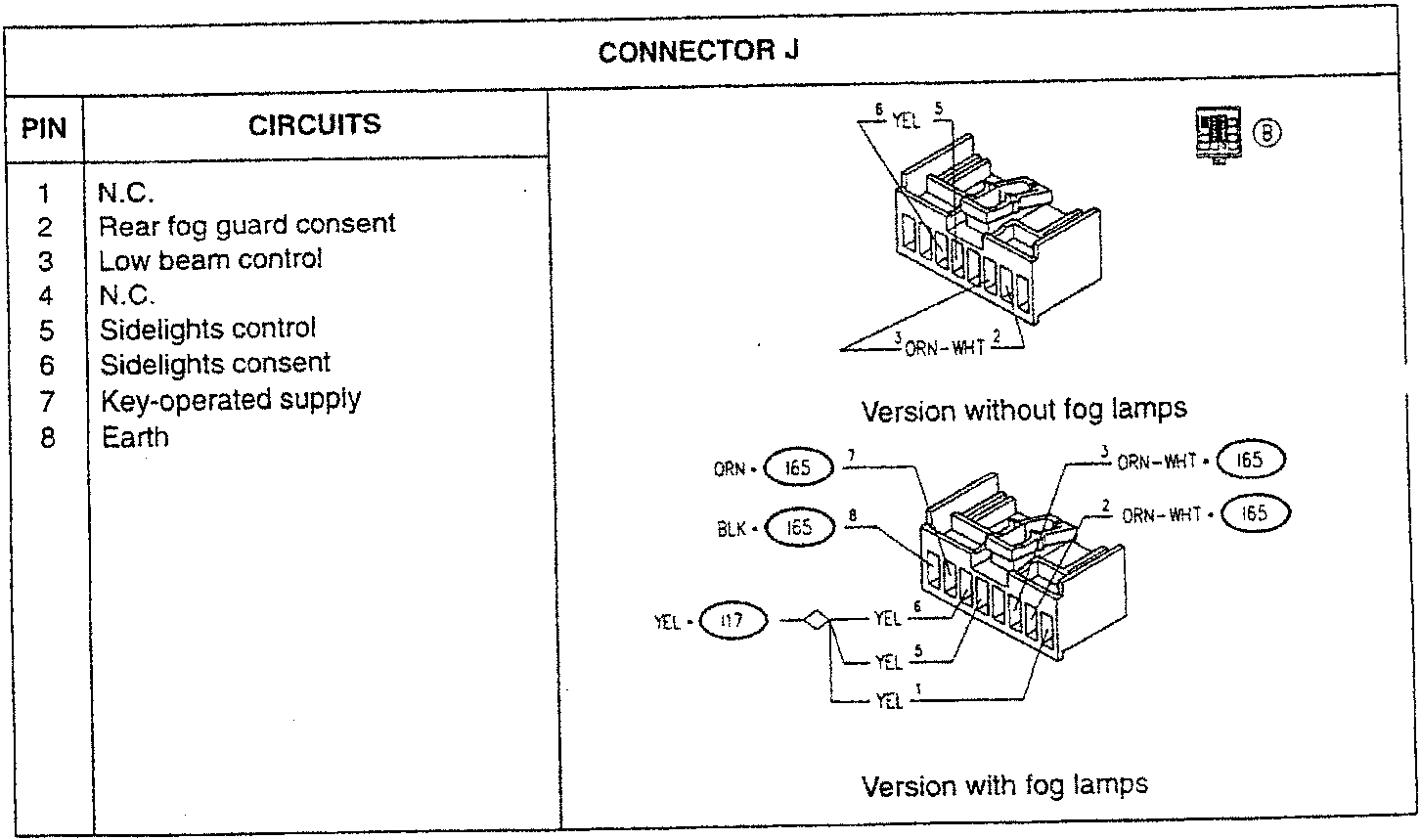

Connector J diagram showing pin assignments and wire colors for versions with and without fog lamps
Version without fog lamps
Version with fog lamps
