Connector g (page 2 of 2)

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Fusebox

146 electrical system diagnosisConnector g · page 2 of 2

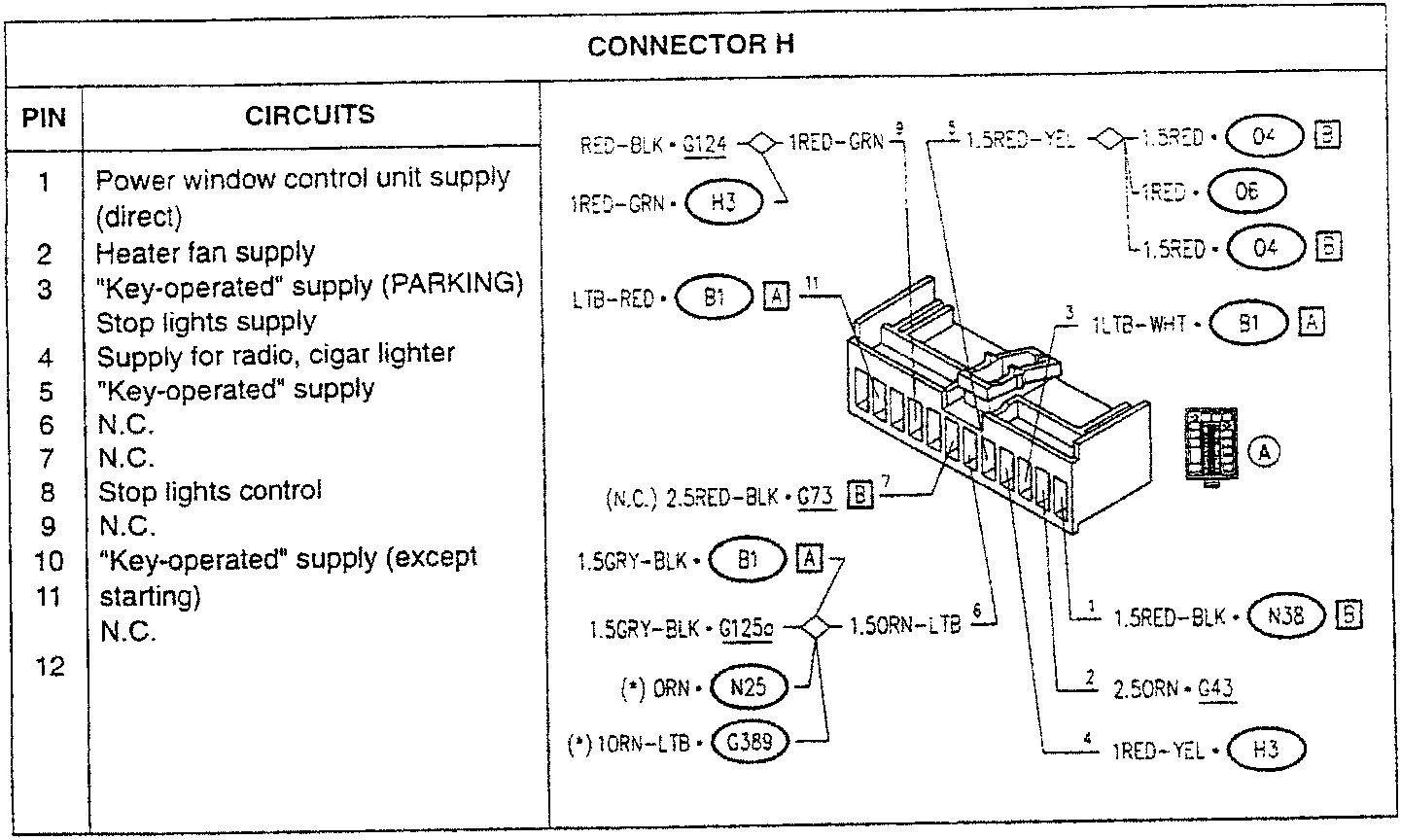

PIN	CIRCUITS
1	Power window control unit supply (direct)
2	Heater fan supply
3	"Key-operated" supply (PARKING)
4	Stop lights supply
5	Supply for radio, cigar lighter
6	"Key-operated" supply
7	N.C.
8	Stop lights control
9	N.C.
10	"Key-operated" supply (except starting)
11	N.C.
12

PIN	CIRCUITS
1	"Key-operated" supply (except starting)
2	"Key-operated" supply
3	"Key-operated" supply (PARKING)
4	Stop lights supply
5	Supply for radio, cigar lighter
6	Heater fan supply device
7	N.C.
8	Stop lights control
9	N.C.
10	N.C.
11	N.C.
12

(*) from M.Y. '97
