Intercooler (page 2 of 2)

Make

Alfa Romeo

Model

145/146 Engines, 146 Bodywork and Engine Overhaul Manual

Year

1994–2001

Section

Air supercharging system

1.9 JTD engine (1910)Intercooler · page 2 of 2

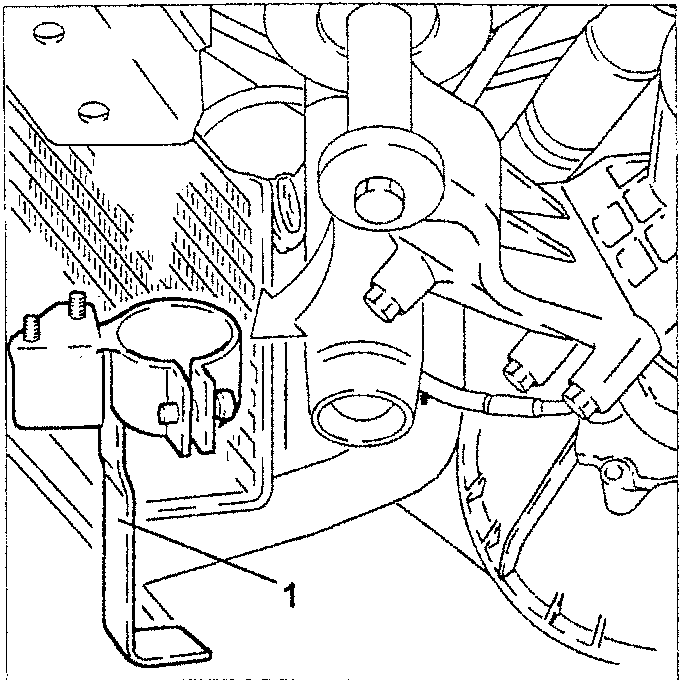

1. Loosen the screw and remove the air conditioning system drier filter support.

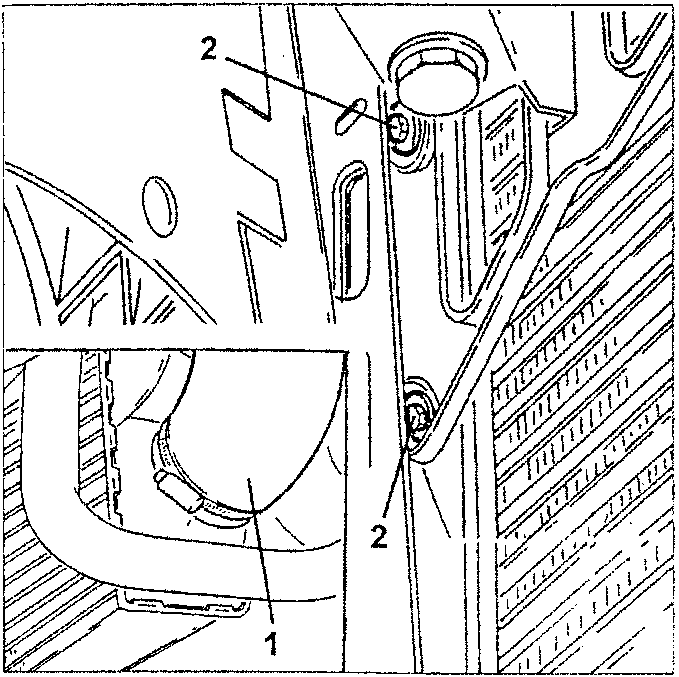

1. Loosen the clamp and disconnect the air inlet sleeve from the intercooler.
2. Slacken the screws fastening the intercooler to the support bracket.

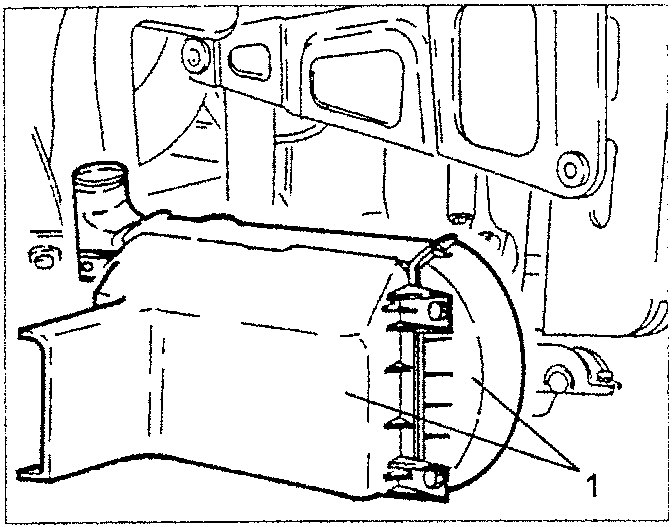

1. Remove the intercooler complete with air duct.

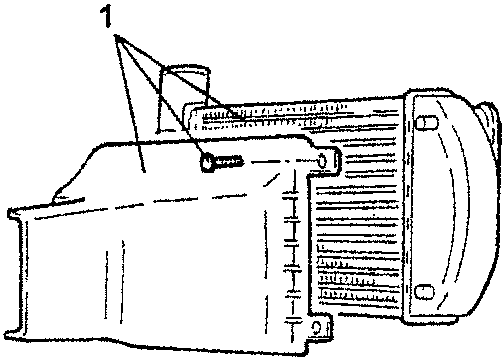

1. On the bench, slacken the fastening screws and separate the intercooler from the air duct.
