Removal/refitting (page 2 of 2)

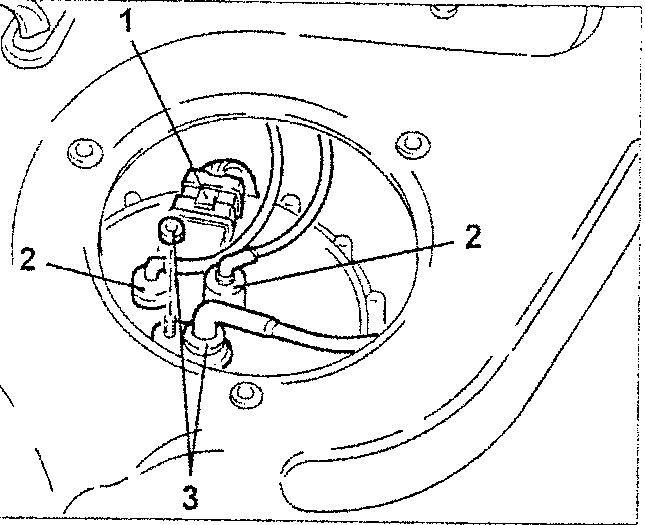

1. Disconnect the electrical connection from the submerged pump assembly complete with level gauge control.
2. Disconnect the quick couplings of the fuel delivery and return pipes from the submerged pump assembly complete with level gauge control.
3. Slacken the nut and disconnect the breather pipe between the lower and upper part of the tank.

1. Electrical connection
2. Quick coupling
3. Breather pipe

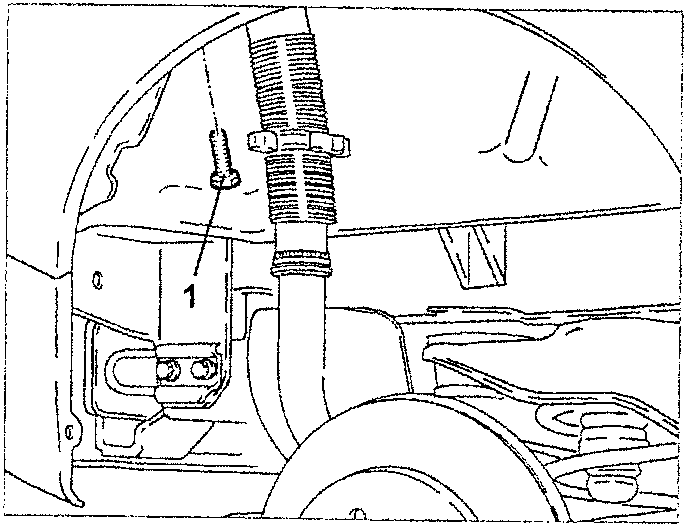

1. Working from the wheel arch, slacken the screw fastening the fuel filler to the body.

1. Screw

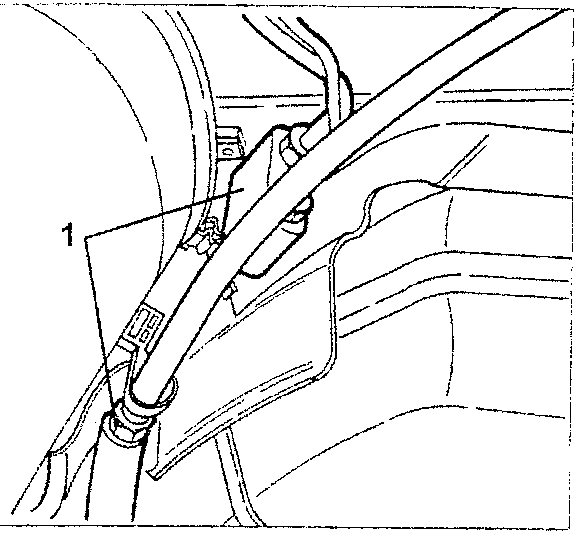

1. Release the handbrake cables and brake pipes from the fasteners on the tank.

1. Handbrake cable
2. Brake pipe

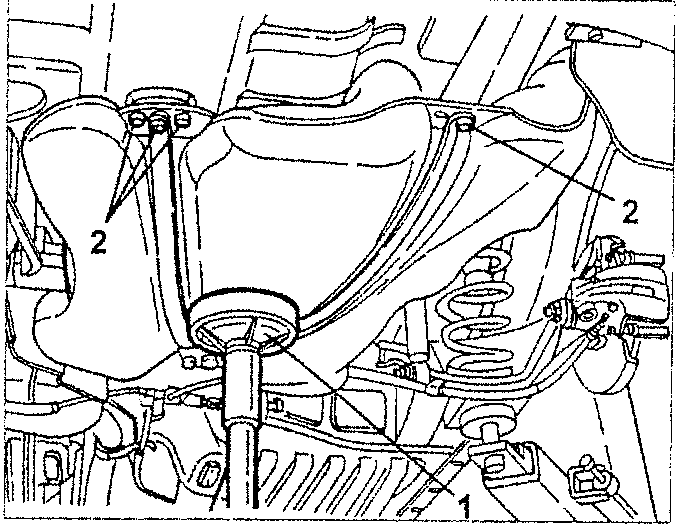

1. Set a hydraulic jack under the fuel tank.
2. Remove the plastic nails and slacken the fuel tank fastening screws.

1. Hydraulic jack
2. Fuel tank fastening screw
1. Lower the hydraulic jack and remove the fuel tank.

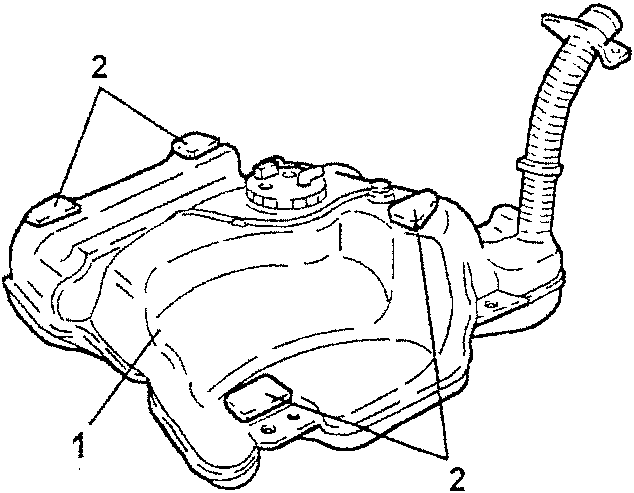

WARNING: When refitting the tank check for the presence on it of the rubber pads (2).

1. Fuel tank
2. Rubber pad
