1.9 JTD engine (1910)Oil sump · page 1 of 4

OIL SUMP

REMOVAL/REFITTING

  • Set the car on a lift.
  • Make sure the ignition key is in the “STOP” position, then disconnect the battery (-) terminal.
  • Remove the right front wheel and dust guard.

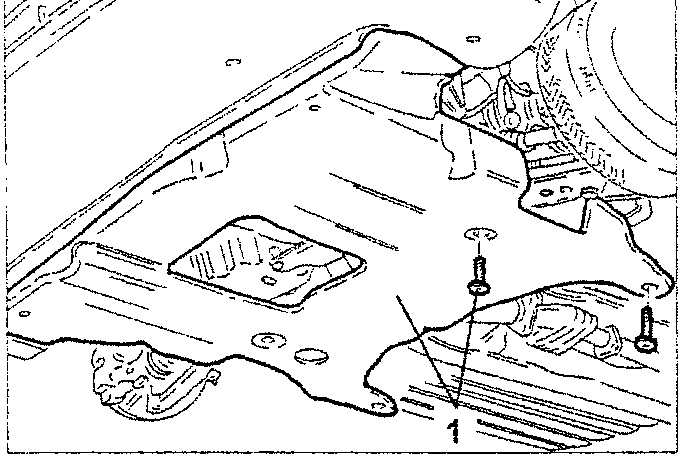

  1. Slacken the fasteners and remove the under engine guard.
Under engine guard with bolts

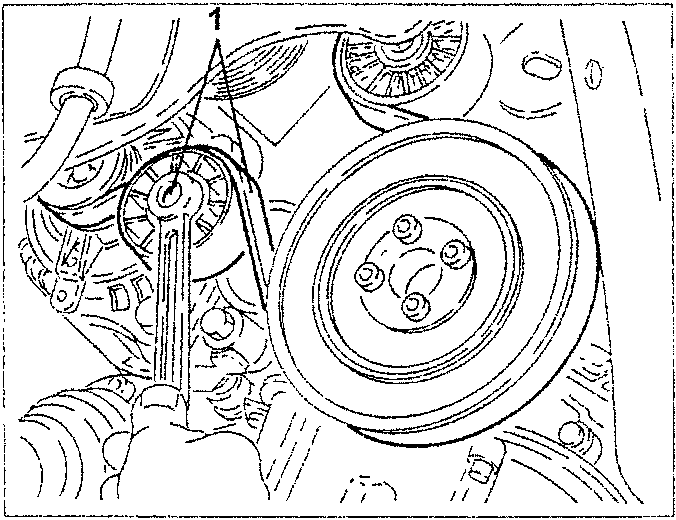

  1. Working as illustrated on the tensioner, loosen the tension of the auxiliary components belt and remove it.
Tensioner and auxiliary belt
  • Remove the front section of the exhaust pipe.
  1. Slacken the drain cap and drain the gearbox - differential oil.

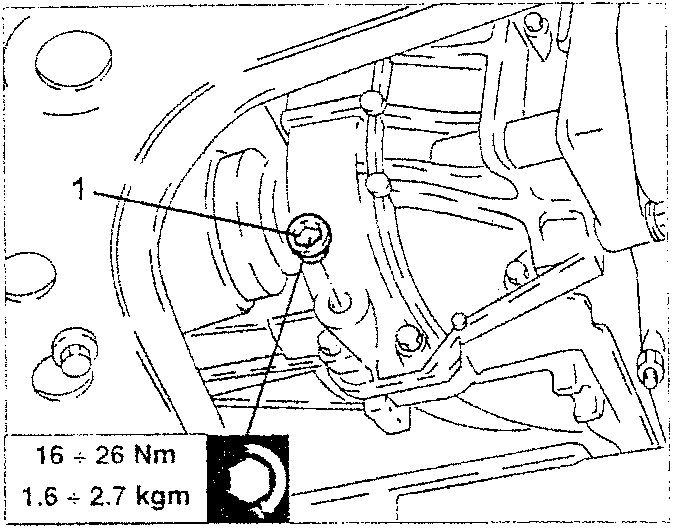

Engine oil dipstick guide pipe with torque specification

16 ÷ 26 Nm
1.6 ÷ 2.7 kgm

  1. Slacken the upper screw of the engine oil dip-stick guide pipe.

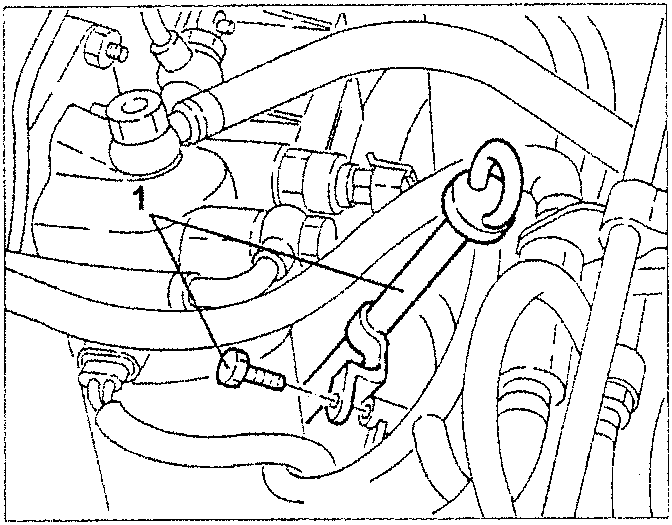

Engine oil dipstick guide pipe with lower screw
  1. Slacken the lower screw of the engine oil dip-stick guide pipe.

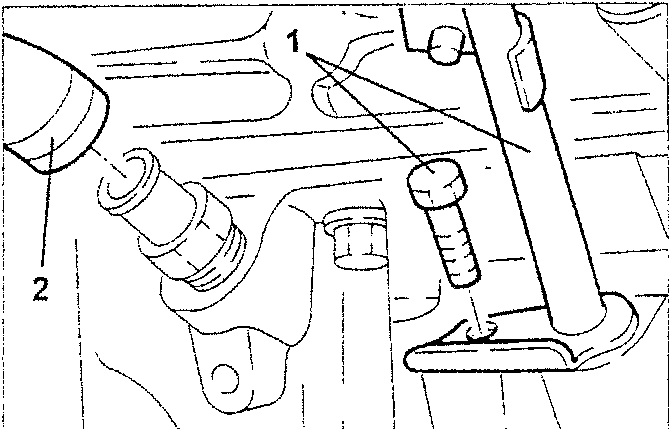

  2. Disconnect the condensed oil recovery pipe from the oil sump.
Condensed oil recovery pipe disconnection
