1.9 JTD engine (1910)Cylinder head · page 1 of 8

CYLINDER HEAD

REMOVAL/REFITTING

  • Set the car on a lift.
    - Remove the battery (see GROUP 55).
    1. Remove the engine oil filler cap.
    2. Slacken the fastening screws and remove the engine cover.
    - Refit the engine oil filler cap.

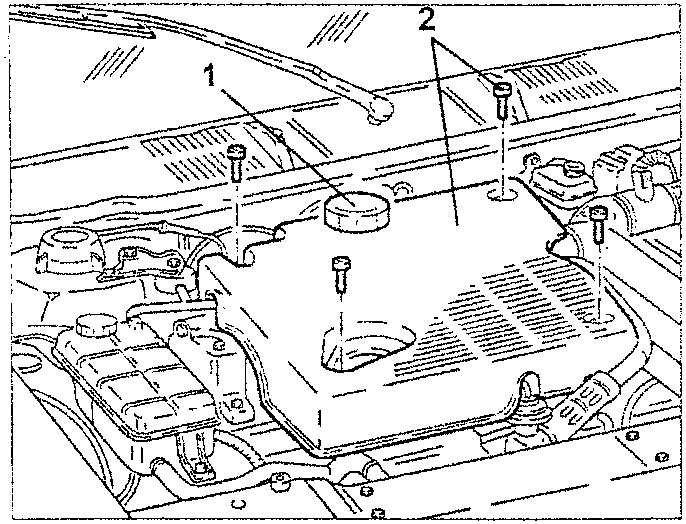

Engine cover with fastening screws

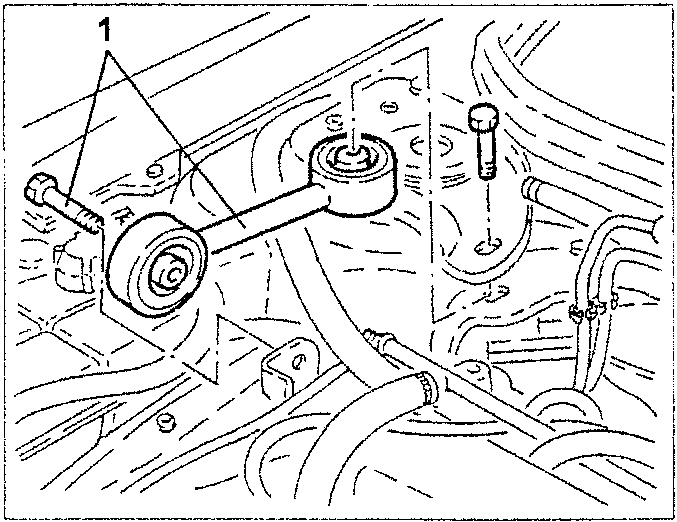

  1. Slacken the fastening screws and remove the power unit reaction rod.
Power unit reaction rod with fastening screws
  1. Slacken the fastening screws and remove the engine side reaction rod support bracket.

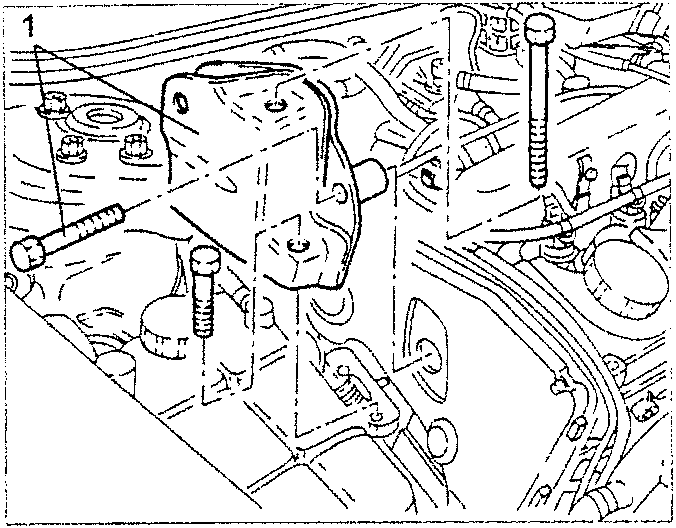

Engine components including air delivery pipe
  1. Disconnect and remove the air delivery pipe from the intercooler to the intake box.

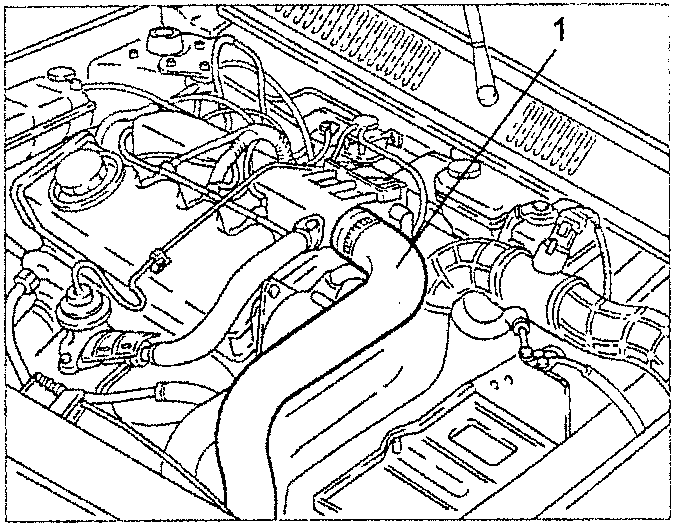

Air flow meter and oil vapour re-circulation pipe
  1. Disconnect the electrical connection from the air flow meter.
    2. Disconnect the oil vapour re-circulation pipe from the oil vapour separator.
    3. Loosen the clamps and remove the complete air delivery pipe from the cleaner to the turbocharger.

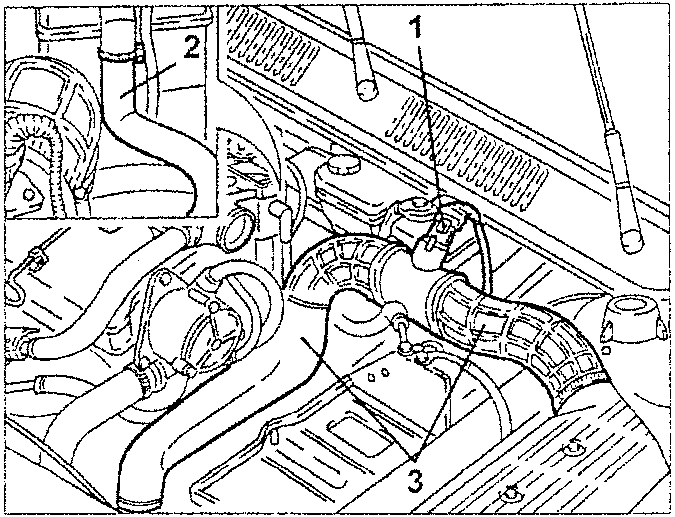

Air delivery pipe with clamps
