Cylinder head (page 6 of 8)

Make

Alfa Romeo

Model

145/146 Engines, 146 Bodywork and Engine Overhaul Manual

Year

1994–2001

Section

Operations on the car

1.9 JTD engine (1910)Cylinder head · page 6 of 8

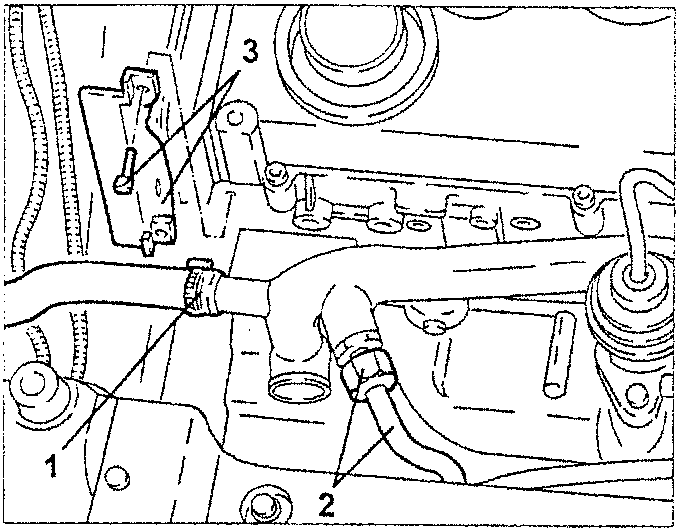

1. Disconnect the system supply pipe from the stiff coolant fluid return pipe to the pump.
2. Slacken the coupling and disconnect the engine oil heat exchanger outlet pipe from the stiff coolant fluid return pipe to the pump.
3. Slacken the fastening screws and remove the camshaft belt left side guard.

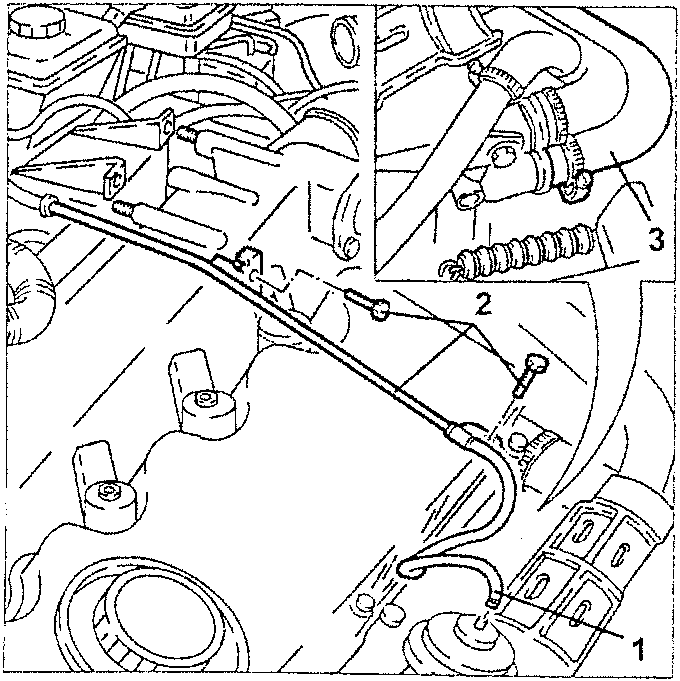

1. Disconnect the vacuum pipe from the E.G.R. valve.
2. Slacken the fastening screws move aside the vacuum pipe for the E.G.R. valve.
3. Disconnect the the return pipe from the climate control system heater from the stiff coolant fluid return pipe to the pump.

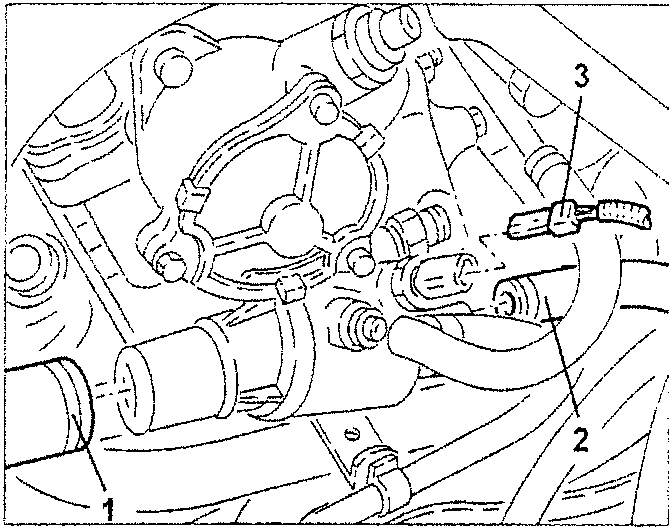

1. Disconnect the coolant fluid delivery sleeve to the radiator from the thermostat.
2. Disconnect the coolant fluid delivery pipe to the climate control system heater from the thermostat.
3. Disconnect the electrical connection from the coolant fluid temperature sensor.

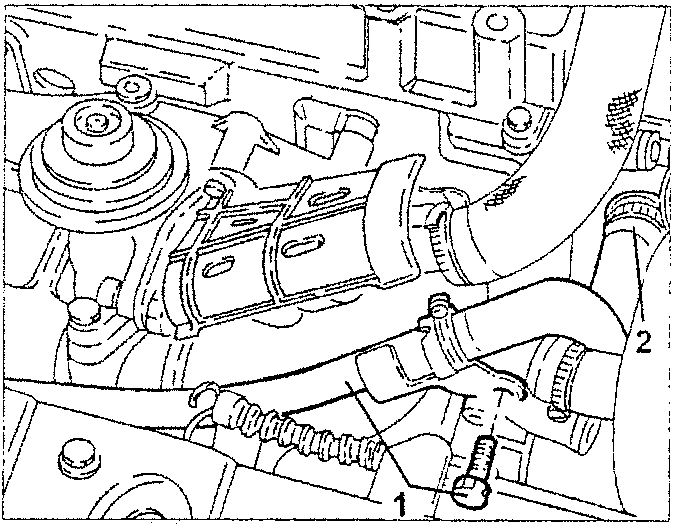

1. Slacken the screw fastening the coolant fluid delivery pipe to the engine oil heat exchanger.
2. Disconnect the coolant fluid delivery sleeve to the engine oil heat exchanger from the thermostat.
