1.9 JTD engine (1910)Cylinder head · page 2 of 8
  • Remove the right front wheel and dust guard.
  • Remove the right front wheel arch.

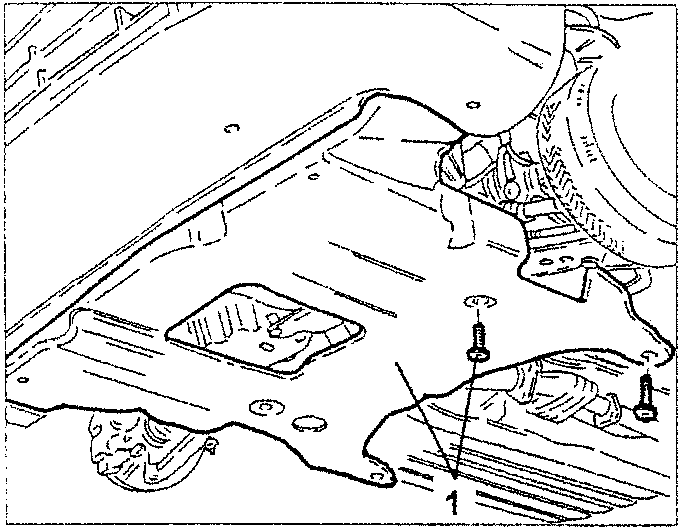

  1. Slacken the fastenings and remove the under engine guard.
Under engine guard with bolts

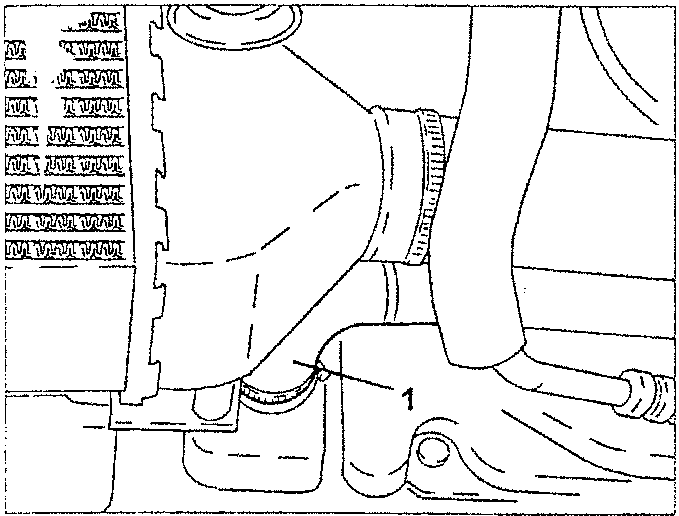

  1. Drain the engine coolant fluid, disconnecting the coolant fluid outlet sleeve from the engine cooling radiator.

NOTE: Collect the engine coolant fluid in a suitable container.

Coolant drain with hose disconnected

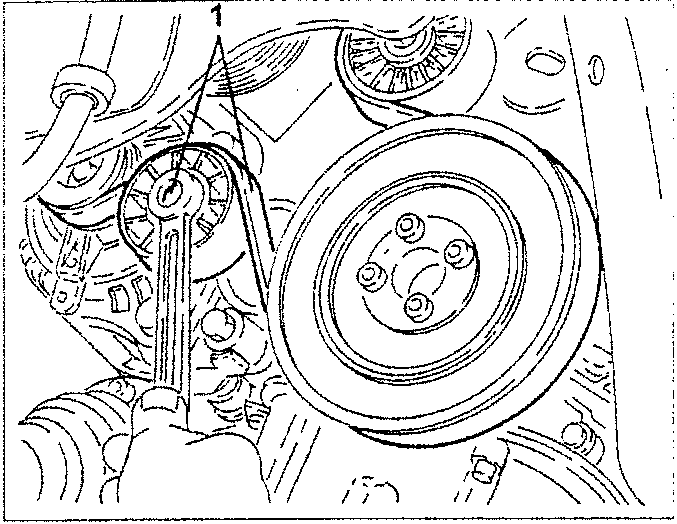

  1. Working as illustrated on the tensioner, slacken the tension of the engine components belt and remove it.
Engine belt tensioner and pulley

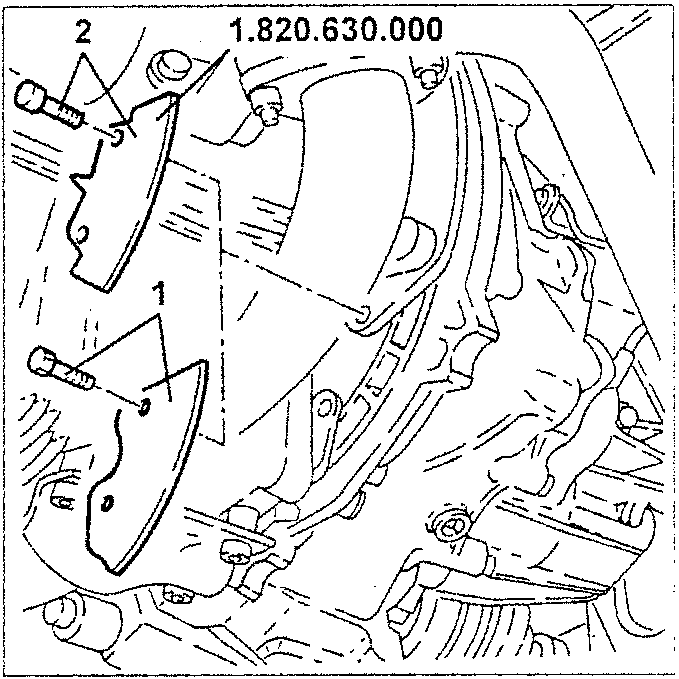

  1. Slacken the screws and remove the flywheel lower guard.
  2. Install flywheel stopper tool no. 1.820.630.000.
Flywheel lower guard with stopper tool
