Cylinder head (page 3 of 8)

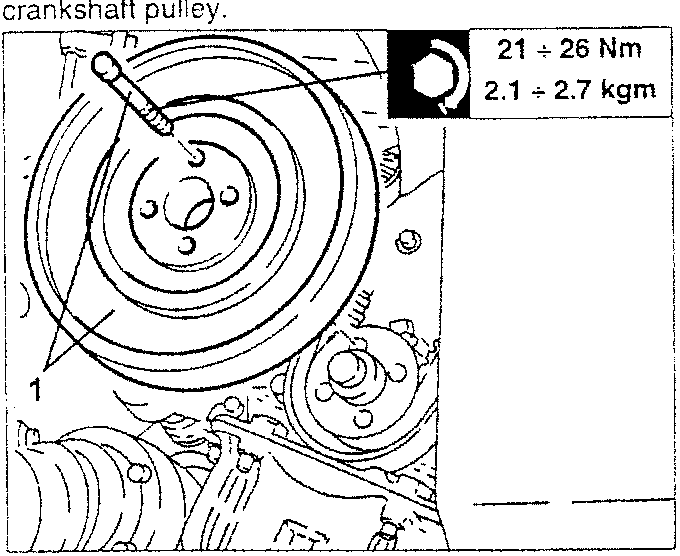

1. Slacken the fastening screws and remove the crankshaft pulley.

21 ÷ 26 Nm
2.1 ÷ 2.7 kgm

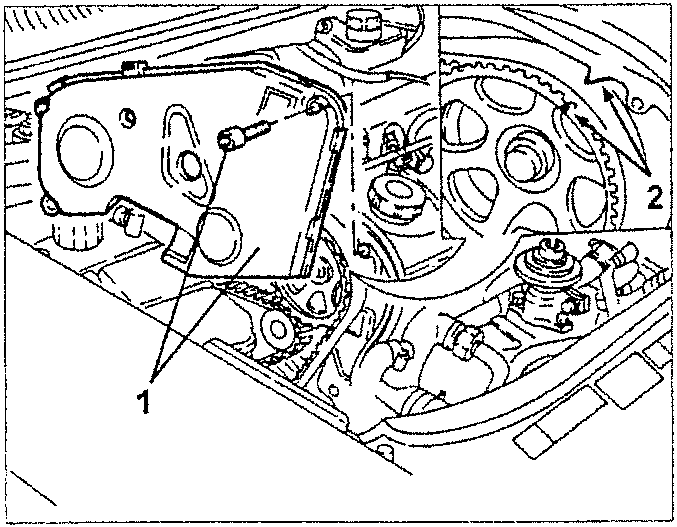

1. Slacken the fastening screws and remove the upper timing gear belt guard.

2. Working on the screw of the camshaft driving pulley, turn the crankshaft until aligning the timing references (1^st cyl. at T.D.C.).

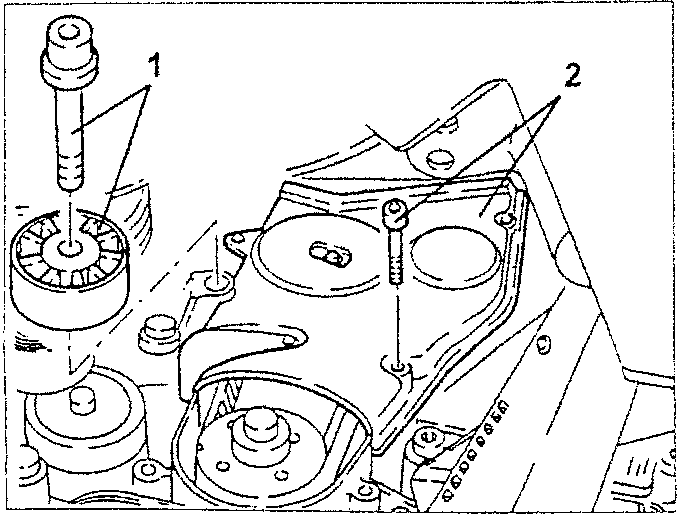

1. Slacken the fastening screw and remove the engine components belt fixed tensioner.

2. Slacken the fastening screws and remove the camshaft belt lower guard.

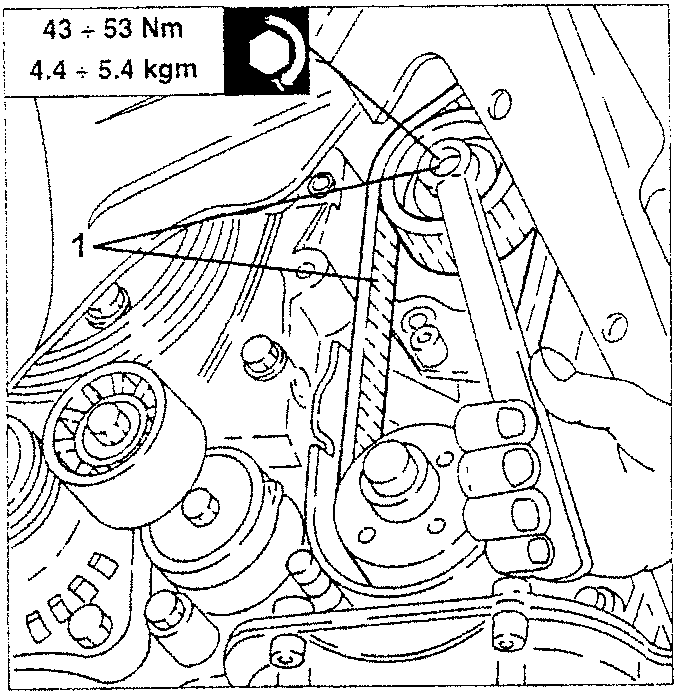

1. Loosen the nut fastening the camshaft belt tensioner, then remove the camshaft belt.

43 ÷ 53 Nm
4.4 ÷ 5.4 kgm

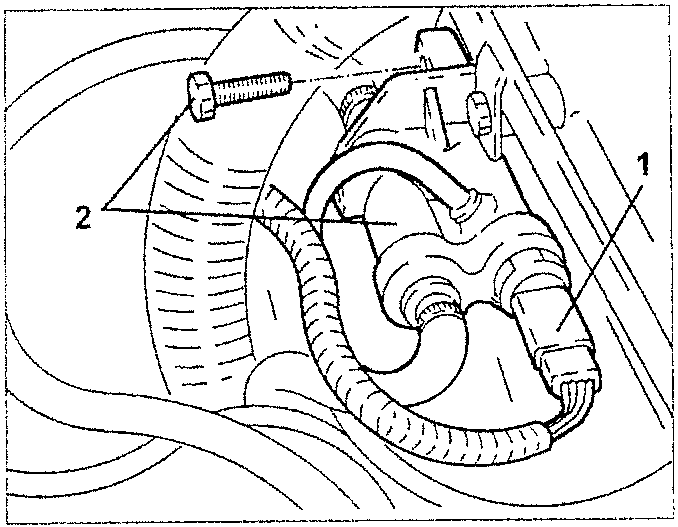

1. Disconnect the electrical connection from the fuel temperature sensor.

2. Slacken the screws and remove the fuel return manifold pipe.
