Alfa Romeo 145/146 Engines, 146 Bodywork and Engine Overhaul Manual (1994-2001)02 · 1.9 JTD engine (1910)
02 · Engine

Cylinder head (page 7 of 8)

Make
Alfa Romeo
Model
145/146 Engines, 146 Bodywork and Engine Overhaul Manual
Year
1994–2001
Section
Operations on the car
1.9 JTD engine (1910)Cylinder head · page 7 of 8

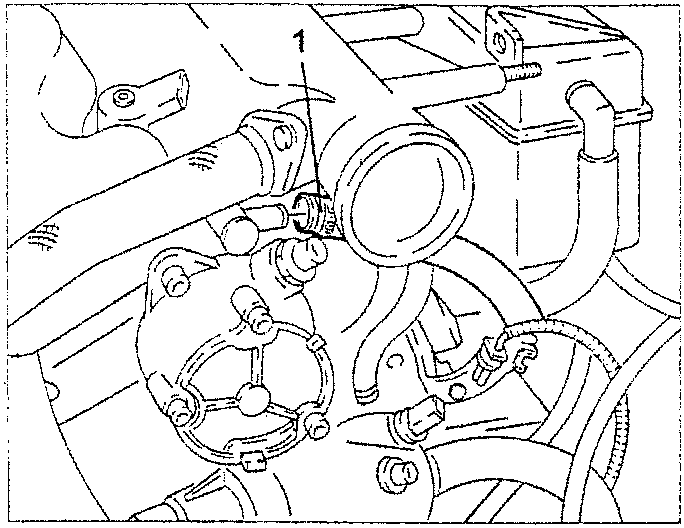

  1. Disconnect the oil vapour recovery pipe from the coupling on the tappet cover.
Engine diagram showing oil vapour recovery pipe disconnection

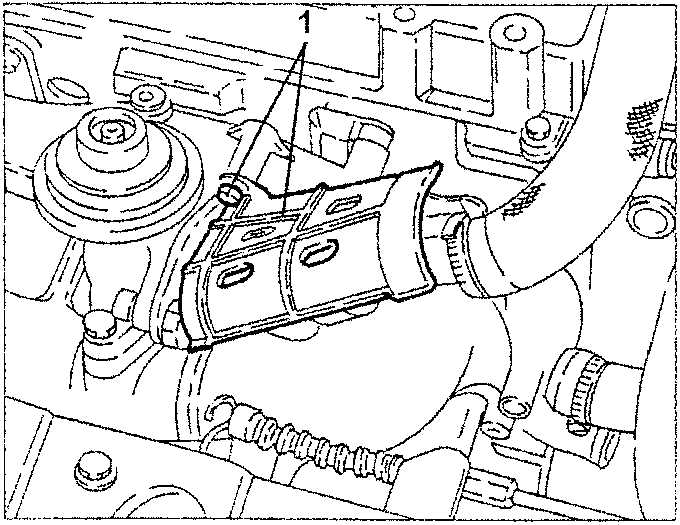

  1. Slacken the fastening screws and remove the E.G.R. valve cover.
Engine diagram showing E.G.R. valve cover removal

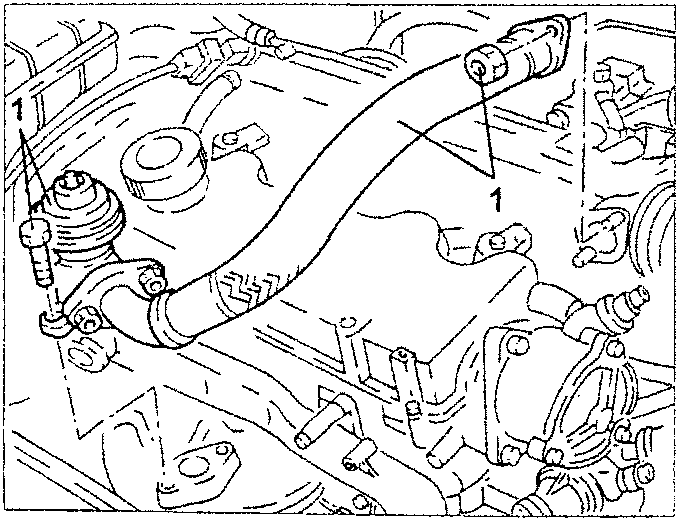

  1. Slacken the nuts and screws, then remove the E.G.R. valve complete with gas re-circulation pipe.
    - Remove the seals.
Engine diagram showing E.G.R. valve removal with gas re-circulation pipe

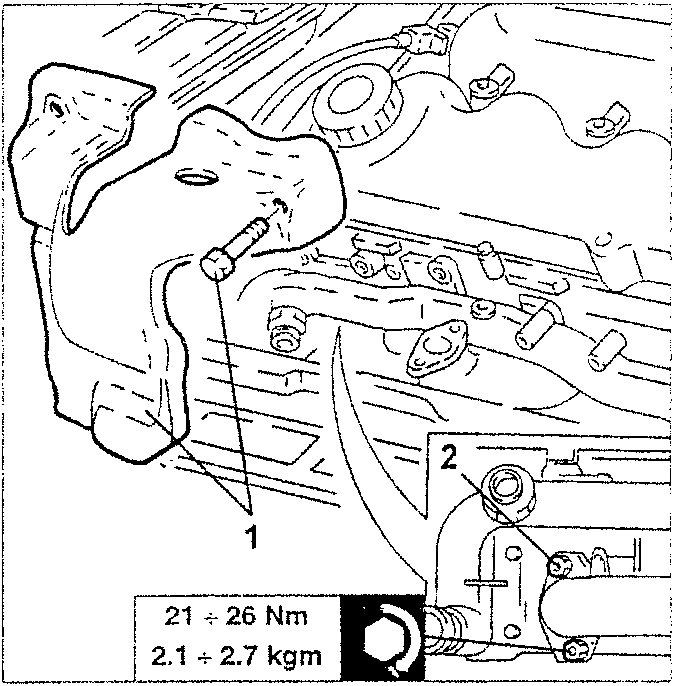

  1. Slacken the fastening screws and remove the heat shield from the exhaust manifold.
    2. Slacken the nuts fastening the exhaust manifold to the cylinder head.
Engine diagram showing heat shield removal and exhaust manifold nuts

21 ÷ 26 Nm
2.1 ÷ 2.7 kgm

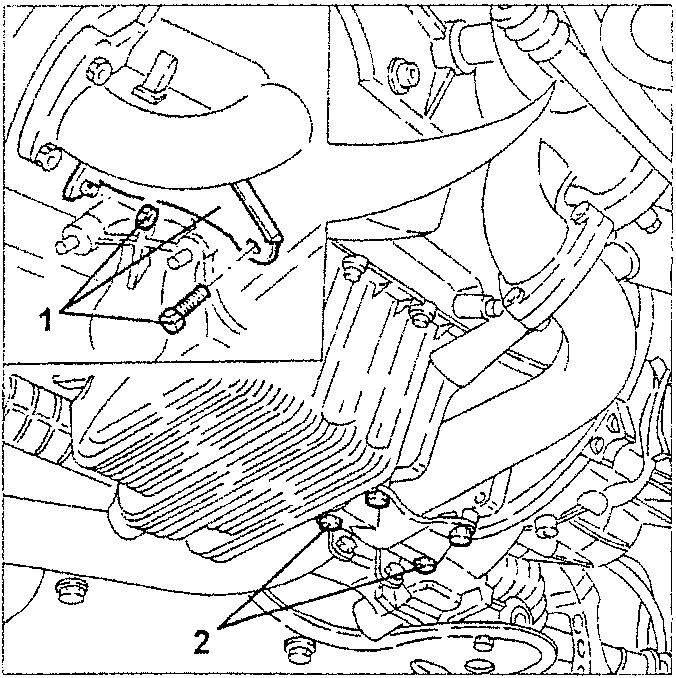

  1. Slacken the fastening screws and nut, then remove the turbocharger support bracket.
    2. Loosen the nuts fastening the reinforcement bracket.
Engine diagram showing turbocharger support bracket and reinforcement bracket removal
