Oil sump (page 2 of 4)

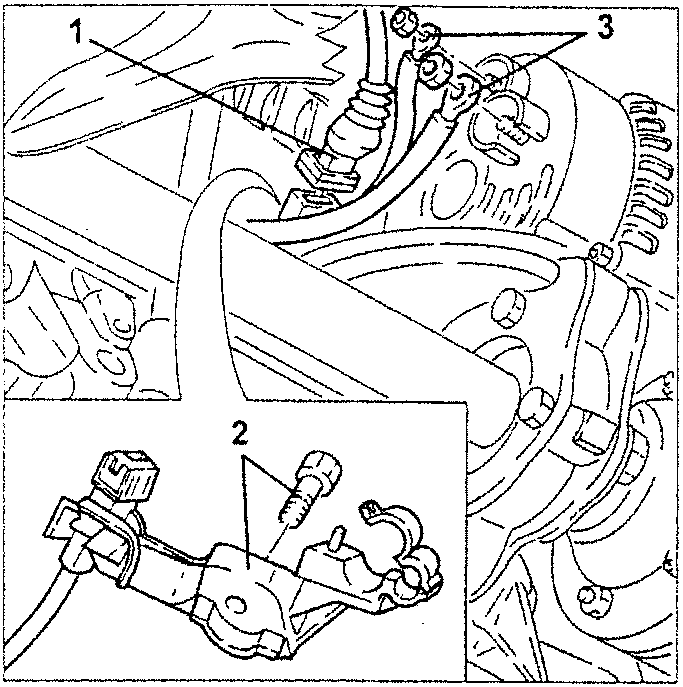

1. Disconnect the electrical connection of the rpm sensor.
2. Slacken the screw and move aside the electric wiring fastening bracket.
3. Disconnect the electrical connections from the alternator.

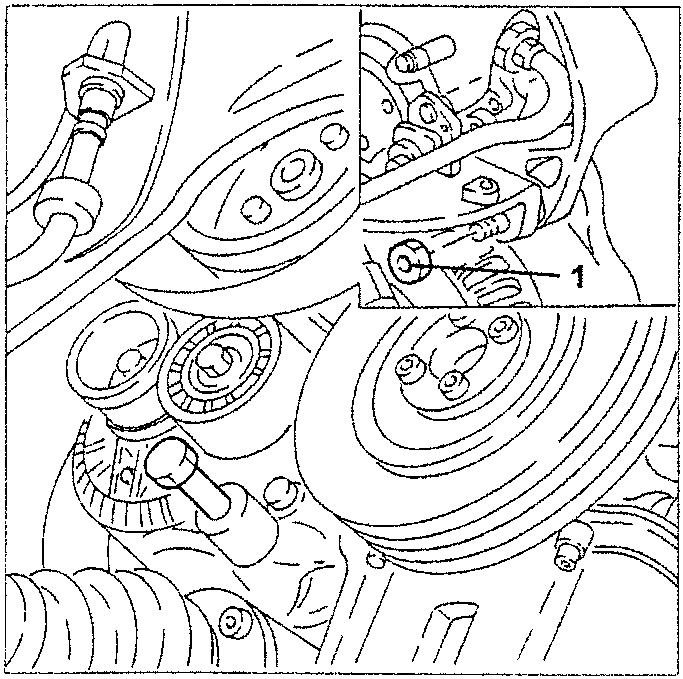

1. Slacken the nuts of the alternator fastening bolts.

• Remove the guide pipe complete with engine oil dipstick.

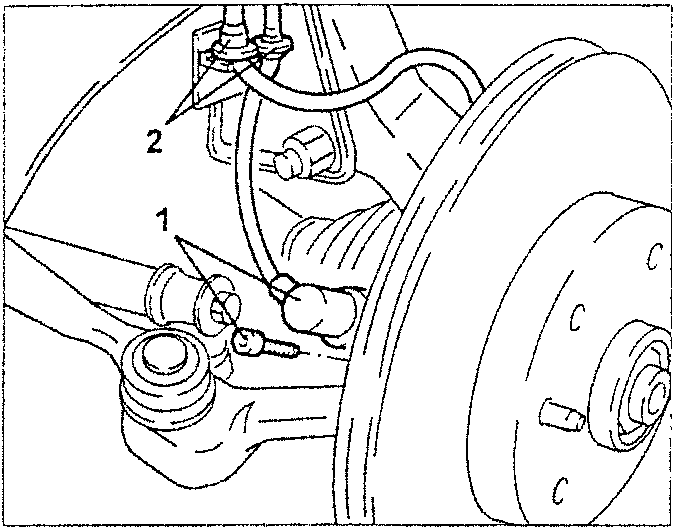

1. Slacken the fastening screw and remove the right A.B.S. sensor from the upright.
2. Release the A.B.S. sensor cable and the right brake caliper hose from the support brackets.

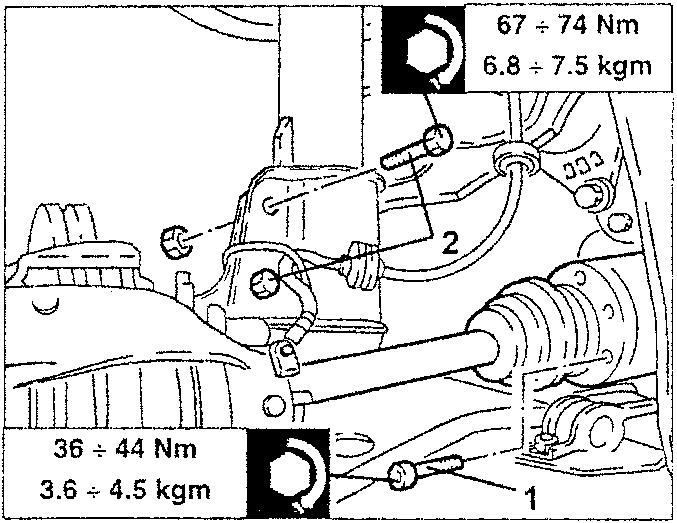

1. Slacken the bolts fastening the right axle shaft to the intermediate axle shaft.
2. Slacken the bolts fastening the shock absorber to the right front wheel upright, then withdraw only the upper bolt.

• Move the right axle shaft away from the intermediate axle shaft as necessary.

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm

36 ÷ 44 Nm
3.6 ÷ 4.5 kgm
