1.9 JTD engine (1910)Oil sump · page 3 of 4

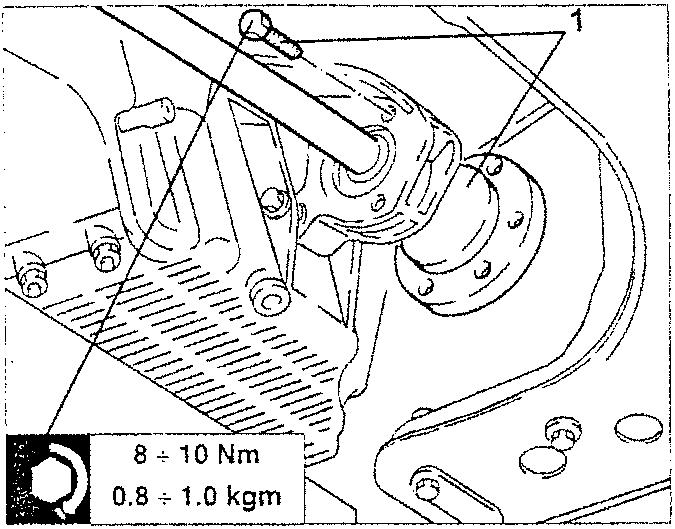

  1. Slacken the screws fastening the intermediate axle shaft to its support and remove it from the differential.
Intermediate axle shaft being loosened with torque specification

8 ÷ 10 Nm
0.8 ÷ 1.0 kgm

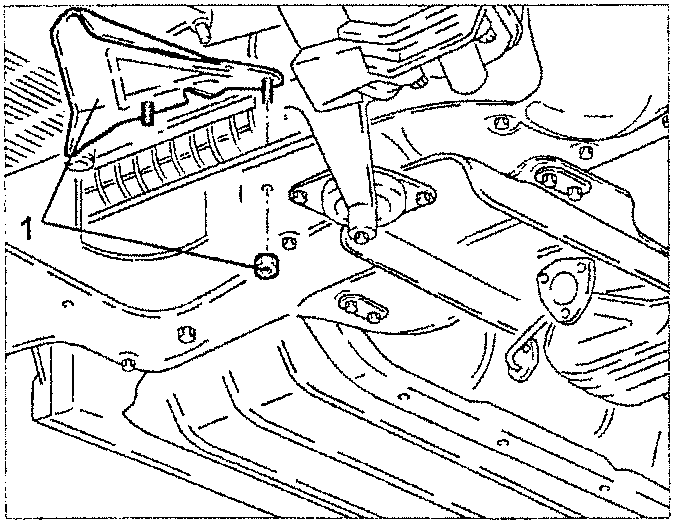

  1. Slacken the fastening nuts and remove the front suspension crossmember guard.
Front suspension crossmember guard being removed
  • Withdraw the screws from the alternator fastening bolts and move it aside.

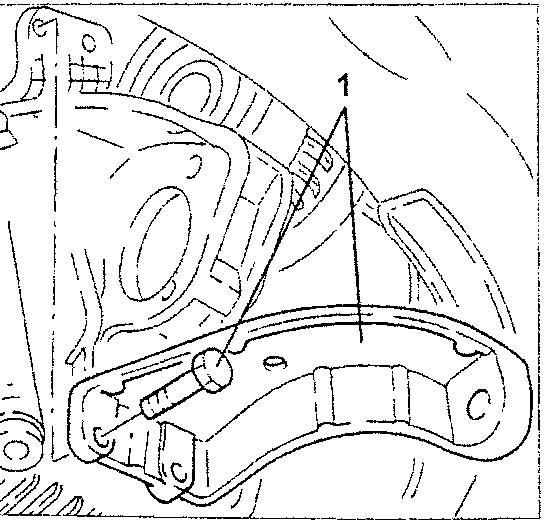

  1. Slacken the fastening screws and remove the rear alternator support bracket.
Rear alternator support bracket being removed

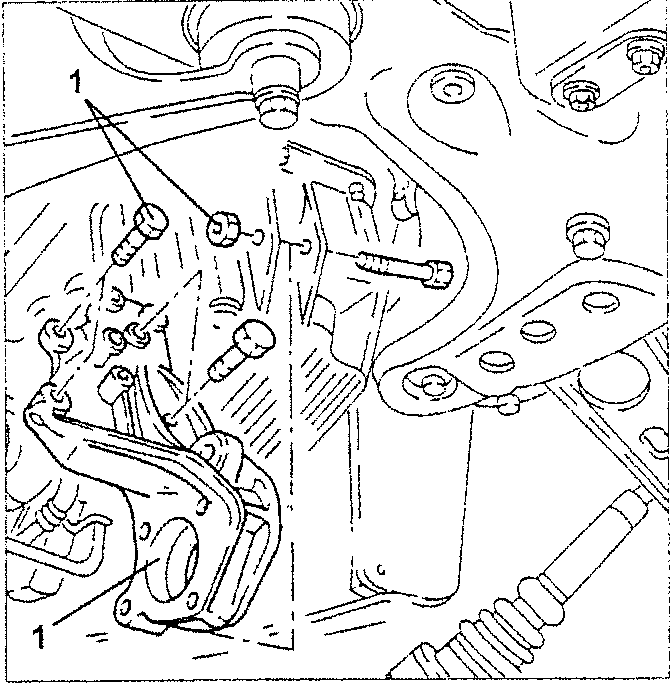

  1. Slacken the screws and bolt, then remove the intermediate axle shaft bearing support.
Intermediate axle shaft bearing support being removed

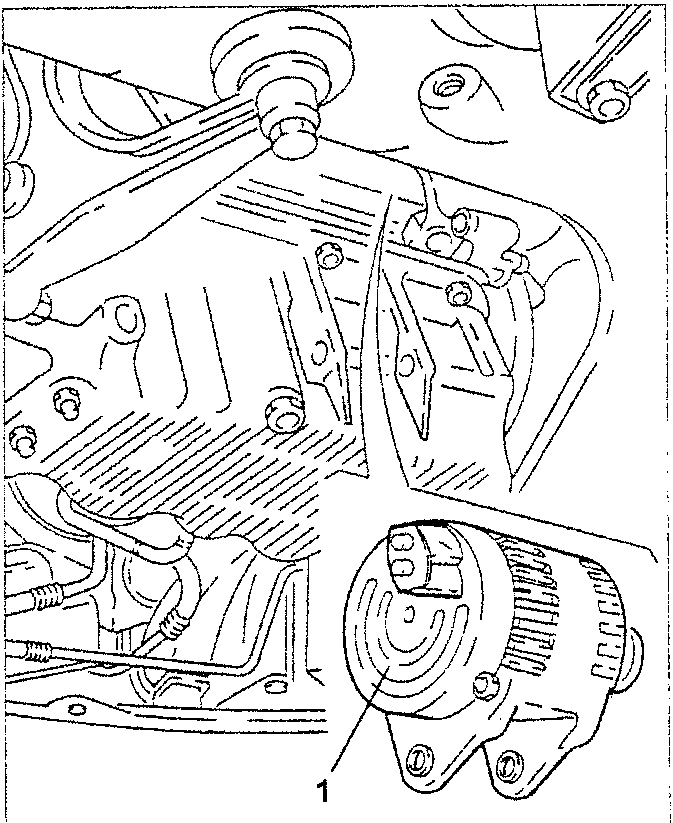

  1. Retrieve the alternator.
Alternator being retrieved from engine bay
