Oil sump (page 4 of 4)

• Slacken the drain cap and drain the engine oil.

NOTE: Collect the engine oil in a suitable container.

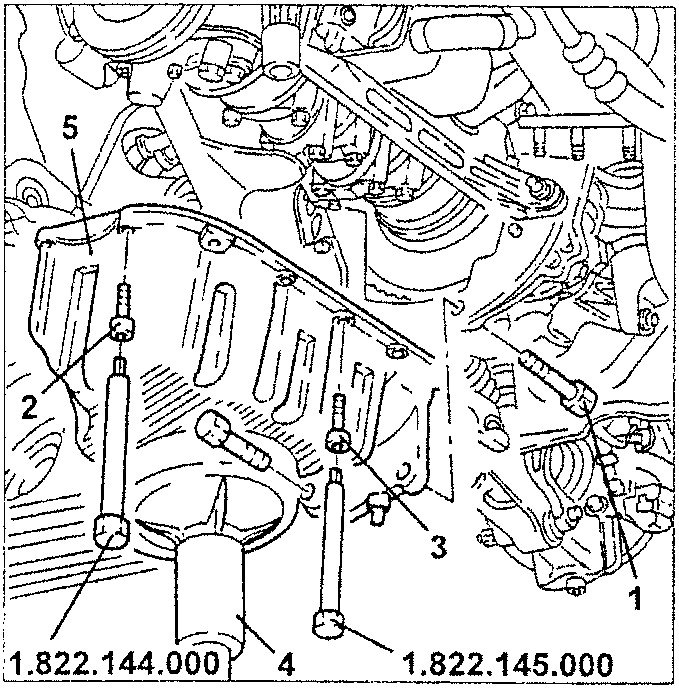

1. Slacken the screws fastening the oil sump to the gearbox.
2. Slacken the front and rear screws fastening the sump to the crankcase using wrench no. 1.822.144.000.
3. Slacken the side screws fastening the sump to the crankcase using wrench no. 1.822.145.000.
4. Place a hydraulic jack under the oil sump.
5. Remove the oil sump.

NOTE: Before removing the sump heat it with a drier to facilitate detachment of the sealant.

1. Part 1
2. Part 2
3. Part 3
4. Part 4
5. Part 5

• Remove all traces of sealant from the oil sump and crankcase contact surfaces.
