Removing the crankshaft

REMOVING THE CRANKSHAFT

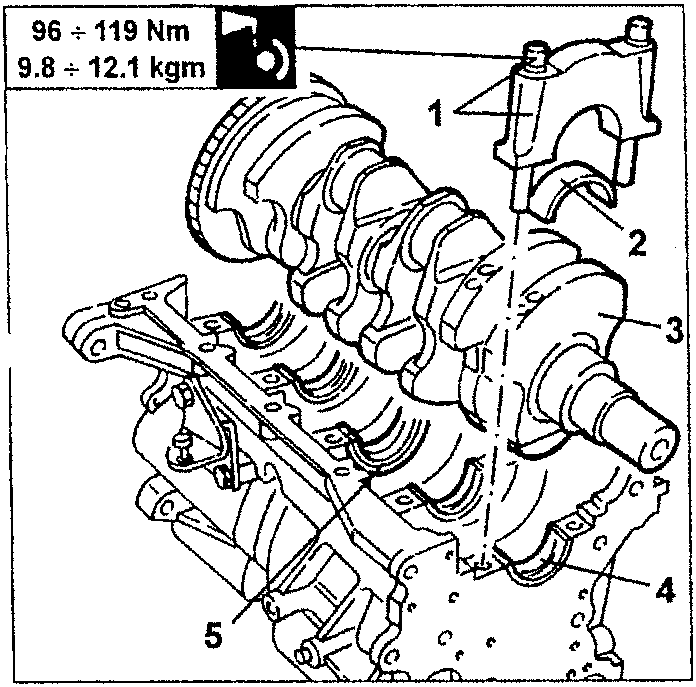

1. Slacken the fastening screws and remove the main bearing caps.
2. Remove the corresponding main half bearings.
3. Remove the crankshaft.
4. Remove the main half bearings from the supports.
5. Remove the two half thrust rings.

96 ÷ 119 Nm
9.8 ÷ 12.1 kgm

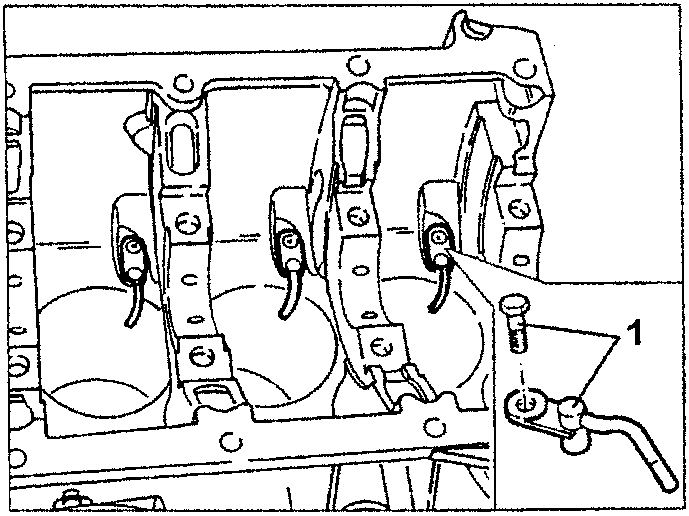

1. If necessary, slacken the fastening screw and remove the oil spray jets for lubricating and cooling the pistons from the crankcase.

CYLINDER HEAD DISASSEMBLY

PRELIMINARY OPERATIONS

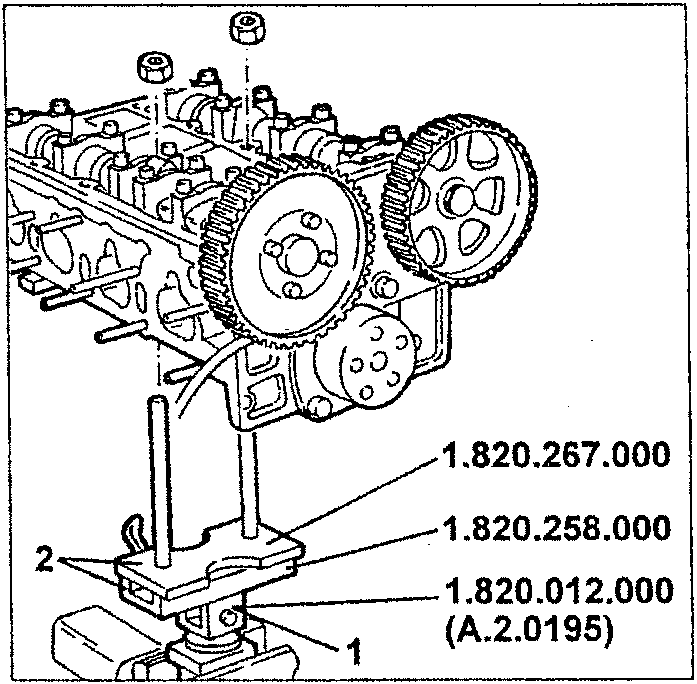

1. Fasten swivel support no. 1.820.012.000 (A.2.0195) in a vice.
2. Fasten tools no. 1.820.258.000 and no. 1.820.267.000 on the swivel support, then fasten the cylinder head on them.

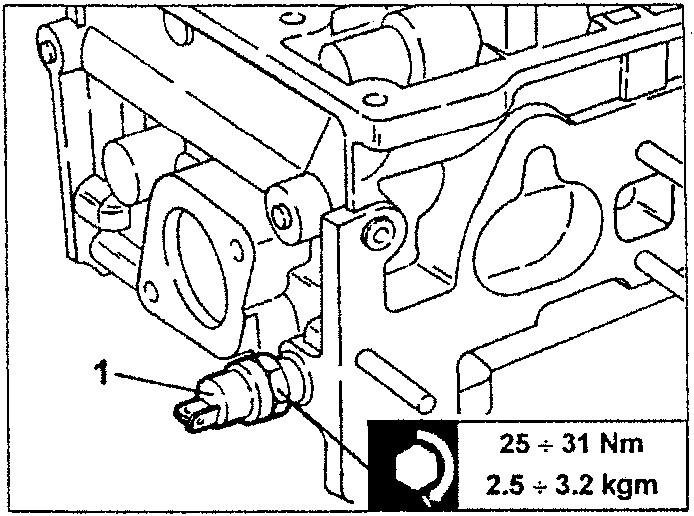

1. Remove the engine coolant temperature gauge transmitter and maximum temperature warning light contact from the cylinder head.

25 ÷ 31 Nm
2.5 ÷ 3.2 kgm
