Removing the water pump

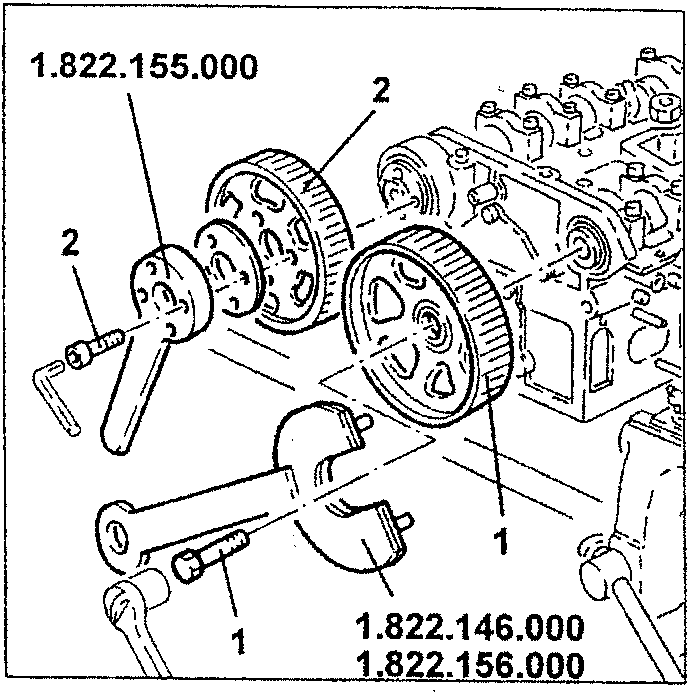

1. Slacken the fastening screw using tools no. 1.822.146.000 and no. 1.822.156.000 and remove the exhaust side camshaft drive pulley.
2. Slacken the fastening screws using tool no. 1.822.155.000 and remove the intake side camshaft drive pulley.

1. 1.822.155.000
2. 1.822.146.000
3. 1.822.156.000

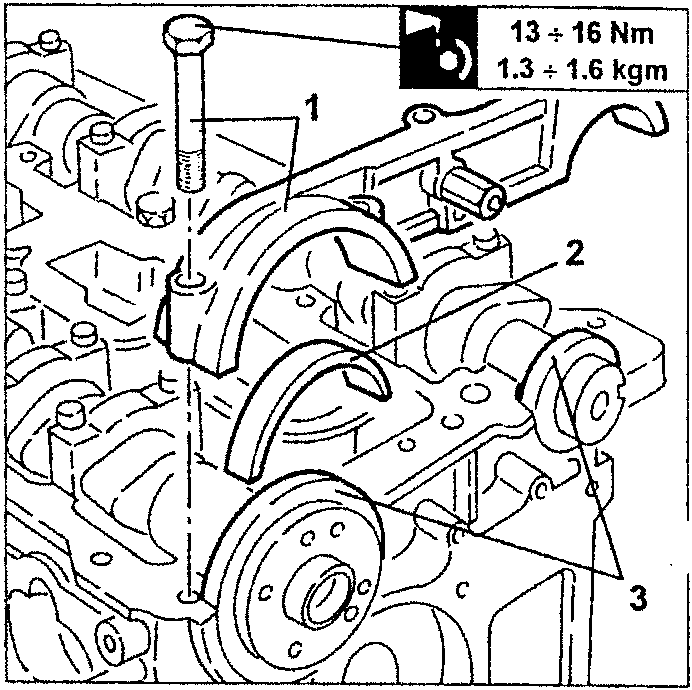

2. Remove the intake side half bearing.
3. Remove the oil seal rings from the camshafts.

13 ÷ 16 Nm
1.3 ÷ 1.6 kgm

REMOVING THE WATER PUMP

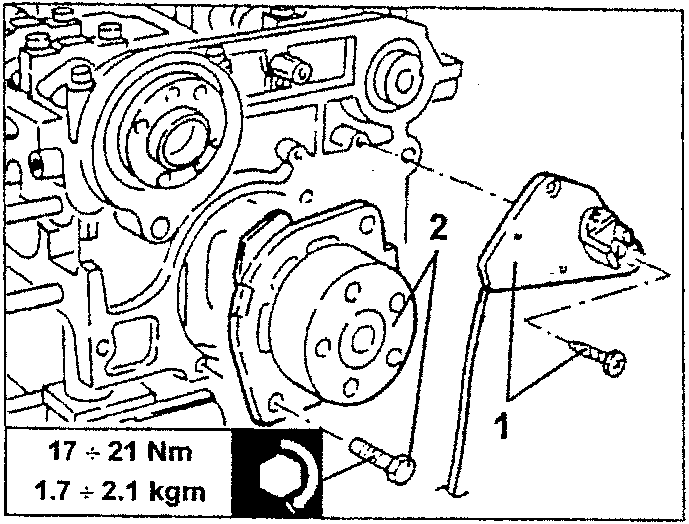

1. Slacken the two fastening screws and remove the timing sensor complete with support.
2. Slacken the two fastening screws and remove the water pump complete with O-ring.

17 ÷ 21 Nm
1.7 ÷ 2.1 kgm

REMOVING THE CAMSHAFTS

1. Slacken the four fastening screws and remove the camshaft front cap.

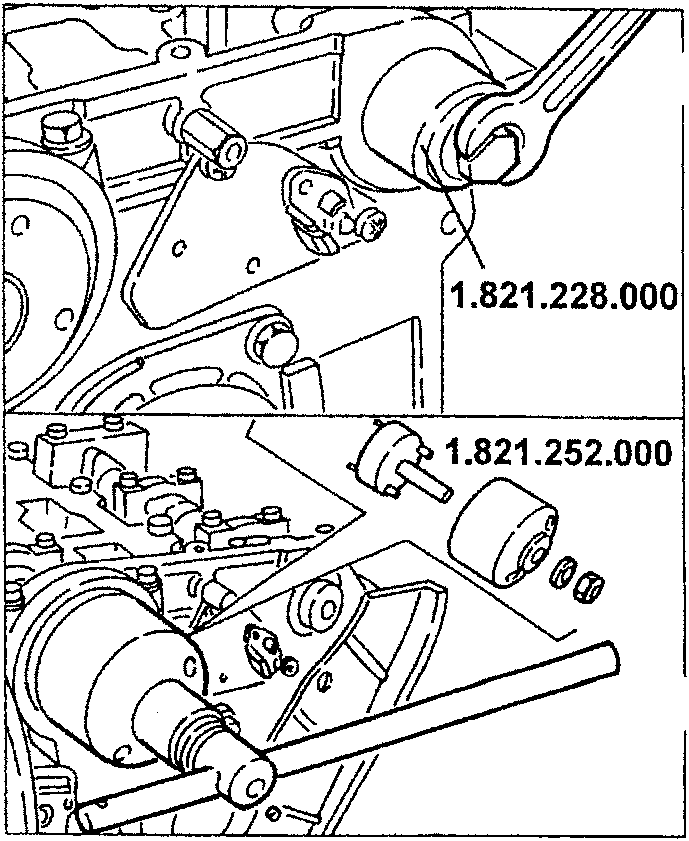

When refitting using tool no. 1.821.228.000 insert the exhaust side oil seal.

Using tool no. 1.821.252.000 insert the intake side oil seal.

1.821.228.000

1.821.252.000
