Flexible recks drawing the sunroof (page 2 of 2)
- Make
- Alfa Romeo
- Model
- 145/146 Factory Service Manual
- Year
- 1994–1999
- Section
- Internal trim
BodyworkFlexible recks drawing the sunroof · page 2 of 2

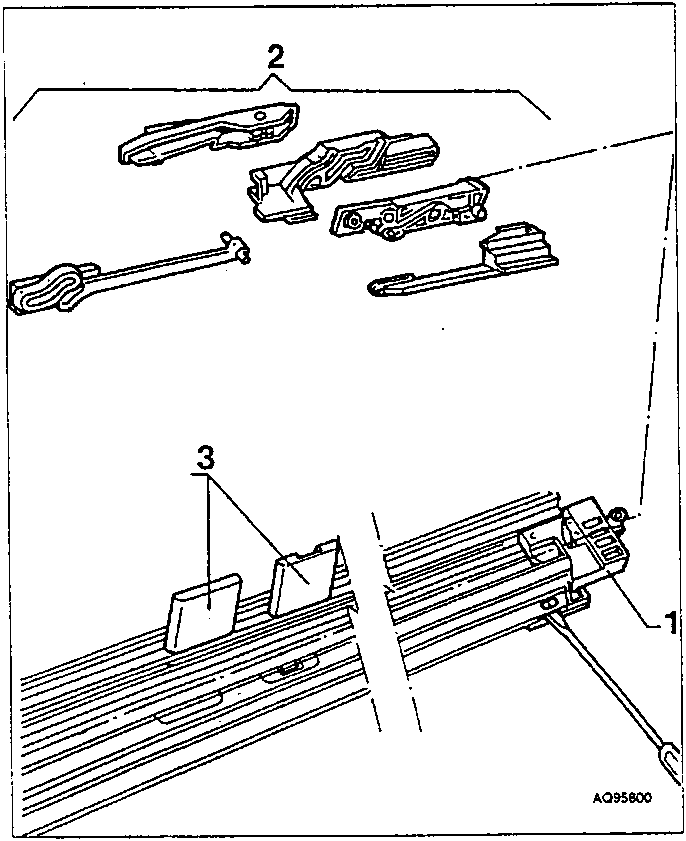

- Using a screwdriver, lever on the rail and release the mechanical stop limit blocking the runner located on the end part of the guide.
- Withdraw the entire quarterlight lever unit from the guide and dis-assemble it.
- Withdraw the mechanical quarterlight references.
