Brake force distributor

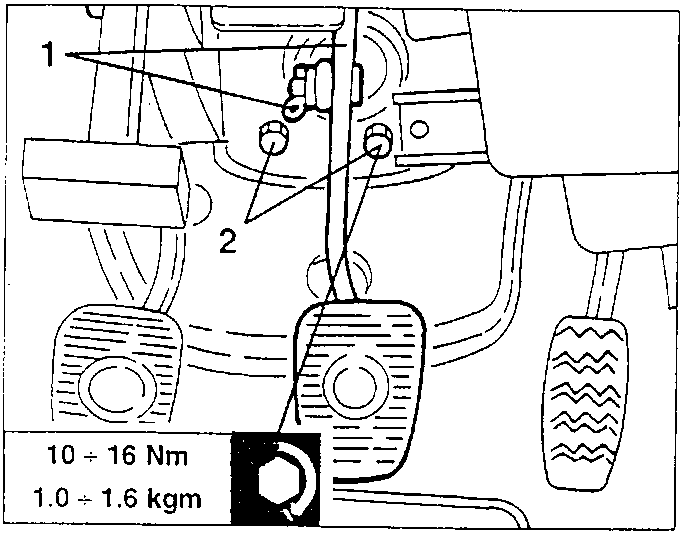

1. Perform the following operations inside the passenger compartment. Remove the brake booster shoe pin from the pedal and remove the pedal.
2. Remove the four brake booster fastening nuts.

10 ÷ 16 Nm
1.0 ÷ 1.6 kgm

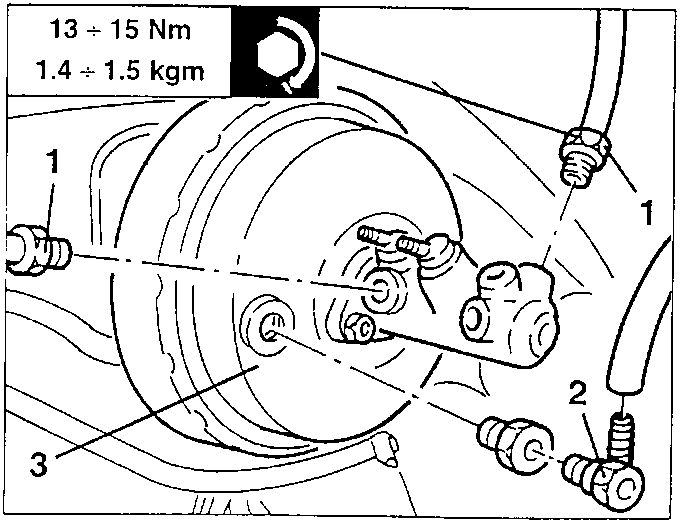

1. Disconnect the two brake pump delivery pipes.
2. Disconnect the brake booster vacuum pipe.
3. Take the pump-brake booster unit.

13 ÷ 15 Nm
1.4 ÷ 1.5 kgm

• If required, split the pump from the brake booster by removing the two fastening nuts.

The pump-brake booster, however, is supplied as a single spare part.

After refitting, bleed the air from the braking circuit (see specific chapter).

BRAKE FORCE DISTRIBUTOR

REMOVAL/REFITTING

• Position the vehicle on a shop jack.
• Empty the brake-clutch reservoir with a suitable syringe.
• Lift the vehicle.
• Remove the rear section of the exhaust pipe (see GROUP 10).

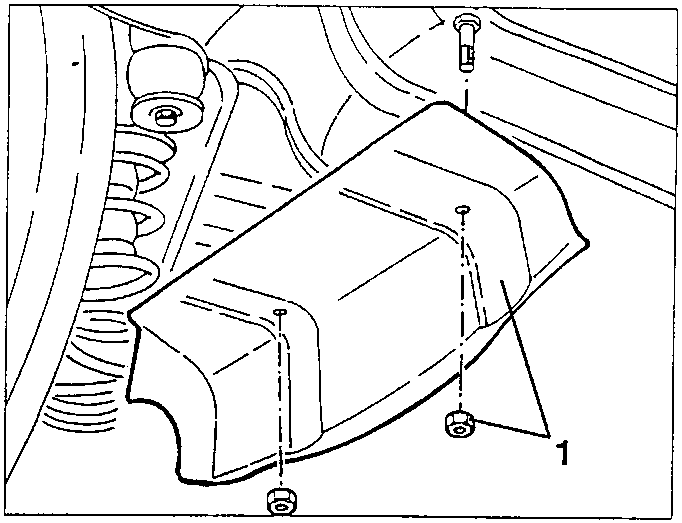

1. Remove the two fastening screws and remove the heat guard from the rear section of the exhaust pipe.

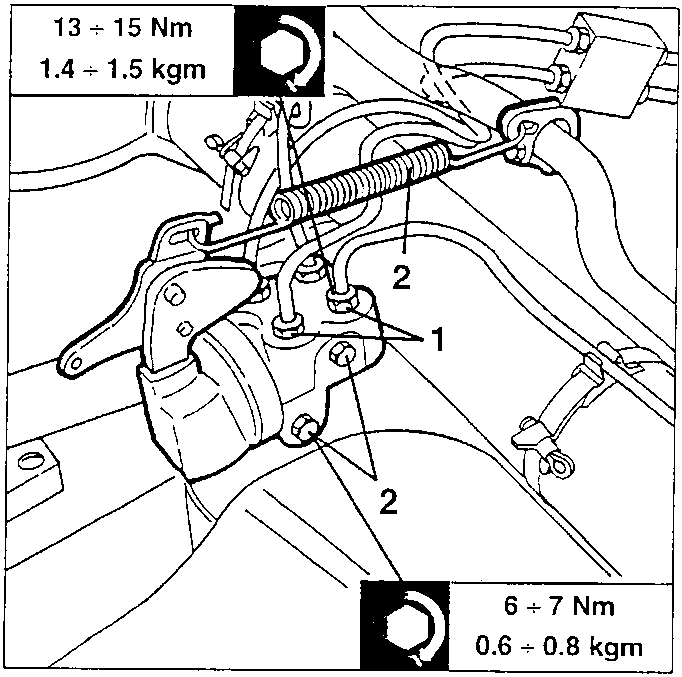

1. Remove the brake force distributor pipe fittings.
2. Remove the two fastening screws and remove the brake force distributor after having disconnected the respective spring.

13 ÷ 15 Nm
1.4 ÷ 1.5 kgm

6 ÷ 7 Nm
0.6 ÷ 0.8 kgm

After refitting, bleed the air from the braking circuit (see specific chapter).
