REMOVING/REFITTING Specific for Turbodiesel engine

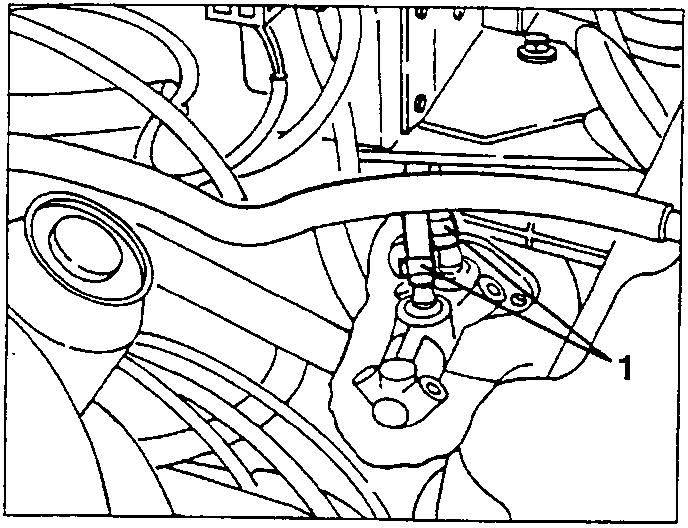

1. Disconnect the two supply hoses from the brake pump.

• Raise the car.

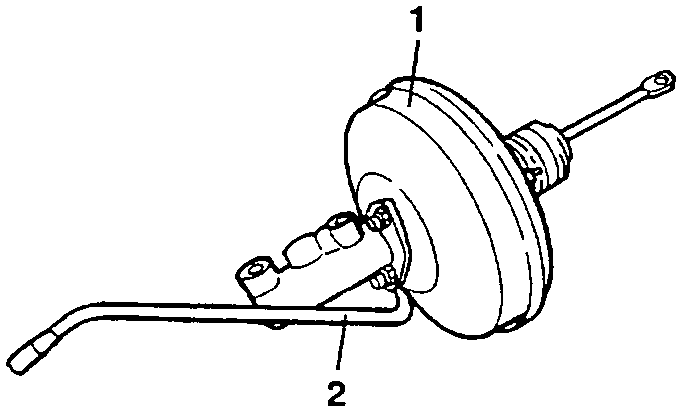

1. Remove the pump - servobrake unit retrieving it from the wheelhouse.
2. Remove the vacuum takeoff pipe from the servo-brake.

• If necessary, separate the pump from the servobrake slackening the two fastening nuts; Spares only supply the pump-servobrake unit complete.

When refitting relieve the air from the braking system (see specific paragraph).

REMOVING/REFITTING Specific for Turbodiesel engine

• Set the car on a lift.
• Disconnect the battery (-) terminal.
• Using a suitable syringe, empty the brake-clutch fluid reservoir.

• Remove the front left wheel.
• Remove the battery.

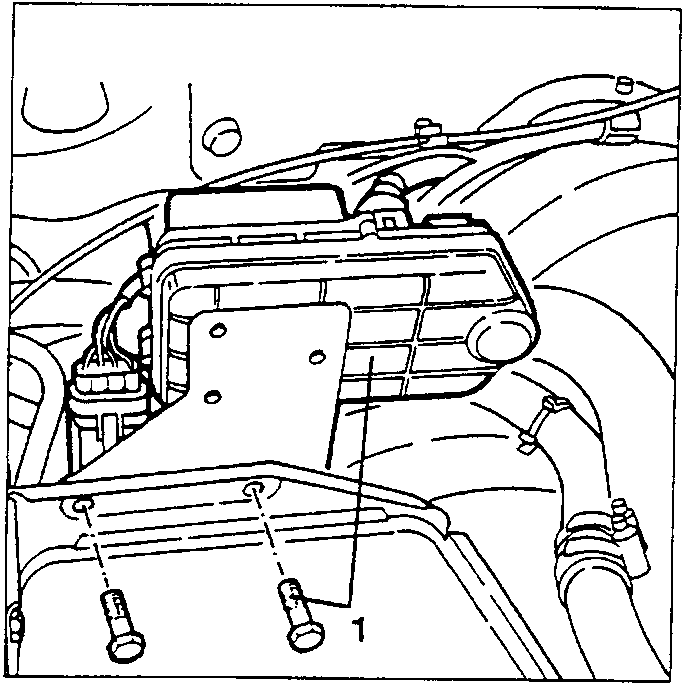

1. Slacken the two fastening screws and move aside the fan relays.

• Remove the duct for draining acid from the battery.

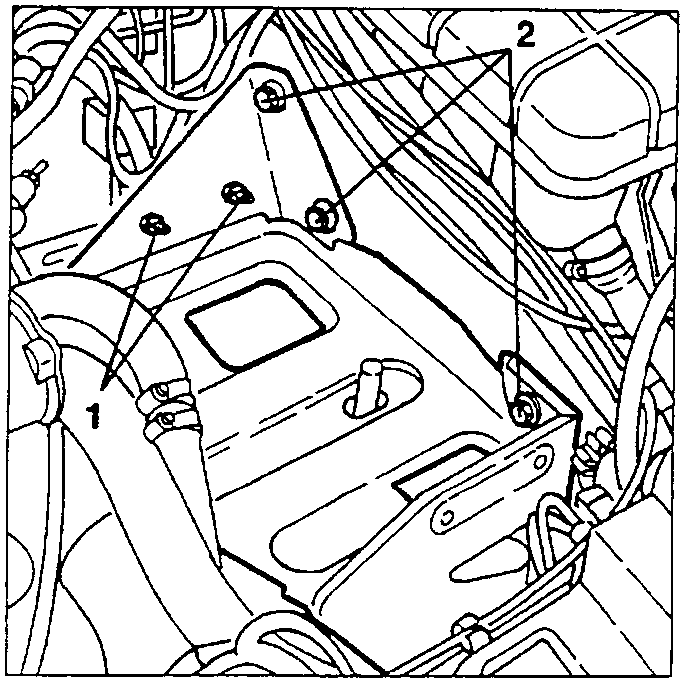

1. Slacken the two nuts fastening the glowplug warming control unit support bracket to the battery support.
2. Slacken the four fastening screws and remove the battery support.
