Stop lights switch

STOP LIGHTS SWITCH

REMOVAL/REFITTING

• Disconnect the battery (-) terminal.

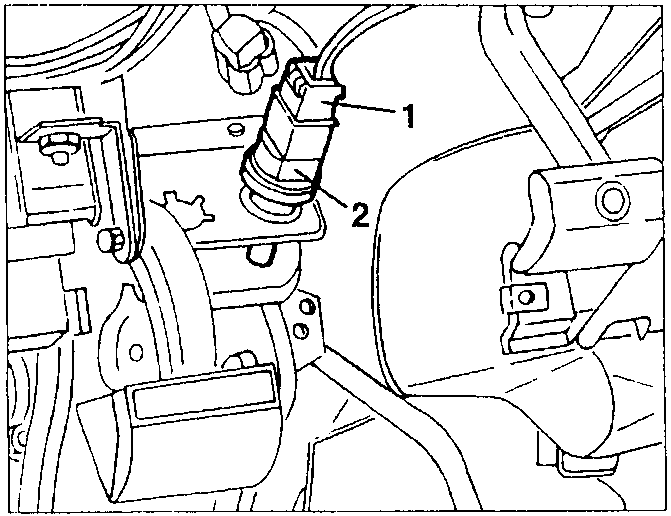

1. Disconnect the electrical connection from the switch.
2. Turn the switch 45° clockwise and remove it.

When refitting, adjust the stroke of the "mobile section" using the special ring nut.

BRAKE-CLUTCH RESERVOIR

(Specific for T. Spark 16V engines)

REMOVING/REFITTING

• Remove the battery.

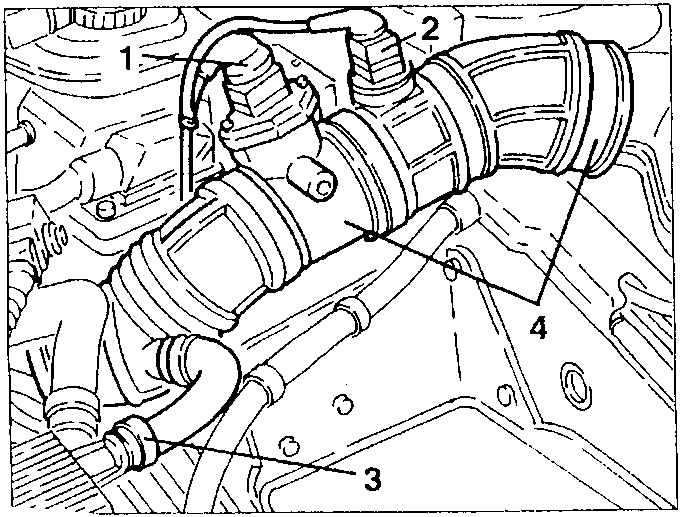

1. Disconnect the electrical connection from the air-flow meter.
2. Disconnect the electrical connection from the intake air temperature sensor.
3. Slacken the fastening clamp and disconnect the oil vapour, recirculation pipe from the cylinder head cover.
4. Slacken the fastening clamps and remove the corrugated sleeve complete.

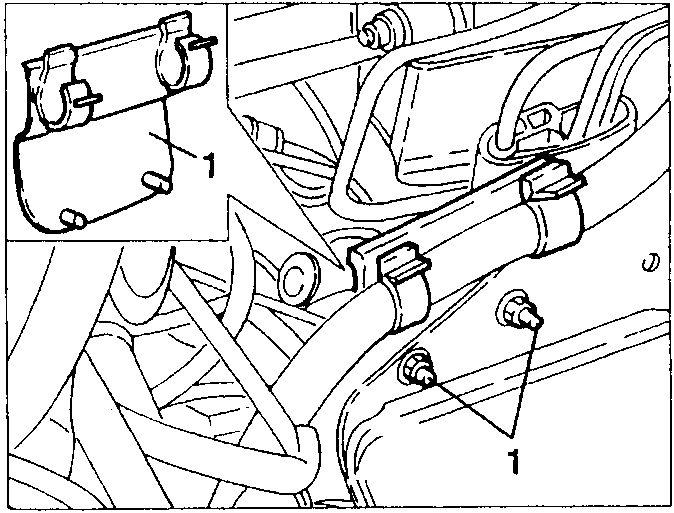

1. Slacken the two fastening nuts and remove the cable support bracket from the battery support.

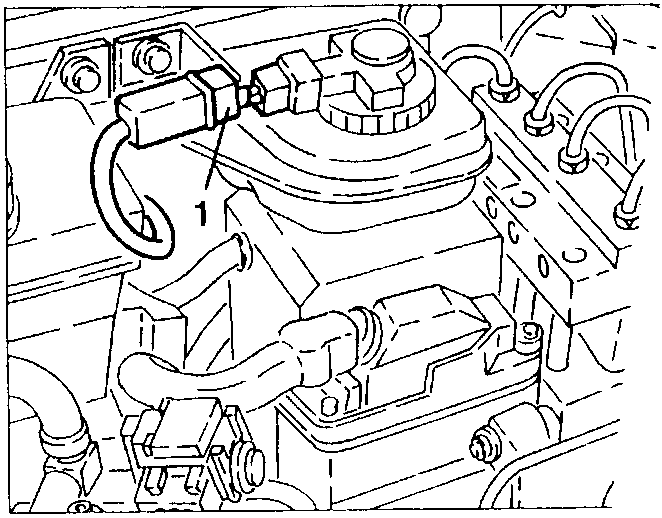

1. Disconnect the electrical connection from the brake-clutch fluid minimum level sensor.

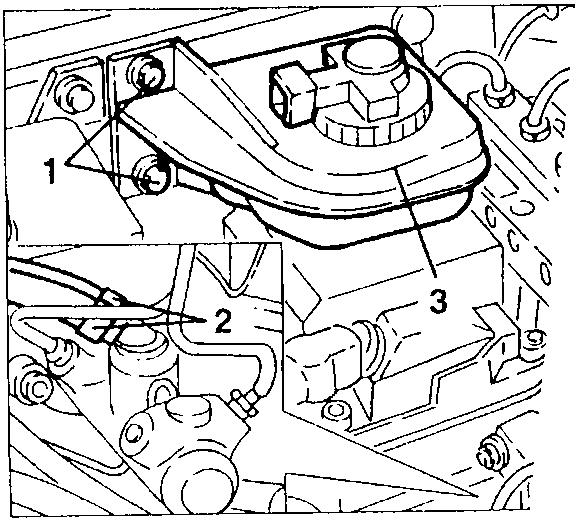

1. Slacken the two screws fastening the brake-clutch fluid reservoir.
2. From the brake pump disconnect the two supply pipes leading from the reservoir.
3. Raise the brake-clutch fluid reservoir just enough to disconnect the clutch system supply pipe and remove it.
