BRAKE/SERVOBRAKE PUMP

REMOVING/REFITTING
Specific for Boxer engines

  • Set the car on a lift.
  • Disconnect the battery (-) terminal.
  • Using a suitable syringe, empty the brake-clutch fluid reservoir.
  • Remove the front left wheel.
  • Using a suitable syringe, empty the power steering tank.
  1. Slacken the two fastening nuts and move aside the power steering tank without disconnecting the pipes.

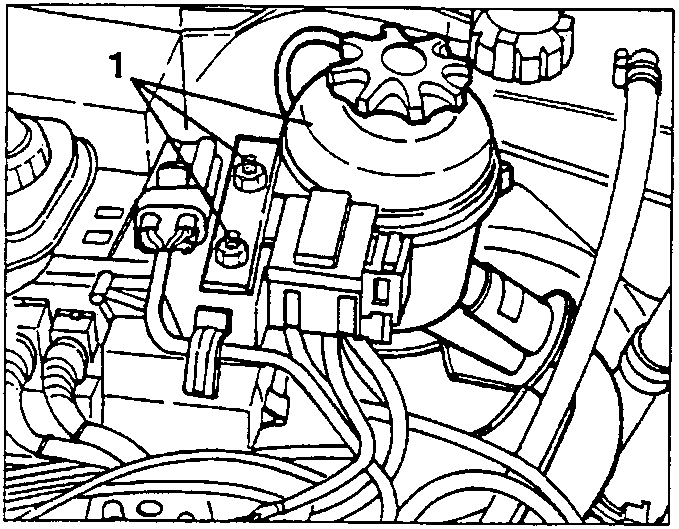

Power steering tank with fastening nuts 1
  1. Release the power steering pipe, the clutch pipe and the air conditioner pipes from the fastening clamps, then slacken the two fastening screws and remove the bracket supporting the clamps.

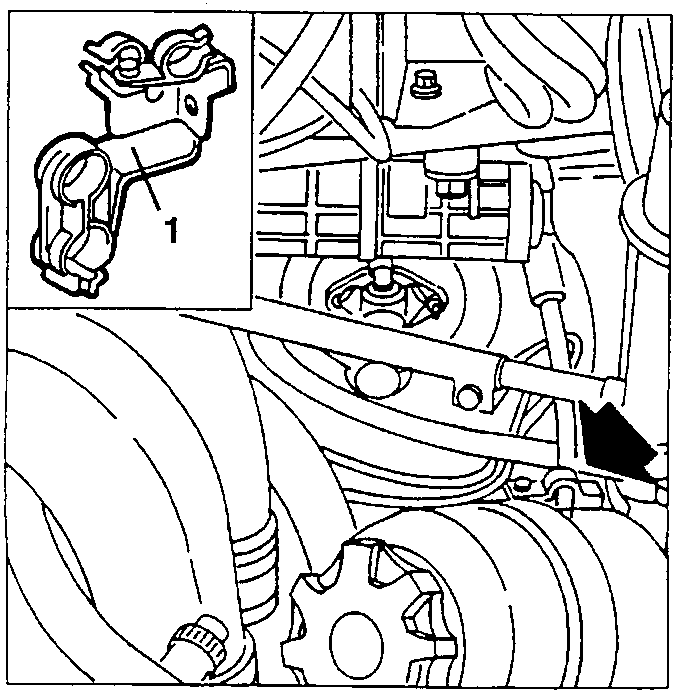

Bracket 1 supporting the pipe clamps
  1. Disconnect the servobrake vacuum takeoff pipe.

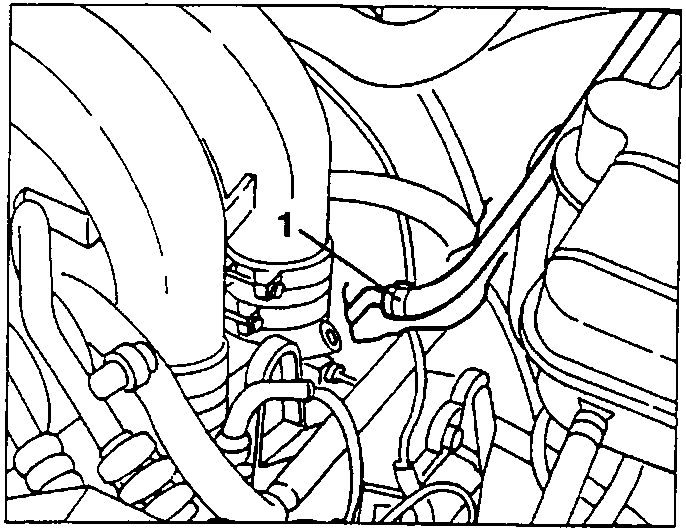

Servobrake vacuum takeoff pipe 1
  1. Disconnect the two fittings of the stiff delivery pipes from the brake pump.

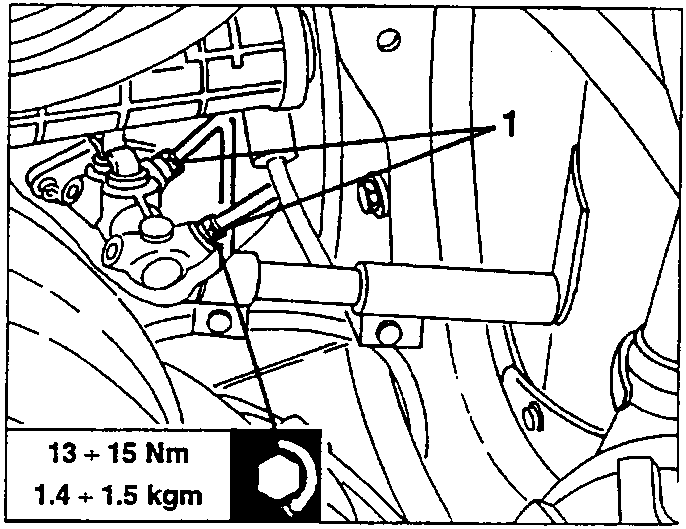

Fittings 1 of the stiff delivery pipes on the brake pump

13 ÷ 15 Nm
1.4 ÷ 1.5 kgm

  1. Working from the passenger compartment, remove the pin fastening the servobrake prod to the pedal, then disconnect them.
  2. Slacken the four servobrake fastening screws.

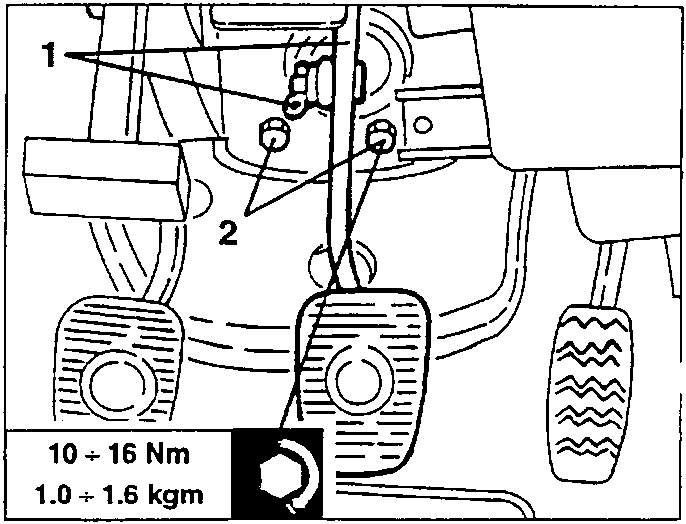

Servobrake pin 1 and fastening screws 2 seen from the passenger compartment

10 ÷ 16 Nm
1.0 ÷ 1.6 kgm
