Brake/servobrake pump (page 2 of 2)

Make

Alfa Romeo

Model

145/146 Factory Service Manual

Year

1994–1999

Section

Hydraulic system

BrakesBrake/servobrake pump · page 2 of 2

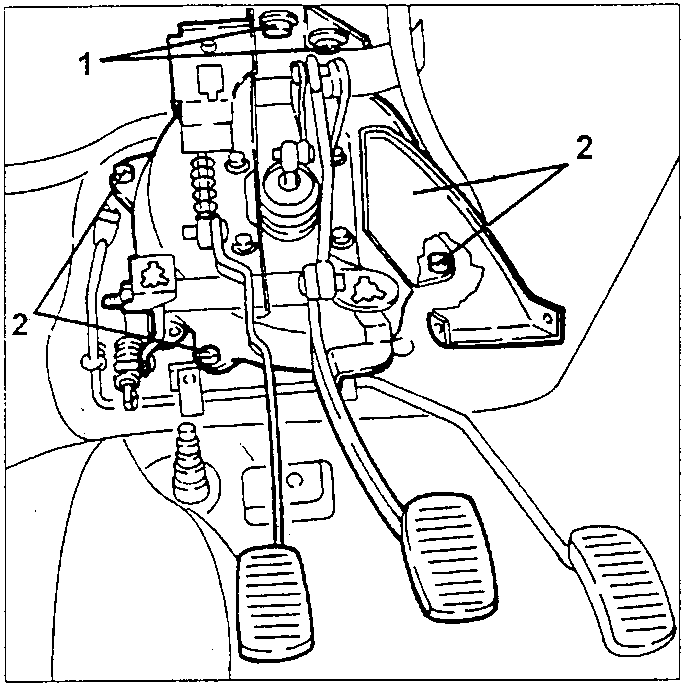

1. Loosen the pedal board fastening screws.
2. Loosen the three brake booster fastening nuts and remove the brake booster, brake pump and pedal board assembly.

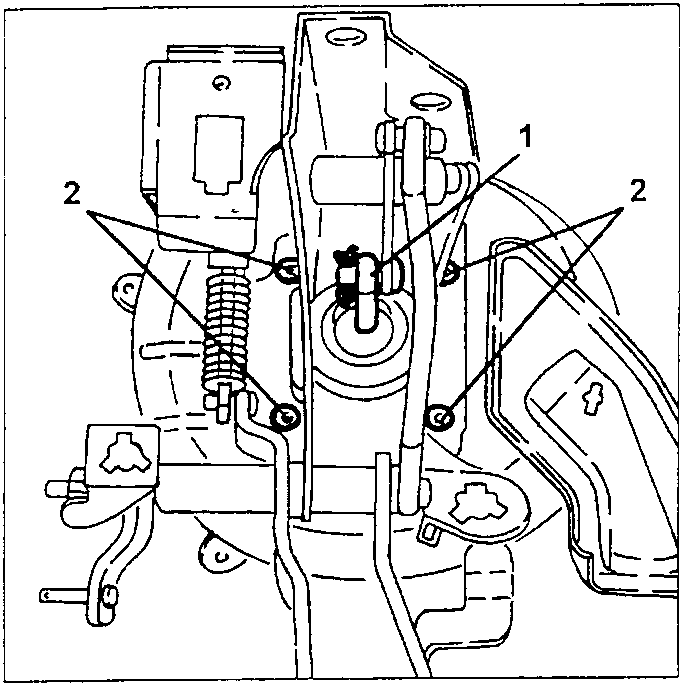

1. Remove the split pin and disconnect the brake pump from the linkage pin.
2. Loosen the four fastening screws and remove the brake pump/booster assembly from the pedal board.

• If required, separate the brake pump from the brake booster by removing the two fastening nuts. Please note that only the brake pump/booster assembly is abailable as a spare part.
