Removing/refitting

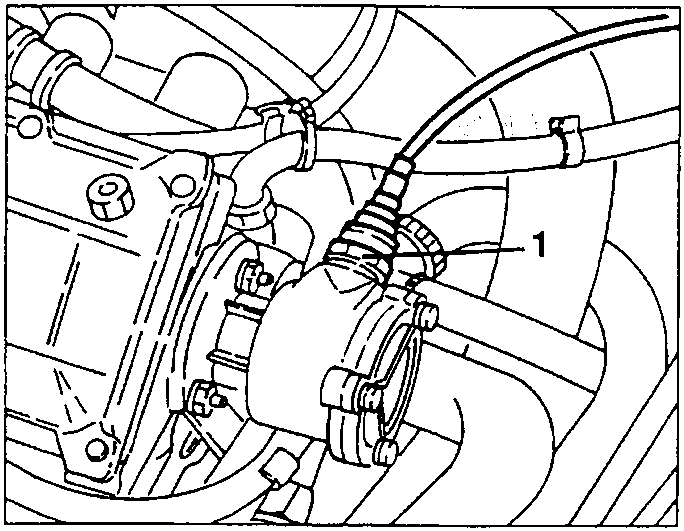

1. Disconnect the vacuum takeoff pipe from the servobrake air pump.

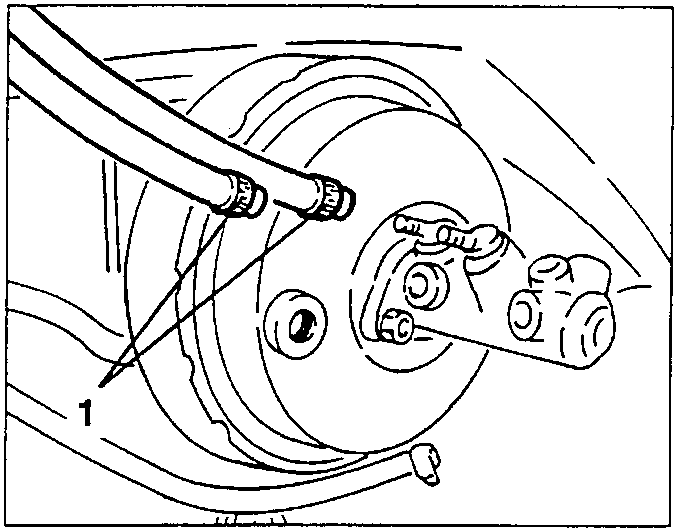

1. Disconnect the two supply hoses from the brake pump.

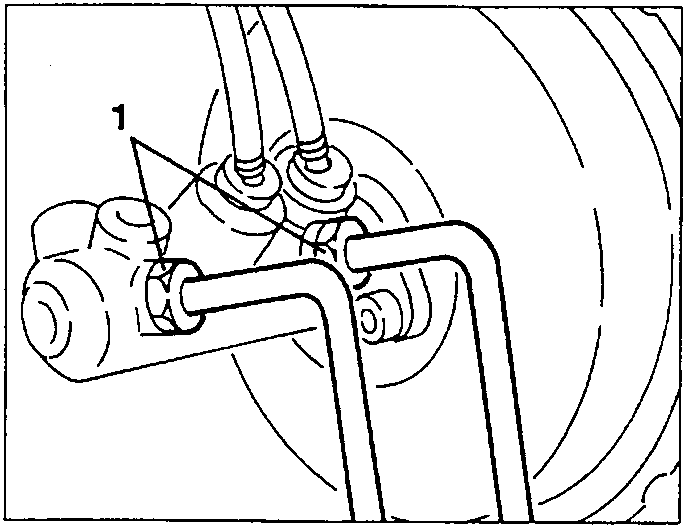

1. Disconnect the two unions of the stiff delivery pipes from the brake pump.

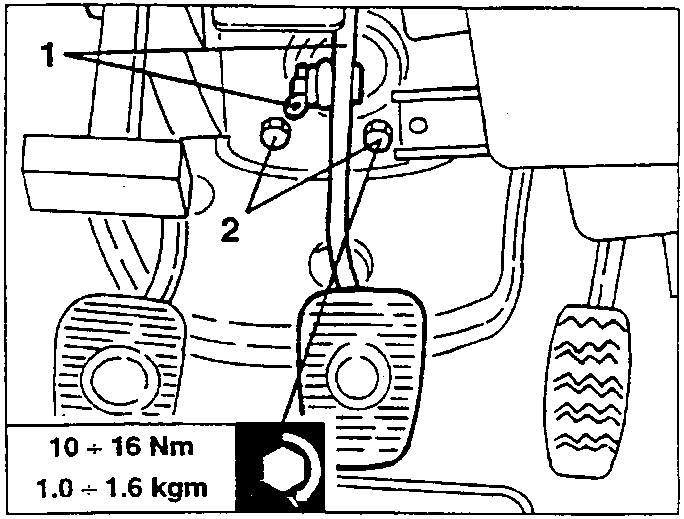

1. Working from the passenger compartment, remove the pin fastening the servobrake prod to the pedal, then disconnect them.
   2. Slacken the four servobrake fastening nuts.

10 ÷ 16 Nm
1.0 ÷ 1.6 kgm

• Raise the car.

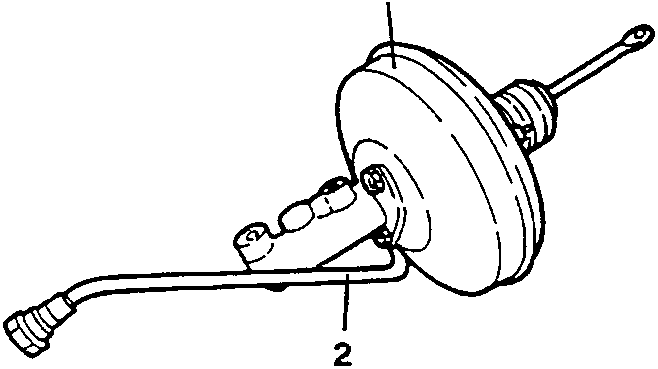

  1. Remove the pump-servobrake unit retrieving it from the wheelhouse.
  2. Remove the the vacuum takeoff pipe from the servobrake.
  - If necessary, separate the pump from the servobrake slackening the two fastening nuts; Spares only supply the pump-servobrake unit complete.

When refitting relieve the air from the braking system (see specific paragraph).

REMOVING/REFITTING

Specific for T. Spark 16V engine

• Disconnect the battery (-) terminal.
• Remove the hydraulic aggregate of the A.B.S. system complete with its support (see specific paragraph).
