Brake pedal ('98 models)

BRAKE PEDAL ('98 MODELS)

REMOVAL/REFITTING

• Make sure the ignition key is at STOP and disconnect the (-) battery terminal.
• Remove the steering column (see ASSEMBLY 41).

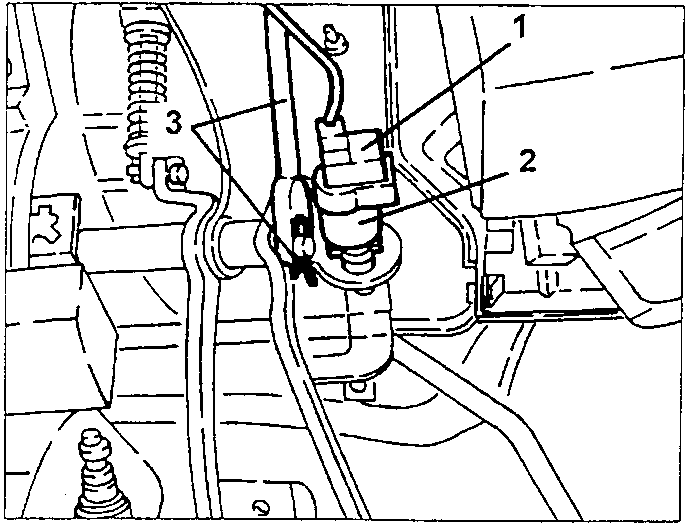

1. From inside the passenger compartment, disconnect the brake light switch electrical connection.
2. Remove the brake light switch by turning it clockwise by 45°.
3. Remove the split pin and disconnect the brake pedal tie-rod.

• Loosen the two valve bracket fastening screws.
• Remove the clutch pedal (see specific paragraph).

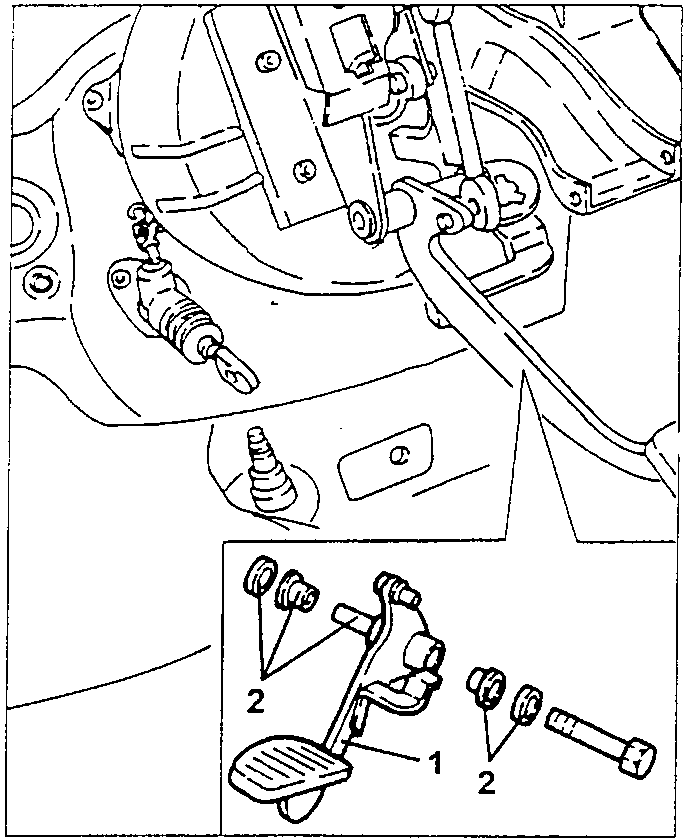

1. Remove the screw and remove the brake pedal.
2. At the bench, remove the plastic caps and the brake pedal bushing, if required.
